Firestone 2892 Ride-Rite Wireless Rear Air Helper Spring Kit for 22-25 Toyota

Vehicle Fitment

• 2022-2025 Toyota Tundra (All Trims, 2WD/4WD)

Features

• Wireless control system for on-the-fly air pressure adjustments
• No-drill installation compatible with in-bed hitches
• Standard-duty compressor with 100 PSI maximum pressure
• 17-second fill rate from 0-30 PSI
• 5000 lbs. load-leveling capacity
• Live system feedback with two memory presets
• 5-100 PSI adjustable air pressure range
• Built-in bump stops to prevent over-compression

Specifications

• Type: Rear Air Helper Spring Kit
• Compressor: Standard Duty
• Max Pressure: 100 PSI
• Fill Rate: 17 seconds (0-30 PSI)
• Air Pressure Range: 5-100 PSI
• Load Capacity: 5000 lbs. (do not exceed GVWR)
• Duty Cycle: 9% at 100 PSI
• Compressor Draw: 13 amps max
• CFM at 100 PSI: 0.32
• Fitment: 2WD/4WD, All Trims

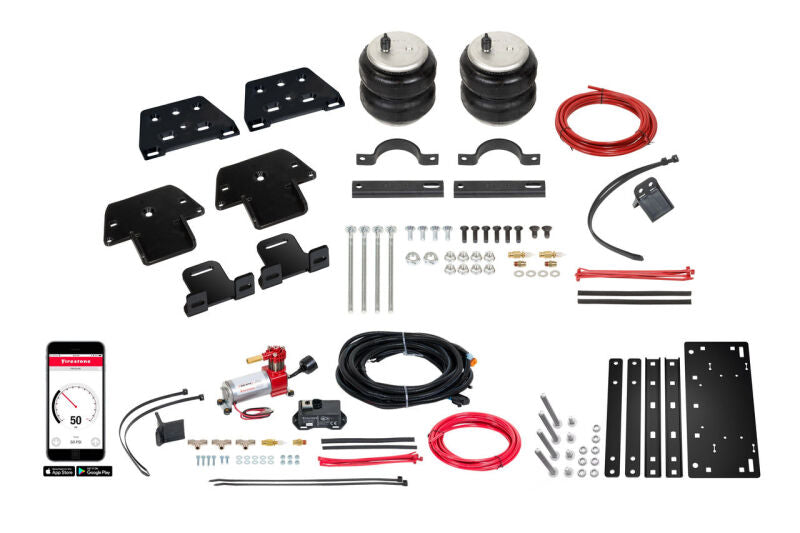

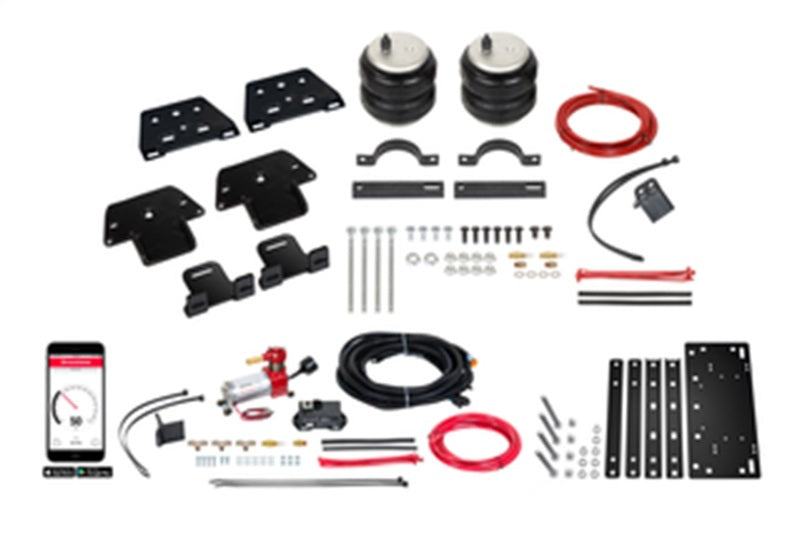

Included Components

• 1x Ride-Rite Air Helper Springs
• 1x Standard Duty Compressor
• 1x Wireless Control System
• 1x No-Drill Mounting Plate
• 1x Air Line Assembly
• 1x Hardware Kit
• 1x Installation Instructions

Product Description

The Firestone Ride-Rite 2892 All-In-One Wireless Rear Air Helper Spring Kit is engineered to enhance the load-carrying capacity and stability of your 2022-2025 Toyota Tundra. This comprehensive kit includes air helper springs, a standard-duty compressor, and a wireless control system, all designed for easy, no-drill installation. The wireless control allows for convenient on-the-fly air pressure adjustments, ensuring optimal ride quality regardless of load conditions.

With a 5000 lbs. load-leveling capacity and a 100 PSI maximum pressure rating, this kit is built to handle heavy-duty applications. The standard-duty compressor features a 17-second fill rate from 0-30 PSI and operates at a 9% duty cycle at 100 PSI, drawing a maximum of 13 amps. The system also offers live feedback and two memory presets, providing real-time monitoring and easy adjustment of air pressure levels.

Installation is straightforward, thanks to the no-drill mounting plate and compatibility with in-bed hitches. The kit is designed to fit all trims of the 2022-2025 Toyota Tundra, both 2WD and 4WD configurations. Whether you're towing heavy loads or carrying substantial payloads, the Firestone Ride-Rite 2892 kit ensures a level ride and improved vehicle handling.
