FASS TSC13180F140G Titanium Fuel Lift Pump 140GPH for 17-19 GM Duramax L5P 6.6L

Vehicle Fitment

• 2017-2019 Chevrolet Silverado 2500 HD (All Trims, 6.6L L5P Duramax)
• 2017-2019 Chevrolet Silverado 3500 HD (All Trims, 6.6L L5P Duramax)
• 2017-2019 GMC Sierra 2500 HD (All Trims, 6.6L L5P Duramax)
• 2017-2019 GMC Sierra 3500 HD (All Trims, 6.6L L5P Duramax)

Fitment Notes

• Requires aftermarket tuning with DTC deletion capability -- MIL will trigger without compatible tune
• Confirm DTC deletion support with calibration supplier before installing
• Does not fit 2020+ L5P -- see FASS DIFSL5P2001 for 2020-2024

Features

• FASS Whisper Technology (FWT) -- ultra-quiet operation at full flow
• Performance Radius Cuts (PRC) -- eliminates air/vapor reintroduction
• Mass Flow Return (MFR) -- continuously polishes and recirculates fuel
• 2-micron filtration -- removes dirt, water, air, and vapor
• 140 GPH at 25 PSI -- supports up to 500 HP
• Less than 2% motor failure rate
• 1,000,000-mile motor / 30,000-mile filter life
• Bolt-on mount -- no drilling or welding required
• Machined steel mounting brackets
• Limited lifetime warranty (registration required within 30 days)

Specifications

• Part Number: TSC13180F140G
• Flow Rate: 140 GPH
• Fuel Pressure: 25 PSI
• Filtration Rating: 2 microns
• Motor Life Rating: 1,000,000 miles
• Filter Interval: 30,000 miles
• Application: 2017-2019 GM L5P Duramax 6.6L
• Finish: Matte black with white labeling
• Tuning Required: Yes -- aftermarket tune with DTC deletion

Included Components

• 1x Titanium Signature Series fuel lift pump assembly
• 1x Machined steel bolt-on mounting bracket
• 1x Installation hardware kit
• 1x Fuel filter (pre-installed)
• 1x Water separator (pre-installed)

Product Description

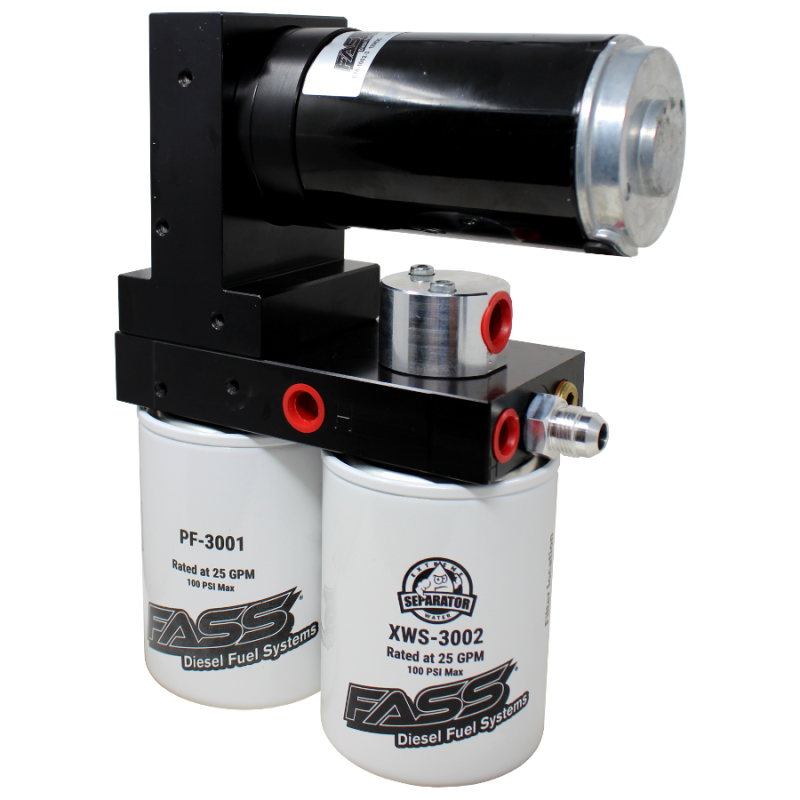

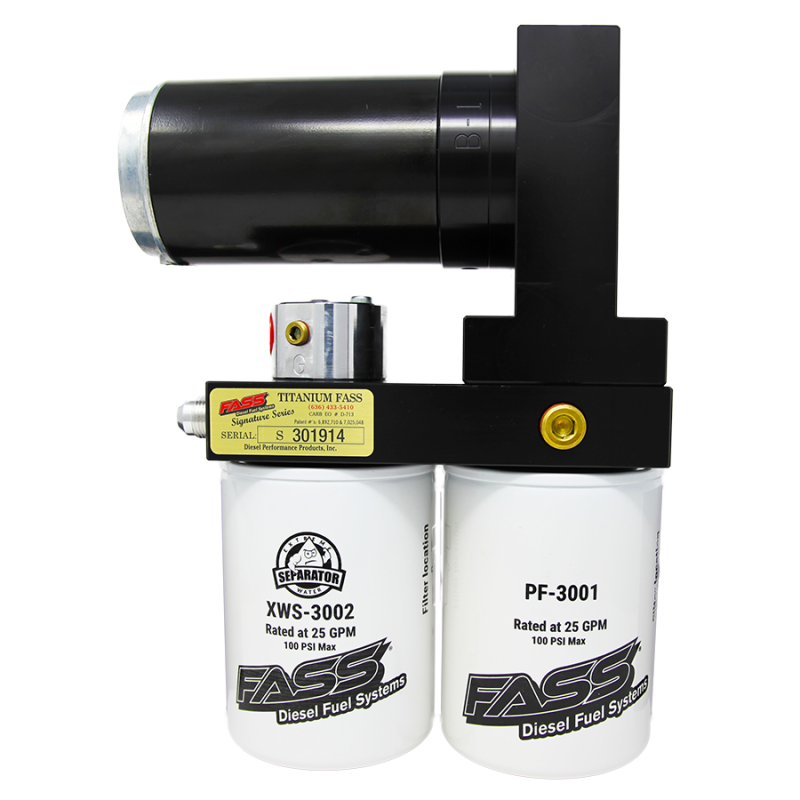

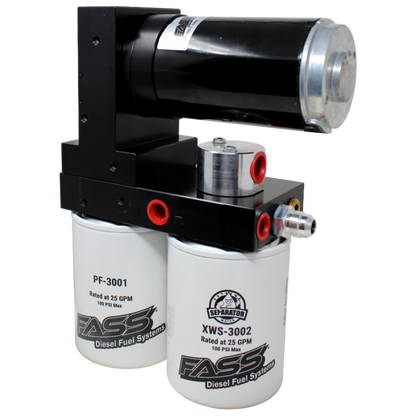

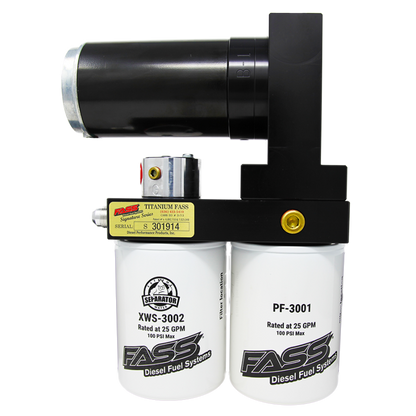

The FASS TSC13180F140G Titanium Signature Series is a fuel air separation and lift pump system built specifically for the 2017-2019 GM Duramax 6.6L L5P. While the L5P came from the factory with a lift pump -- unlike earlier Duramax generations -- the stock unit falls short for tuned applications. This FASS system delivers 140 GPH of clean, deaerated fuel at 25 PSI, with proprietary Performance Radius Cuts machining and Mass Flow Return Technology to protect the HP4 injection pump and injectors from air, vapor, and contaminants.

The bolt-on bracket system installs in approximately one hour with no drilling or welding required. This system is designed for trucks with aftermarket tuning capable of deleting specific diagnostic codes -- a MIL will be triggered without a compatible tune. Confirm DTC deletion capability with your calibration supplier before ordering. Once properly installed and tuned, the TSC13180F140G provides the flow and filtration needed to support aggressive power builds up to approximately 500 horsepower.
