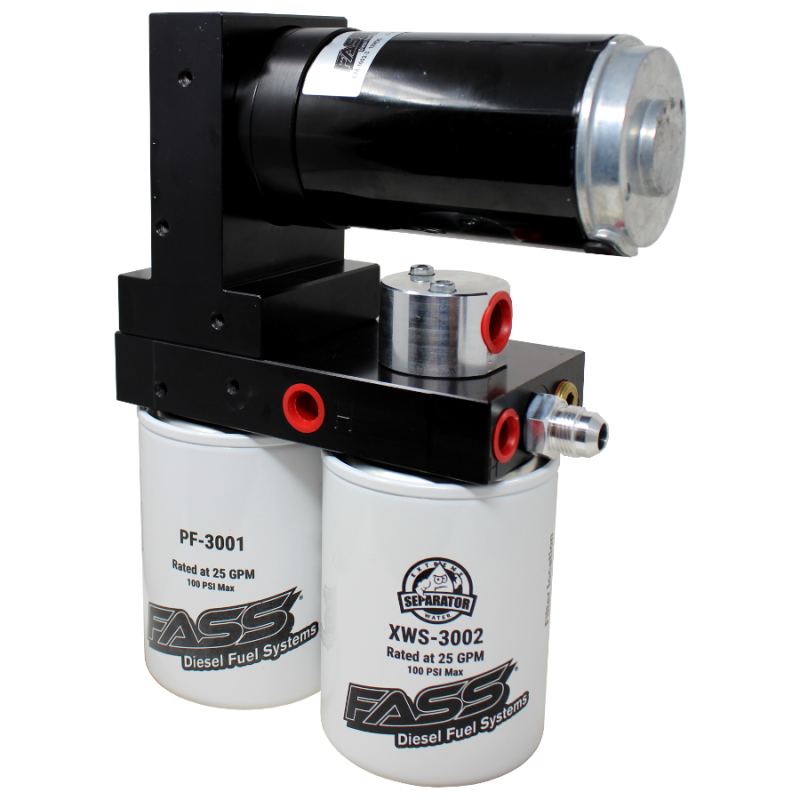

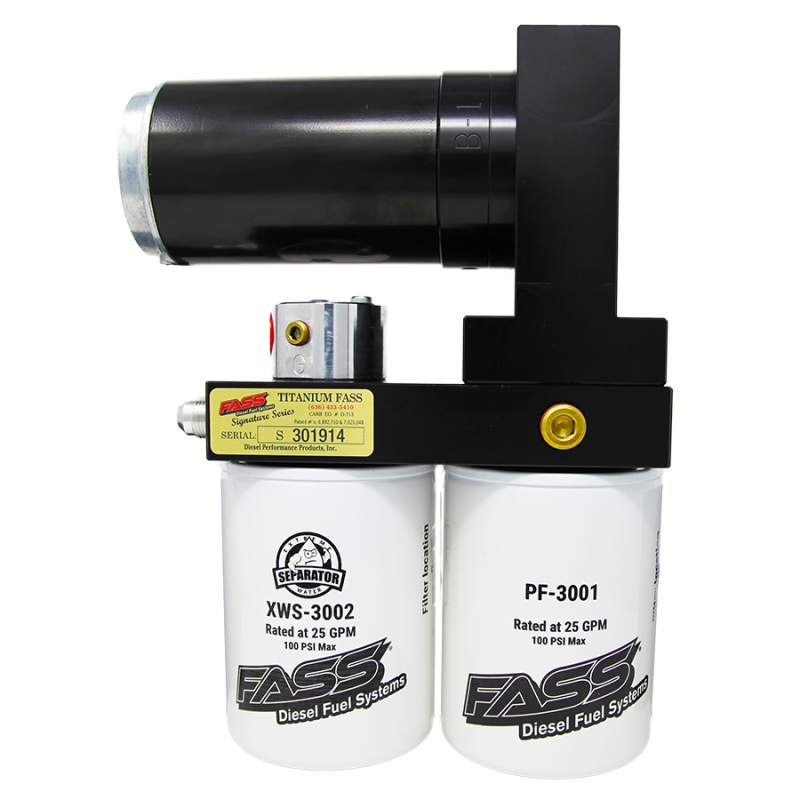

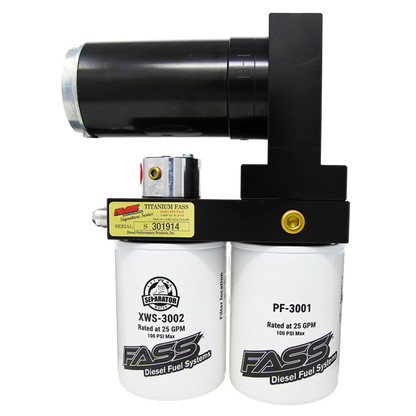

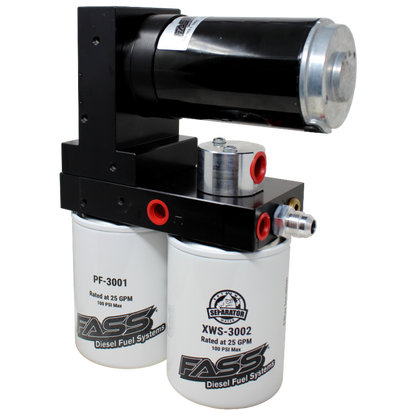

FASS TSD07165G Titanium Signature 165GPH Lift Pump for 2005-2024 Ram 2500/3500

Vehicle Fitment

• 2005-2007 Dodge Ram 2500 (5.9L Cummins, RWD/4WD)
• 2005-2007 Dodge Ram 3500 (5.9L Cummins, RWD/4WD)
• 2007.5-2010 Dodge Ram 2500 (6.7L Cummins, RWD/4WD)
• 2007.5-2010 Dodge Ram 3500 (6.7L Cummins, RWD/4WD)
• 2011-2018 RAM 2500 (6.7L Cummins, RWD/4WD)
• 2011-2018 RAM 3500 (6.7L Cummins, RWD/4WD)
• 2021-2024 RAM 2500 (6.7L Cummins, RWD/4WD)
• 2021-2024 RAM 3500 (6.7L Cummins, RWD/4WD)

Features

• Delivers 165 gallons per hour at 16-18 PSI fuel pressure
• Supports engines producing 600-900 horsepower
• 2-micron filtration rating for superior fuel cleanliness
• Integrated water separation to protect fuel system components
• FASS Whisper Technology for reduced noise levels
• Performance Radius Cuts for smooth fuel flow and reduced turbulence
• Mass Flow Return system continuously polishes fuel and prevents cavitation
• Optional ports for electric heater and fuel pressure gauge installation

Specifications

• Flow Rate: 165 GPH
• Fuel Pressure: Preset at 16-18 PSI
• Filtration Rating: 2 microns
• Material: Billet aluminum housing
• Inlet/Outlet Size: ½" NPT
• Mounting: Bolt-on bracket installation
• Weight: Approximately 10 lbs
• Dimensions: 18" x 4" x 11"

Included Components

• 1x TSD07165G Fuel Pump Assembly
• 1x Mounting Bracket
• 1x Wiring Harness
• 1x Fuel Filter (2-micron)
• 1x Water Separator
• 1x Bulkhead Fitting Suction Tube Kit
• 1x Installation Hardware Kit

Product Description

The FASS TSD07165G Titanium Signature Series 165GPH Lift Pump is engineered to provide consistent fuel delivery and filtration for Dodge/RAM 2500 and 3500 trucks equipped with 5.9L or 6.7L Cummins diesel engines from 2005 through 2018 and 2021 through 2024. This system supports high-performance applications ranging from 600 to 900 horsepower, ensuring your engine receives clean, air-free fuel under all operating conditions.

Featuring advanced filtration with a 2-micron rating and integrated water separation, the TSD07165G protects your fuel system components from contaminants and moisture. The patented Mass Flow Return system continuously polishes the fuel, eliminating air and vapor to prevent cavitation and maintain optimal injector performance. FASS Whisper Technology reduces pump noise, providing a quieter operation compared to standard lift pumps.

The included Bulkhead Fitting Suction Tube Kit simplifies installation by allowing direct plumbing to the fuel tank module, eliminating the need to cut the filler neck and significantly reducing installation time. Optional ports for an electric heater and fuel pressure gauge offer enhanced functionality for cold weather operation and system monitoring.
