Fabtech FTS21196 Dirt Logic 2.5 Coilovers for 07-18 Silverado/Sierra w/6" Lift

Vehicle Fitment

• 2007-2018 Chevrolet Silverado 1500 (2WD, 4WD)
• 2007-2018 GMC Sierra 1500 (2WD, 4WD)
• 2007-2014 Chevrolet Tahoe (2WD, 4WD)
• 2007-2014 Chevrolet Suburban 1500 (2WD, 4WD)
• 2007-2014 GMC Yukon (2WD, 4WD)
• 2007-2014 GMC Yukon XL 1500 (2WD, 4WD)
• 2007-2013 Chevrolet Avalanche (2WD, 4WD)

Fitment Notes

• Front position only -- sold as a pair
• Requires Fabtech 6" lift system -- this is NOT a complete suspension system
• Compatible with Fabtech systems: K1021/K1021DL, K1025/K1025DL, K1028/K1028DL, K1067/K1067DL, K1068/K1068DL
• Does not fit models equipped with Factory AutoRide shocks
• Does not fit AWD models
• Does not fit 2500HD or 3500HD models

Features

• 2.5" diameter stainless steel monotube coilover design for maximum damping capacity
• High-grade 304 stainless steel shock body for superior corrosion resistance
• Finely detailed machine finish on the stainless steel body for a premium appearance
• NitroSteel black piston rod provides increased hardness and corrosion resistance over chrome
• 2.25" billet aluminum piston for consistent damping performance
• Adjustable threaded coilover body allows ride height and preload tuning
• Cold wound coil springs for long-lasting, consistent spring rate
• 5/8" spherical ball mounting ends for precise suspension articulation
• Application-specific ride tuning -- not generic 60/40 or 70/30 valving
• Serviceable design with seal kits available separately for long-term maintenance

Specifications

• Position: Front
• Shock Body Diameter: 2.5" OD
• Shock Body Material: 304 Stainless Steel
• Piston Diameter: 2.25" OD Billet Aluminum
• Piston Rod: 7/8" NitroSteel Black
• Extended Length: 26.28"
• Collapsed Length: 21.74"
• Stroke Length: 4.55"
• Top Mount: TP
• Bottom Mount: OSBP
• Lift Height: 6"
• Shipping Weight: 58.8 lbs
• Package Dimensions: 35.75" L x 15.13" W x 8.75" H

Included Components

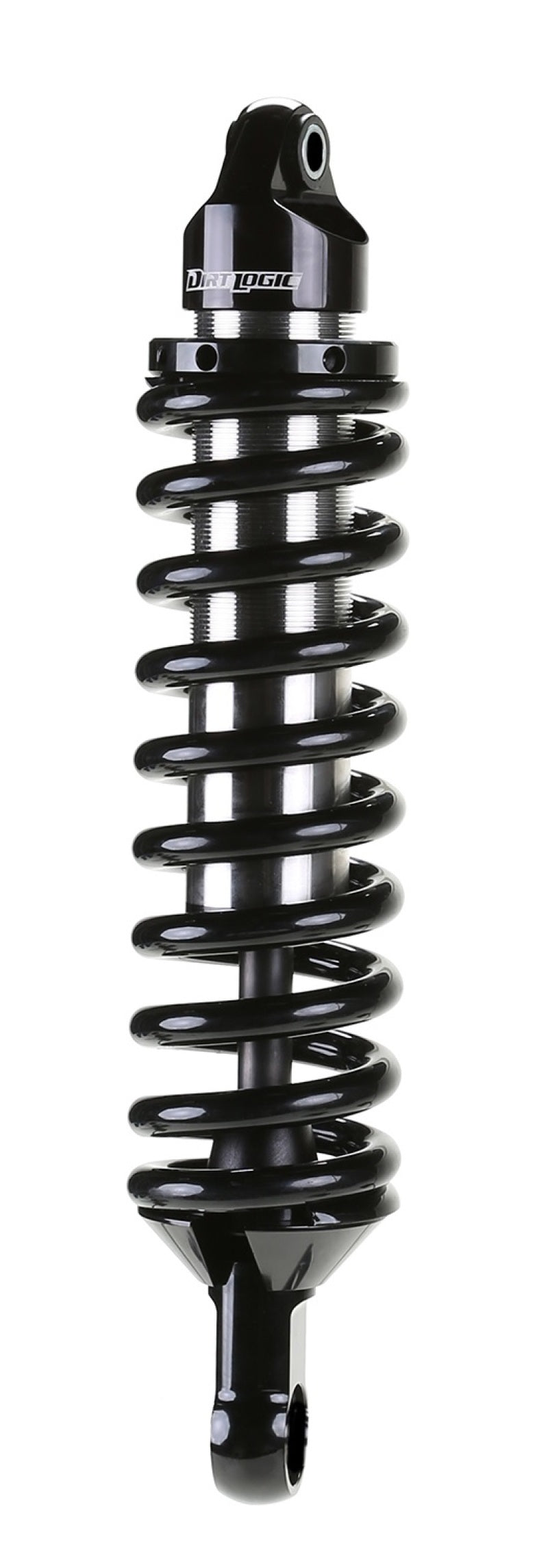

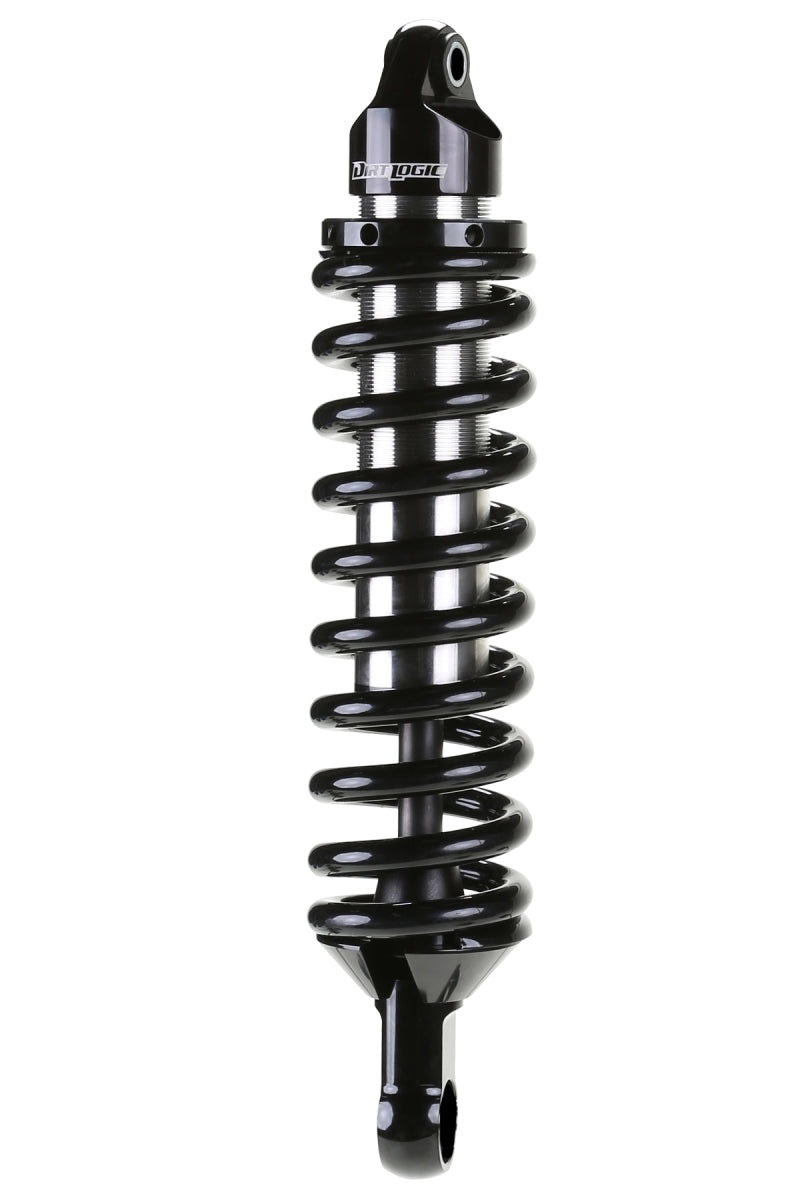

• 2x Fabtech Dirt Logic 2.5 Stainless Steel Front Coilover Shocks with Cold Wound Springs
• 1x Mounting Hardware Kit (washers, bushings, reservoir clamps, nuts)

Product Description

The Fabtech FTS21196 Dirt Logic 2.5 Stainless Steel Coilovers are a front shock upgrade designed to replace the factory spacer-style setup included with Fabtech's basic 6" suspension lift systems for 2007-2018 GM 1500 trucks and 2007-2014 GM 1500-series SUVs. Developed from Fabtech's desert racing experience, these coilovers deliver exceptional damping capacity for aggressive offroad driving while maintaining a comfortable highway ride. Each coilover is ride-tuned specifically by vehicle application rather than relying on generic valving, ensuring the best possible performance for the GM 1500 platform.

Built with all-new stainless steel and aluminum construction, these coilovers feature high-grade 304 stainless steel bodies that provide industry-leading corrosion resistance with a precision machine finish. The NitroSteel piston rod offers superior hardness and corrosion protection compared to traditional chrome rods, while the 2.25" billet aluminum piston ensures consistent damping even under extreme heat and stress. The threaded stainless steel body allows nearly infinite ride height and preload adjustment within the recommended lift range, giving owners the ability to fine-tune their stance and ride quality.

These coilovers are sold as a pair and are intended for use exclusively with compatible Fabtech 6" lift systems. They are a direct upgrade from the spacer kit and bolt into the existing mounting points using factory shock mounting hardware. Factory shock mounting bolts are reused during installation, and optional billet reservoir clamps (FTS89935) and shock boots are available separately. A one-year warranty on leakage applies, and service seal kits are offered for long-term maintenance.
