Fabtech K5000M 6" Lift Kit w/ Stealth Shocks for 2003-2008 Hummer H2 4WD

Vehicle Fitment

• 2003-2008 Hummer H2 (4WD, factory coil-spring rear suspension)
• Exclusions / Notes: Does not fit H2 models equipped with rear air-bag suspension - this is coil-spring version only

Features

• 6" front and rear suspension lift - significantly increased ground clearance
• Extended-length front steering knuckles and high-clearance crossmembers for front suspension lift
• Rear coil-spring upgrade (driver & passenger side specific) to raise rear ride height
• Includes new CV-style front driveshaft to maintain proper driveline geometry with full-time transfer case
• Comes with skid plates - 1/4" thick steel - for front differential and transfer case protection
• Stealth monotube shocks front & rear - designed for lifted suspension performance and oversized tires
• Allows larger wheels/tires - enables use of 37"-40"-class tires (with proper wheel/back-spacing and minor trimming)
• Bolt-on installation - no welding required; retains much of OEM suspension geometry and steering components

Specifications

• Lift height: +6.0" (front & rear)
• Front suspension: extended steering knuckles + high-clearance crossmembers + front CV driveshaft
• Rear suspension: upgraded coil springs (passenger & driver-side specific)
• Shocks: 2x front & 2x rear Stealth monotube shocks
• Recommended wheel/tire setup: up to 40" dia x 13.5" wide tire on 17x10" wheel with ~4 5/8" back spacing (minor trimming required)
• Includes skid plates for front diff and transfer case for under-body protection

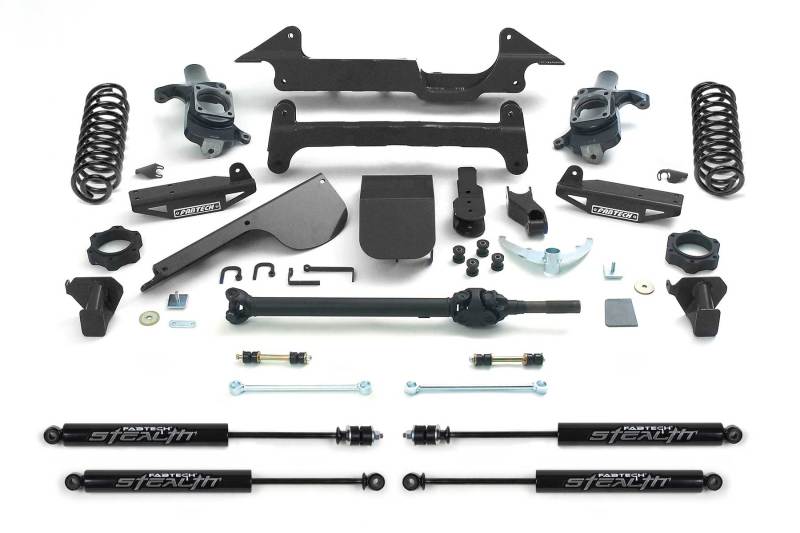

Included Components

• 1x set of extended front steering knuckles & high-arch crossmembers
• 1x pair of upgraded rear coil springs (left & right specific)
• 1x CV-style front driveshaft for transfer-case compliance
• 2x front Stealth monotube shocks
• 2x rear Stealth monotube shocks
• 1x set of 1/4"-thick steel skid plates (front differential & transfer case)
• All required mounting hardware, brackets, spacers, sway-bar links, U-bolts where needed

Product Description

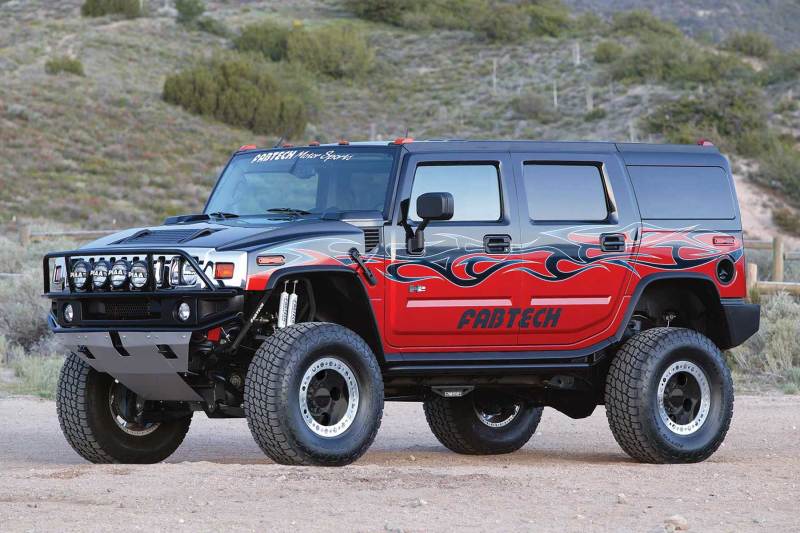

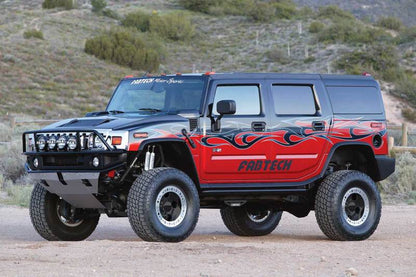

The Fabtech K5000M lift kit is a complete 6" suspension upgrade engineered for 4WD Hummer H2 models (2003-2008) equipped with factory coil-spring rear suspension. This system replaces key front suspension components - including extended steering knuckles and high-clearance crossmembers - to safely raise the front end, while rear coil springs raise rear ride height. A new CV-style front driveshaft ensures proper driveline geometry with the H2's full-time transfer case, and skid plates protect the front differential and transfer case under rough terrain. With front and rear Stealth monotube shocks optimized for lifted suspension and larger tires, the kit transforms the H2 into a more capable off-road vehicle or show-ride platform.

Owners get increased ground clearance, improved approach/departure angles, and the ability to run much larger wheels and tires (up to ~40" diameter, with correct wheel specs and trimming). The bolt-on design avoids welding or chopping the frame, making installation more straightforward. The added under-body protection from skid plates and heavy-duty suspension components also enhances durability for off-road, rock-crawling, or trail use - ideal for those who want to push their H2 beyond stock limitations.

Important Note: This K5000M kit is only compatible with H2 models using the coil-spring rear suspension - **not** those equipped with rear air bags. Before purchase or installation, verify your H2's suspension setup. After installation, a full wheel alignment and inspection of steering, brake lines, driveshaft clearance, and suspension travel are strongly recommended. Running oversized tires may require minor trimming or modification depending on wheel/back-spacing.
