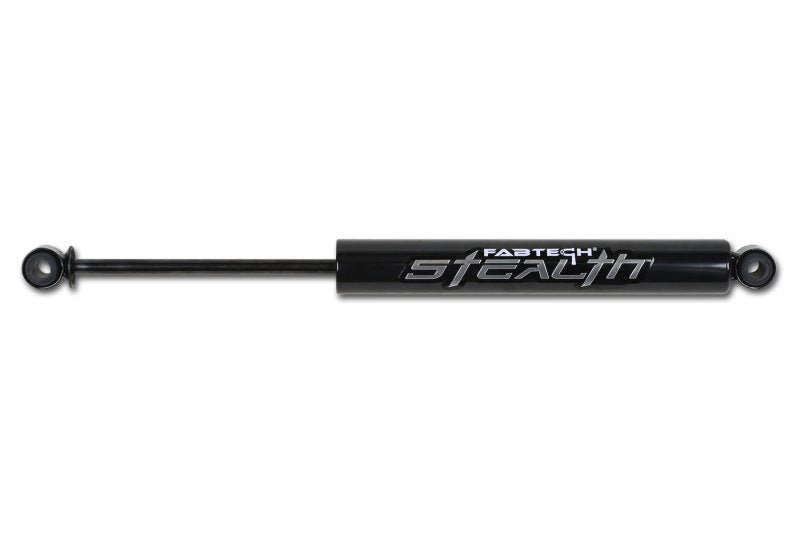

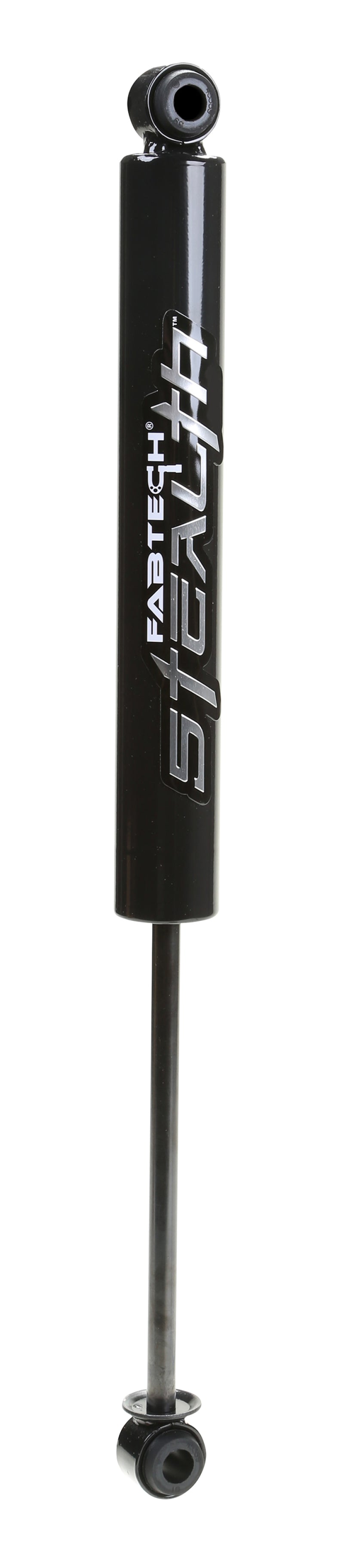

Fabtech FTS6064 Stealth Monotube Rear Shock Absorber 2001-2010 GM 2500HD 3500

Vehicle Fitment

• 2001-2010 Chevrolet Silverado 2500HD (2WD & 4WD | Rear)
• 2001-2010 Chevrolet Silverado 3500 / 3500HD (2WD & 4WD | Rear)
• 2001-2010 GMC Sierra 2500HD (2WD & 4WD | Rear)
• 2001-2010 GMC Sierra 3500 / 3500HD (2WD & 4WD | Rear)

Fitment Notes

• Rear position only - this is a rear shock absorber. Separate Fabtech part numbers apply to the front positions.
• FTS6064 is a component of multiple Fabtech complete lift systems including K1014M, K1045M, K1046M, K1051M, K2019M, K2020M, K2060M, K20601M, K2061M, K20611M, K2062M, K20621M, K2063M, K2076M, K2086M, K2087M, K2090M, K2097M, K2098M, K2099M, K2100M, K3006M, K3025M, and K3044M. It is also sold individually as a replacement component.
• Fabtech requires shocks to be installed as part of a complete Fabtech suspension system. Combining or substituting with other aftermarket suspension brands voids the Fabtech warranty and may cause premature wear or failure.
• Sold individually - one shock per order. A complete rear axle replacement requires 2 units.
• Fabtech does not guarantee fitment on unlisted applications.

Features

• Monotube construction concentrates all damping components in a single tube - providing superior heat dissipation, more responsive damping, and reduced shock fade compared to twin-tube designs under sustained off-road and heavy towing conditions.
• Full floating piston physically separates the nitrogen gas charge from the shock oil, preventing aeration and maintaining consistent damping performance regardless of suspension travel speed or terrain intensity.
• 46mm high-flow piston delivers a large oil displacement volume for fluid, controlled damping - reducing the harsh, abrupt response that undersized pistons produce under larger wheel movements.
• Vehicle-specific valving is tuned for the 2500HD/3500 platform with oversized tires in mind - delivering a ride calibrated for the weight, travel characteristics, and tire sizes common to these trucks in lifted configurations.
• 14mm Nitrocarburized piston rod is harder, more corrosion-resistant, and more impact-resistant than conventional chrome rods - resisting rust, rock chips, and surface damage that cause chrome rods to fail prematurely in off-road use.
• All-black finish with raised metal nameplate - the first all-black monotube shock absorber on the market, offering a clean aesthetic that complements lifted truck builds.

Specifications

• Part Number: FTS6064
• Type: Stealth Monotube Shock Absorber
• Position: Rear
• Body Diameter: 50mm OD Seamless Steel
• Piston Diameter: 46mm High Flow
• Piston Rod: 14mm Nitrocarburized (Matte Black)
• Gas Charge: High-Pressure Nitrogen (Full Floating Piston)
• Valving: Vehicle-Specific (Oversized Tire Optimized)
• Finish: All Black with Raised Metal Nameplate
• Application: 2001-2010 GM Silverado/Sierra 2500HD & 3500/3500HD | Rear
• Quantity: Sold individually (1 shock per order)
• Warranty: Fabtech Limited Lifetime (exclusions apply; must be used as part of complete Fabtech system)

Included Components

• 1x Fabtech Stealth Monotube Rear Shock Absorber

Product Description

The Fabtech FTS6064 is a Stealth Monotube rear shock absorber engineered for the 2001-2010 Chevrolet Silverado and GMC Sierra 2500HD and 3500 series in lifted configurations. As a monotube design, it consolidates all damping components into a single pressurized tube with a full floating piston that physically separates the high-pressure nitrogen charge from the shock oil - eliminating the aeration and fade that twin-tube designs are prone to under repeated large suspension inputs. The 46mm high-flow piston and vehicle-specific valving are calibrated for the weight and travel characteristics of heavy-duty GM trucks running oversized tires, delivering a controlled, consistent ride rather than the harsh or unpredictable response that OEM shocks produce when pushed beyond their design envelope.

The 14mm Nitrocarburized piston rod addresses one of the most common failure modes for lifted truck shocks in real-world use - conventional chrome rods chip, rust, and score when exposed to rocks, gravel, and road salt, which then destroy the rod seal and cause leakage. Nitrocarburizing produces a harder, more corrosion-resistant surface that resists these failure modes. The all-black finish with raised nameplate completes the visual package in any lifted build. FTS6064 is included in numerous Fabtech complete lift systems and is sold individually as a replacement component. Sold each - two required for a complete rear axle application.
