Fabtech K2098M 6" Basic Lift Kit w/ Stealth Shocks for 2000-2005 Ford Excursion

Vehicle Fitment

• 2000-2005 Ford Excursion (2WD, gas or 6.0 L diesel)
• 2001-2004 Ford F-250 Super Duty (2WD)
• 2001-2004 Ford F-350 Super Duty (2WD)

Features

• 6" front and rear suspension lift for significantly increased ground clearance
• Heavy-duty 1/4" thick drop brackets to relocate stock I-beams and radius arms for proper geometry
• Extended-length front coil springs to support lifted ride height
• Rear block & U-bolt kit to raise the rear ride height and balance the lift
• Includes drop pitman arm to correct steering geometry after lift installation
• Front and rear "Stealth" monotube performance shocks included for improved ride and off-road damping
• Allows installation of larger tires (up to approximately 315/75R16 ~ 34" overall diameter) for enhanced off-road capability
• Utilizes stock radius-arm suspension components - simplifies installation and reduces required modifications

Specifications

• Lift height: +6.0" front and rear
• Front suspension: Drop brackets relocating I-beam and radius arms; extended coil springs
• Rear suspension: Block lift with U-bolt kit
• Shocks: 2x front Stealth monotube shocks, 2x rear Stealth monotube shocks
• Brake/drivetrain compatibility: 2WD only (non-dually models) - not for 4WD or dual-rear-wheel versions. :contentReference[oaicite:1]{index=1}
• Recommended tire size: up to ~315/75R16 (approx. 34" overall) on 16" wheels (minor trimming may be required) :contentReference[oaicite:2]{index=2}

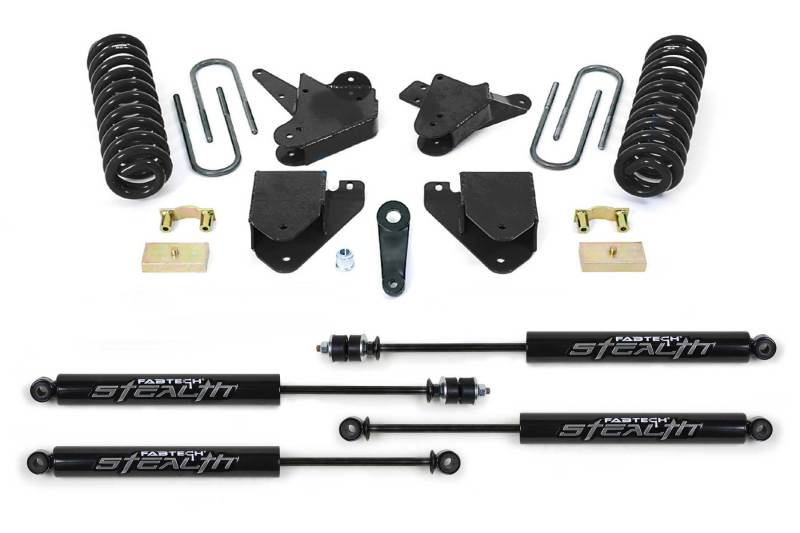

Included Components

• 1x set of heavy-duty front drop brackets (I-beam / radius-arm relocation)
• 1x set of extended-length front coil springs
• 1x drop pitman arm
• 1x rear block lift kit with U-bolt kit
• 2x front Stealth monotube shocks
• 2x rear Stealth monotube shocks
• All required mounting hardware, alignment cams, and spacers for installation

Product Description

The Fabtech K2098M is a full-suspension 6" lift kit designed for 2000-2005 Ford Excursion (2WD) and 2001-2004 Ford F-250 / F-350 Super Duty 2WD trucks. By relocating the factory I-beams and radius arms with heavy-duty drop brackets and replacing the stock springs with extended-length coils, this kit delivers a robust 6" lift while maintaining proper suspension geometry. The included front and rear "Stealth" shocks and rear block lift keep the ride balanced front-to-rear and improve both on-road stability and off-road performance.

This kit is ideal for owners who want dramatic ground clearance, the ability to run larger 34"-class tires, and a rugged stance - perfect for off-road, hauling, or towing with style. Installation retains much of the factory suspension layout (radius arms remain stock), which helps simplify installation compared to full suspension overhauls. A drop pitman arm corrects steering geometry disrupted by the lift, and a proper alignment is strongly recommended post-installation.

Important Note: K2098M is for **2WD, non-dually** versions only. Do not attempt installation on 4WD or dually models. Verify your drivetrain setup before ordering. After installation, re-check steering, brake lines, driveshaft clearance, and suspension travel to ensure safe operation.
