Fabtech K2098 6" Basic Lift Kit for 2000-2005 Ford Excursion & 2001-2004 F-250

Vehicle Fitment

• 2000-2005 Ford Excursion (2WD, gas or 6.0L diesel)
• 2001-2004 Ford F-250 Super Duty (2WD)
• 2001-2004 Ford F-350 Super Duty (2WD)

Features

• 6" front and rear suspension lift for increased ground clearance
• Heavy-duty 1/4" thick drop brackets to relocate I-beams and radius arms for proper geometry
• Extended-length coil springs for front suspension to support lift height
• Rear block & U-bolt kit to raise rear ride height and maintain balance
• Included drop pitman arm to correct steering geometry after lift
• Front and rear performance shocks for improved ride and off-road damping
• Designed to allow larger tires (up to ~315/75R16) for better off-road capability
• Utilizes stock radius arms, minimizing changes to core suspension components while lifting

Specifications

• Lift height: +6.0" (front & rear)
• Brake/drivetrain compatibility: 2WD only - not for dually or 4WD models
• Tire compatibility (approximate): up to 315/75R16 (≈ 34" overall diameter) on 16x8 wheels (with ~45/8" backspacing, minor trimming may be required)
• Includes heavy-duty drop brackets and extended coil springs to preserve suspension geometry after lift
• Includes drop pitman arm, rear block & U-bolts, front & rear shocks, all necessary hardware

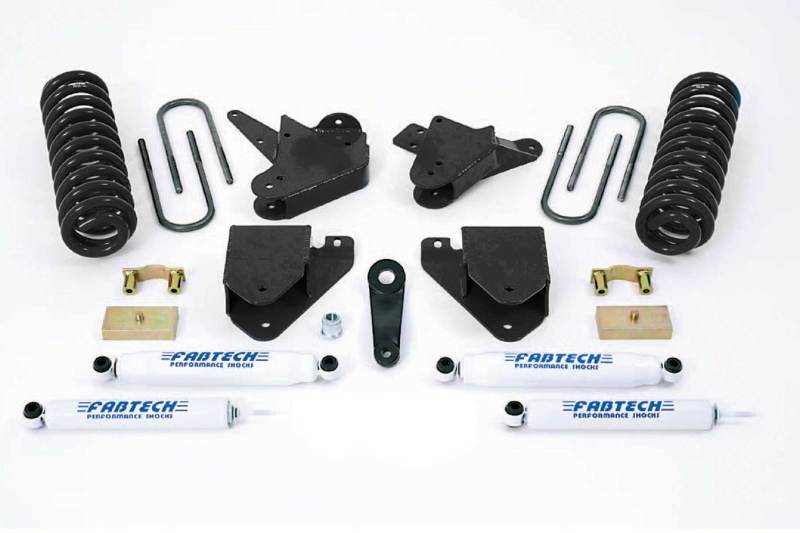

Included Components

• 1x set of heavy-duty front drop brackets (I-beam/radius arm relocation)
• 1x set of extended-length front coil springs
• 1x drop pitman arm
• 1x rear block lift kit (blocks + U-bolts)
• 1x pair of rear performance shocks
• 1x pair of front performance shocks
• All required mounting hardware, bolts, spacers for front and rear installation

Product Description

Fabtech K2098 is a full 6" suspension lift kit engineered for 2000-2005 Ford Excursion (2WD) and 2001-2004 Ford F-250 / F-350 Super Duty (2WD). By relocating the stock I-beams and radius arms using heavy-duty drop brackets and installing extended-length coil springs, this kit raises the vehicle significantly while maintaining proper suspension geometry. The included front and rear shocks and rear block kit help balance ride height front to rear and enhance both on-road ride comfort and off-road capability.

This lift kit is ideal for truck owners who want dramatic ground clearance increase to run larger tires (e.g., 315/75R16), improve off-road articulation, or achieve an aggressive lifted stance. Because the kit retains many stock suspension components (radius arms, I-beams) and adds only the necessary brackets, springs, and shocks - it simplifies installation and reduces the need for extensive modifications. After installation, a professional alignment is highly recommended to ensure steering and handling remain safe.

Note: This kit is designed for 2WD models only (i.e. not compatible with dually or 4WD trucks). Verify your truck's configuration before purchase. Installing this kit significantly raises the center of gravity - ensure all other related components (brakes, driveshaft, steering) are checked for clearance.
