Exedy 15954 Stage 2 Cerametallic Clutch Kit for Subaru Impreza/Legacy/Baja 2.5L

Vehicle Fitment

• 1997-2011 Subaru Impreza 2.5L H4 SOHC (non-turbo)
• 2012-2017 Subaru Impreza 2.0L H4
• 1998-2013 Subaru Forester 2.5L H4 SOHC (non-turbo)
• 1996-2004 Subaru Legacy 2.5L H4 SOHC
• 2005-2009 Subaru Legacy 2.5L H4 SOHC (non-turbo)
• 2000-2004 Subaru Legacy 3.0L H6 DOHC
• 2005-2009 Subaru Legacy 3.0L H6 DOHC
• 2010-2012 Subaru Legacy 2.5L H4
• 2003-2006 Subaru Baja 2.5L H4 SOHC
• 2005-2006 Saab 9-2X 2.5L H4 SOHC

Fitment Notes

• Non-turbo SOHC applications -- does NOT fit WRX/STI turbo models
• 225mm disc diameter
• 24 spline / 25.2mm spline size
• Cushion button type cerametallic disc -- streetable engagement
• Sprung hub center -- reduces drivetrain shock loads
• Flywheel must be resurfaced before installation or warranty is void
• SFI 1.1 certified for competitive motorsports

Features

• Exedy Stage 2 Cerametallic clutch kit
• Thick ceramic facing for superior heat capacity
• 40% higher clamp load than OEM pressure plate
• Ductile casting pressure plate -- high burst strength
• Cushion button disc -- smooth engagement for street use
• Sprung center damper -- reduces drivetrain shock and impact
• Handles high-power modified engines without slipping

Specifications

• Part Number: 15954
• Brand: Exedy Racing Clutch
• Series: Stage 2 Cerametallic
• Type: Performance clutch kit
• Disc Diameter: 225mm (8.9")
• Disc Type: Cushion button cerametallic
• Center Style: Sprung hub
• Spline Count: 24
• Spline Size: 25.2mm (1")
• Clamp Load: 1,652 lbs
• Torque Capacity: 228 ft-lbs (at wheels)
• SFI Certification: 1.1
• UPC: 651099042695
• Warranty: 12 months from date of purchase

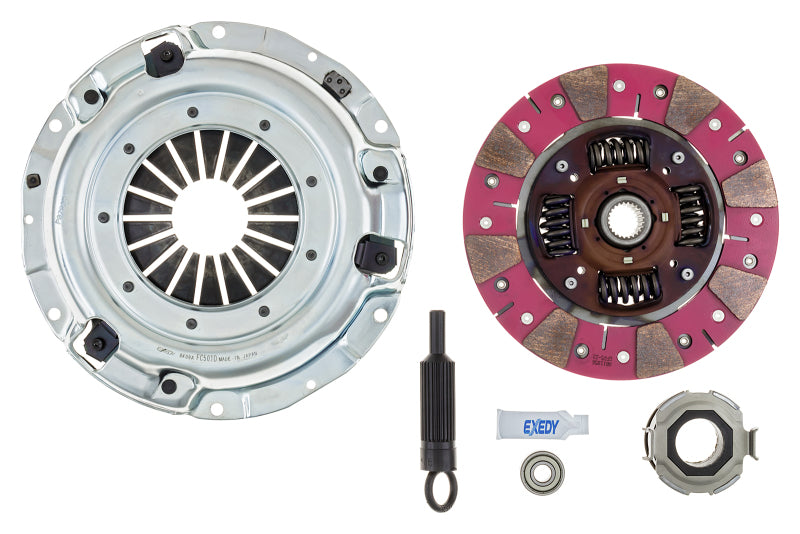

Included Components

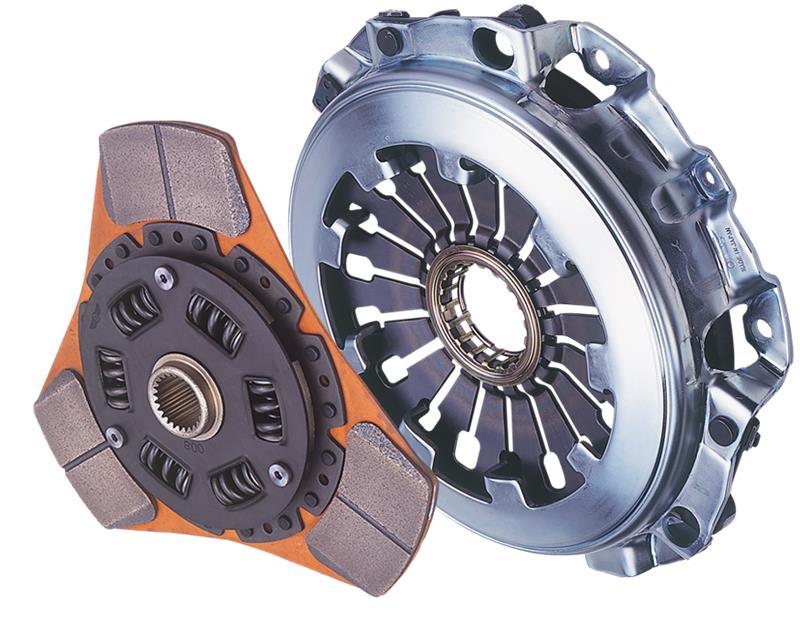

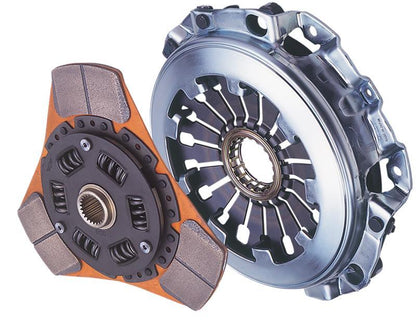

• 1x Exedy Stage 2 cerametallic cushion button disc
• 1x Exedy Stage 2 performance pressure plate
• 1x Release bearing

Product Description

The Exedy 15954 is a Stage 2 Cerametallic clutch kit for non-turbo Subaru models including the 1997-2017 Impreza, 1998-2013 Forester, 1996-2012 Legacy, 2003-2006 Baja, and 2005-2006 Saab 9-2X equipped with the 2.5L H4 SOHC or 3.0L H6 DOHC engine. The Stage 2 features a thick cerametallic cushion button disc that combines high-temperature ceramic facing with marcel cushion springs for smooth street-friendly engagement while supporting significantly more power than a stock clutch assembly. The sprung hub center damper reduces impact and shock loads transmitted through the drivetrain.

The pressure plate delivers approximately 40% higher clamp load than the OEM unit using ductile casting material for high burst strength across all temperature ranges, resulting in a torque capacity of 228 ft-lbs at the wheels. Designed for modified naturally aspirated Subaru engines -- ideal for street, rally, and track use. Does not fit WRX or STI turbo models. Flywheel must be resurfaced to manufacturer specifications before installation or the warranty is void. SFI 1.1 certified for use in sanctioned competitive motorsports. Exedy Globalparts Corporation is a wholly owned subsidiary of the Exedy Corporation of Japan, founded in 1923, and is a Tier 1 OEM clutch supplier to all major automotive manufacturers worldwide. Stage 2 clutch kits carry a 12-month warranty from date of purchase.
