Enkei 562-895-1245DHS NVR5 18x9.5 +45 Dark Hyper Silver MAT Racing Wheel 5x120

Vehicle Fitment

• Universal Fitment - 5x120 Bolt Pattern, 18x9.5, +45 Offset, 72.5mm Hub Bore
• Compatible with vehicles using a 5x120 bolt pattern (verify fitment before purchase)

Fitment Notes

• This is a universal wheel sold by bolt pattern - not application-specific. Confirm your vehicle's bolt pattern, offset clearance, hub bore, and brake caliper clearance before ordering.
• Hub bore is 72.5mm - this is the standard bore for BMW 5x120 platforms. Hub rings will be required if your vehicle's hub bore is smaller than 72.5mm.
• Lug nuts/bolts, TPMS sensors, and hub rings are NOT included - purchase separately as needed. Many 5x120 BMW platforms use lug bolts (not lug nuts) with specific thread pitch and seat type - verify your vehicle's requirements before ordering hardware.
• All wheels must be test-fit to the vehicle before mounting tires; mounted wheels cannot be returned.
• This 18x9.5 / +45 configuration ships with a Front (F) face profile - a lower concavity depth suited to this wide-barrel, higher-offset configuration, providing clean brake caliper clearance across the large brake packages found on BMW and other 5x120 performance platforms.
• At 18x9.5 with a +45mm offset, this is a well-positioned fitment for BMW platforms where factory 5x120 wheel-well geometry typically accommodates 9-9.5-inch widths at this offset range. Verify fender, suspension, and caliper clearance on lowered and modified applications before mounting tires.
• The Dark Hyper Silver (DHS) finish is a premium multi-layered dark metallic silver - maintain with pH-neutral wheel cleaners and avoid abrasive products that can damage the multi-layer finish.
• This is a Special Order item in the Racing Series lineup - lead times may vary. Verify current availability and lead time with your retailer before ordering.
• Common 5x120 platforms include BMW 3 Series (E36/E46/E90/E92/F30/G20), 5 Series (E60/F10/G30), M2/M3/M4/M5 variants, 1 Series, 2 Series, Z4, X3/X5/X6 (some variants), Land Rover Range Rover (select years), Honda Ridgeline, and others - verify your specific year, trim, and clearance before ordering.

Features

• Five-set twin-spoke (2x5 split-spoke) layout redesigned from the ground up using cutting-edge CAE (Computer-Aided Engineering) structural analysis for endurance race application - the paired spoke geometry and integrated lug holes deliver an efficient stress distribution profile suited to the high-performance brake and suspension loads typical of BMW and other 5x120 sport platforms on both road and circuit
• Twin Radiation Dimples: three-dimensional curved surface depressions machined into each spoke face - engineered to remove targeted grams of spoke mass while simultaneously increasing the spoke's total surface area, contributing to improved heat dissipation from the wheel during aggressive track sessions where the large brake packages on BMW platforms generate significant thermal load
• H Cross Spoke cross-section: each spoke is shaped in H-beam profile with the spoke sides machined away in the lowest-stress zones identified through CAE analysis - preserving bending and torsional stiffness while reducing spoke mass at the 9.5-inch barrel width, contributing to lower wheel rotational inertia and improved steering response on 5x120 performance platforms
• Front (F) face profile on this 18x9.5 / +45 configuration - a lower spoke concavity depth providing excellent brake caliper clearance across the large factory and aftermarket brake packages common on BMW and other 5x120 performance platforms, a clean purposeful spoke face appearance, and a balanced aesthetic suited to both street-driven performance cars and track-prepared builds
• Dark Hyper Silver (DHS) finish: a premium multi-layered dark metallic silver paint that shifts appearance dynamically with lighting - appearing graphite-toned and deep in shadow and brightening to a clear, polished silver in direct sunlight - particularly well suited to the BMW color palette of white, grey, black, and dark blue where the DHS's depth-shifting character interacts most visibly with the car's body finish
• 72.5mm hub bore - the standard hub bore for BMW 5x120 platforms including the 3 Series, 4 Series, 5 Series, and M-series variants, enabling a hub-centric fit without aftermarket bore reduction on the most common BMW performance vehicle families
• MAT (Most Advanced Technology) flow-formed construction: combines one-piece casting with high-pressure rim flow-forming to produce near-forged aluminum grain density and tensile strength in the barrel - the same process family used across the RPF1, GTC02, and the broader Enkei Racing Series
• Enkei Spec-E Inspected: surpasses JWL standards with a higher drop point in impact testing and 20% additional cycles for both rotary bending and dynamic radial fatigue load tests
• Available in 17 and 18-inch diameters across multiple bolt patterns in Dark Hyper Silver (DHS) and Matte Gunmetal (GM) finishes - Racing Series, Special Order, Limited Availability
• Made in Japan. JWL and VIA certified.

Specifications

• Part Number: 562-895-1245DHS
• Wheel Model: NVR5 (Racing Series)
• Wheel Size: 18x9.5 (18-inch diameter, 9.5-inch width)
• Bolt Pattern: 5x120
• Offset: +45mm
• Hub Bore: 72.5mm
• Approximate Backspacing: 7.02 inches
• Approximate Front Spacing: 2.98 inches
• Finish: Dark Hyper Silver (DHS) - Premium multi-layered dark metallic silver
• Face Profile: F (Front - lower concavity)
• Spoke Count: 10 (5 twin-spoke pairs / 2x5 split-spoke layout)
• Construction: One-Piece Flow-Formed Aluminum Alloy with MAT Technology
• Key Engineering Details: Twin Radiation Dimples, H Cross Spoke cross-section, CAE-optimized for endurance racing
• Manufactured In: Japan
• Lug Style: Exposed Lugs (integrated lug holes in spoke design)
• Finish Warranty: 1 Year
• Structural Warranty: Manufacturer's Lifetime
• Series: Racing Series - Special Order (Limited Availability)
• Certifications: Spec-E Inspected, JWL, VIA

Included Components

• 1x Enkei NVR5 Wheel (18x9.5 / 5x120 / +45 / Dark Hyper Silver / Front Face)
• 1x Center Cap
• 1x Valve Stem
• Note: Lug nuts/bolts, hub rings, and TPMS sensors are NOT included

Product Description

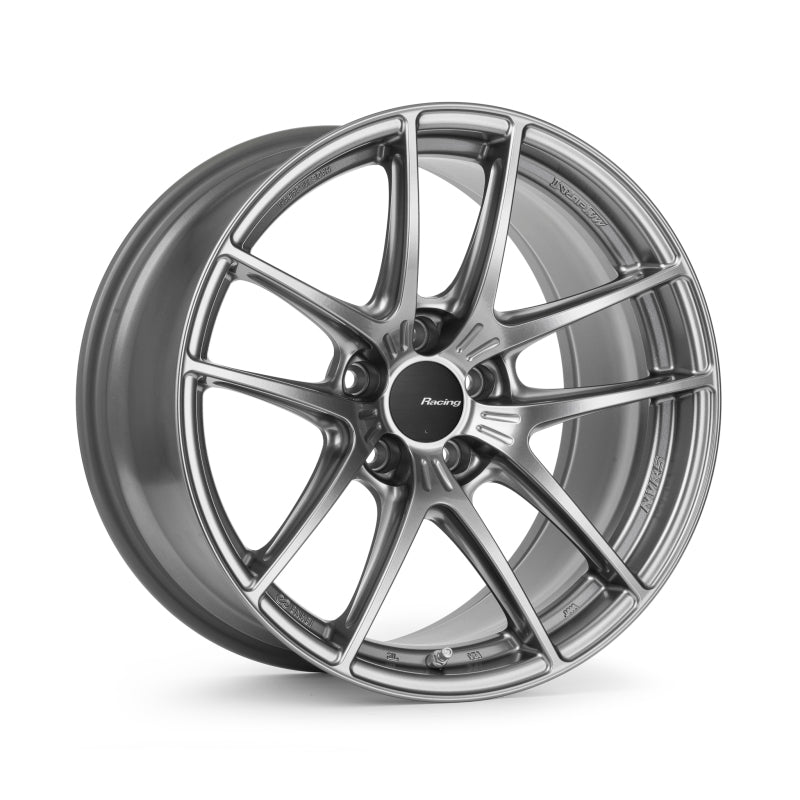

The Enkei NVR5 (Part# 562-895-1245DHS) is an 18x9.5 one-piece flow-formed aluminum alloy wheel in Dark Hyper Silver finish, part of Enkei's Racing Series in the 5x120 bolt pattern at +45mm offset - a configuration purpose-built for the BMW platform ecosystem where 5x120, 72.5mm hub bore, and 18-inch diameters define the performance fitment standard across the 3 Series, 4 Series, 5 Series, M2/M3/M4, and related variants. The 9.5-inch barrel at +45mm delivers a meaningful tire contact patch upgrade over factory BMW wheel widths while maintaining a position within the factory wheel-well geometry on most E and F-series builds - a practical balance of performance and fitment accessibility that suits the NVR5's dual role as both a genuine Racing Series wheel and a premium street performance upgrade. The Dark Hyper Silver (DHS) finish's multi-layered dark metallic silver character - graphite-toned in shadow, bright silver in direct light - pairs naturally with the BMW color palette and complements the German engineering aesthetic of the 5x120 platform family with the same endurance racing precision that defines the NVR5's structural identity.

The NVR5's three structural engineering technologies address the real-world load demands of 5x120 BMW platforms specifically. The large factory and performance brake packages on BMW sport models generate significant thermal load in the wheel structure during track use - Twin Radiation Dimples directly address this by removing targeted spoke mass while expanding heat-dissipating spoke surface area for improved thermal management during extended circuit sessions. The H Cross Spoke cross-section's H-beam profile removes material from the spoke sides where CAE analysis identifies minimal structural contribution, reducing spoke mass and rotational inertia - on BMW platforms where steering feedback precision is a defining driver experience expectation, the lower inertia wheels enabled by this process are perceptible. The MAT flow-forming process provides near-forged rim barrel tensile strength, and Spec-E certification confirms structural performance at a higher drop point and 20% more fatigue test cycles than JWL. The 72.5mm hub bore matches the BMW 5x120 standard for hub-centric fitment without requiring aftermarket bore reduction rings.

Many 5x120 BMW platforms use lug bolts rather than lug nuts - buyers should verify their specific vehicle's lug bolt thread pitch and seat type before purchasing hardware. The NVR5 is a Special Order Racing Series item manufactured in Japan - lead times vary by retailer. The Dark Hyper Silver finish should be maintained with pH-neutral wheel cleaners; abrasive products should be avoided to protect the multi-layer finish. Lug bolts/nuts, hub rings, TPMS sensors, and valve stems are not included. Sold individually - a set of four is recommended for a complete upgrade.
