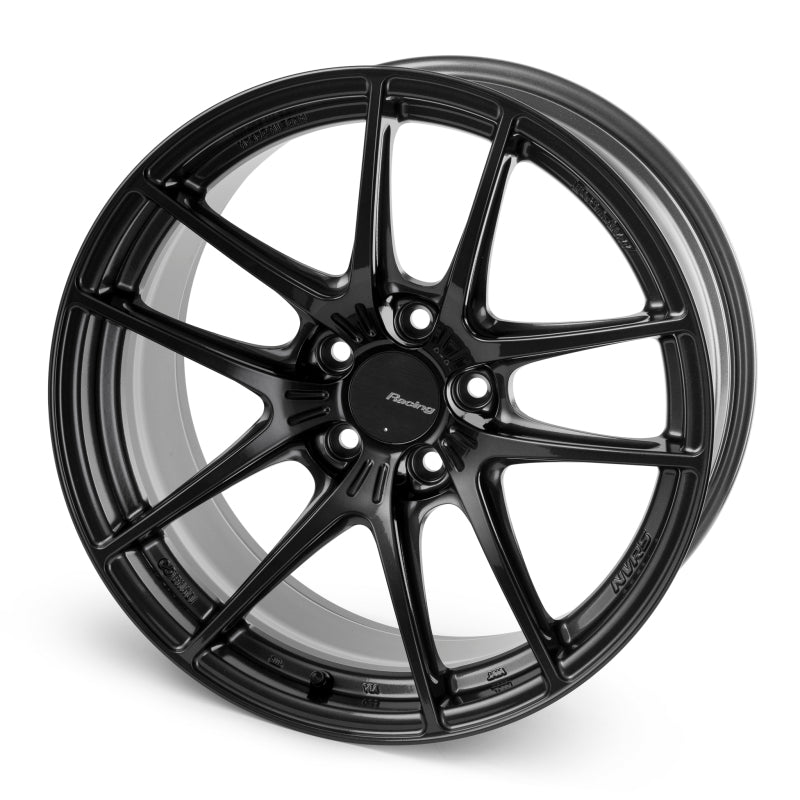

Enkei 562-785-6530GM NVR5 17x8.5 +30 Matte Gunmetal MAT Racing Wheel 5x114.3

Vehicle Fitment

• Universal Fitment - 5x114.3 Bolt Pattern, 17x8.5, +30 Offset, 75mm Hub Bore
• Compatible with vehicles using a 5x114.3 bolt pattern (verify fitment before purchase)

Fitment Notes

• This is a universal wheel sold by bolt pattern - not application-specific. Confirm your vehicle's bolt pattern, offset clearance, hub bore, and brake caliper clearance before ordering.
• Hub rings may be required if your vehicle's hub bore is smaller than 75mm.
• Lug nuts, TPMS sensors, and hub rings are NOT included - purchase separately as needed.
• All wheels must be test-fit to the vehicle before mounting tires; mounted wheels cannot be returned.
• This 17x8.5 / +30 configuration ships with a Middle (M) face profile - a moderate concavity depth between Front (F) and Rear (R) that delivers a balanced spoke dish suited to the 17-inch wide-barrel track day and street performance fitment.
• The +30mm offset on a 17x8.5 barrel is a low-offset configuration that positions the wheel face further outward than typical street fitments - verify fender clearance, particularly on lowered applications.
• The Matte Gunmetal finish should be maintained with pH-neutral, matte-compatible wheel cleaners. Avoid gloss-enhancing products, wax, or sealants that can alter the matte surface texture.
• This is a Special Order item in the Racing Series lineup - lead times may vary. Verify current availability and lead time with your retailer before ordering.
• Common 5x114.3 platforms include select Acura, Honda, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, and Toyota models - verify your specific year and trim before ordering.

Features

• Five-set twin-spoke (2x5 split-spoke) layout redesigned from the ground up using cutting-edge CAE (Computer-Aided Engineering) analysis for endurance race application - the spoke design and integrated lug holes achieve a high degree of structural and aesthetic harmony, with the paired spoke geometry distributing stress more effectively than conventional single-spoke layouts under hard cornering, braking, and sustained load
• Twin Radiation Dimples: distinctive three-dimensional curved surface depressions machined into the spoke faces - engineered to reduce spoke mass by targeted grams while simultaneously increasing the spoke's surface area, which contributes to improved heat dissipation from the wheel during aggressive and extended track use
• H Cross Spoke cross-section: each spoke is shaped in H-beam profile with the spoke sides - which carry minimal structural load - boldly machined away, reducing mass in low-stress zones while maintaining the bending and torsional stiffness of the spoke under real-world racing loads
• Middle (M) face profile on this 17x8.5 / +30 configuration - a moderate spoke concavity depth positioned by Enkei's face system at the optimal concave depth for this width and offset combination, delivering visible spoke dish without the full deep-dish character of a Rear (R) face
• Matte Gunmetal (GM) finish: a flat, subdued dark metallic gray surface that provides a purposeful, competition-focused aesthetic - the understated tonal character of the matte gunmetal surface suits both track-prepped builds and everyday street use, complementing a wide range of vehicle body colors without competing with the car's lines
• MAT (Most Advanced Technology) flow-formed construction: combines one-piece casting with high-pressure rim flow-forming to produce near-forged aluminum grain density and tensile strength in the barrel - the same process used across Enkei's entire Racing Series, from the RPF1 to the GTC02
• Developed from direct motorsport feedback: the NVR5 incorporates engineering lessons from endurance racing, making it suitable for circuit, track day, autocross, and performance street use at the 17-inch fitment level
• Enkei Spec-E Inspected: surpasses JWL standards with a higher drop point in impact testing and 20% additional cycles for both rotary bending and dynamic radial fatigue load tests
• Available in 17 and 18-inch diameters across multiple bolt patterns in Dark Hyper Silver (DHS) and Matte Gunmetal (GM) finishes - Racing Series, Special Order, Limited Availability
• Made in Japan. JWL and VIA certified.

Specifications

• Part Number: 562-785-6530GM
• Wheel Model: NVR5 (Racing Series)
• Wheel Size: 17x8.5 (17-inch diameter, 8.5-inch width)
• Bolt Pattern: 5x114.3
• Offset: +30mm
• Hub Bore: 75mm
• Approximate Backspacing: 5.93 inches
• Finish: Matte Gunmetal (GM)
• Face Profile: M (Middle - moderate concavity)
• Spoke Count: 10 (5 twin-spoke pairs / 2x5 split-spoke layout)
• Construction: One-Piece Flow-Formed Aluminum Alloy with MAT Technology
• Key Engineering Details: Twin Radiation Dimples, H Cross Spoke cross-section, CAE-optimized for endurance racing
• Manufactured In: Japan
• Lug Style: Exposed Lugs (integrated lug holes in spoke design)
• Finish Warranty: 1 Year
• Structural Warranty: Manufacturer's Lifetime
• Series: Racing Series - Special Order (Limited Availability)
• Certifications: Spec-E Inspected, JWL, VIA

Included Components

• 1x Enkei NVR5 Wheel (17x8.5 / 5x114.3 / +30 / Matte Gunmetal / Middle Face)
• 1x Center Cap
• 1x Valve Stem
• Note: Lug nuts, hub rings, and TPMS sensors are NOT included

Product Description

The Enkei NVR5 (Part# 562-785-6530GM) is a 17x8.5 one-piece flow-formed aluminum alloy wheel in Matte Gunmetal finish, part of Enkei's Racing Series and representing the more subdued, competition-focused finish option in the NVR5 lineup alongside the Dark Hyper Silver (DHS). Where the DHS delivers a premium multi-layered light-shifting metallic character, the Matte Gunmetal (GM) finish takes the NVR5's twin-spoke face and wraps it in a flat, purposeful dark gray that communicates function over flash - a finish that suits the NVR5's endurance racing origins and aligns naturally with both track-prepped builds and daily-driven performance street cars. At 17x8.5 / +30mm with a Middle (M) face profile, this is a balanced, wide-barrel 5x114.3 fitment for sport compacts, sport sedans, and serious track day builds that want genuine Racing Series engineering at a 17-inch diameter.

The NVR5's engineering distinguishes it from conventional Racing Series wheels at this price point through three compounding structural technologies. Twin Radiation Dimples - machined three-dimensional curved depressions in each spoke face - remove targeted mass while increasing spoke surface area for improved brake heat dissipation during extended track sessions. The H Cross Spoke cross-section machines away the spoke sides in an H-beam profile, removing material from the lowest-stress zones while preserving bending and torsional rigidity. And the MAT flow-forming process densifies the rim section's aluminum grain structure under high pressure to near-forged tensile strength levels, producing a barrel with the structural properties of a forged wheel at a lower cost - all confirmed through Enkei's Spec-E certification, which requires a higher impact drop point and 20% more fatigue test cycles than the JWL baseline.

The NVR5 is a Special Order Racing Series item manufactured in Japan - lead times vary by retailer. The Matte Gunmetal finish should be maintained with pH-neutral, matte-compatible wheel cleaners - gloss-enhancing products, wax, and sealants should be avoided to preserve the flat surface character. The +30mm offset on an 8.5-inch barrel is a low-offset configuration that positions the wheel face further outward than stock on most 5x114.3 platforms - verify fender clearance before mounting tires. Lug nuts, hub rings, TPMS sensors, and valve stems are not included. Sold individually - a set of four is recommended for a complete upgrade.
