Edelbrock 22783 Max-Fire Coil-On-Plug Set for 2004-2008 Ford 4.6L/5.4L 3V V8

Vehicle Fitment

• 2005-2008 Ford Mustang GT (4.6L Triton 3V V8)
• 2004-2008 Ford F-150 (4.6L / 5.4L Triton 3V V8; all cab and bed configurations)
• 2005-2008 Ford Expedition (5.4L Triton 3V V8; all trims including EL/Max)
• 2006-2008 Ford Explorer (4.6L Triton 3V V8)
• 2007-2008 Ford Explorer Sport Trac (4.6L Triton 3V V8)
• 2006-2008 Lincoln Mark LT (5.4L Triton 3V V8)
• 2005-2008 Lincoln Navigator (5.4L Triton 3V V8; all trims including L)

Fitment Notes

• Fits 3-valve (3V) Ford Modular V8 engines only - does NOT fit 2-valve (2V) engines (1998-2004 applications); use Edelbrock #22781 for 2-valve applications
• Does NOT fit 4-valve (4V) DOHC engines such as the SVT Cobra, Mach 1, or Mustang GT500; use Edelbrock #22784 for those applications
• Coils are marked "8L3E" on the top of the housing - confirm this marking matches your OEM coil before installation
• Designed for use with 16mm spark plugs as fitted to 3-valve Modular engines
• Also compatible with supercharged, turbocharged, and E85-converted 3-valve applications

Features

• Higher resistance windings than OEM deliver increased energy and voltage output for a larger, hotter spark
• Improved cold-start reliability and smoother idle quality compared to stock ignition coils
• High-temperature silicone spark plug boots rated to 550°F for superior heat resistance in tight engine bays
• Stainless steel spark plug spring contact with ferrite lug minimizes electromagnetic and radio frequency interference (EMI/RFI)
• Corrosion-resistant housing sealed with high-temperature epoxy for shock, vibration, and thermal cycle resistance
• Direct coil-on-plug bolt-on installation - no wiring modifications required
• Ideal for performance builds including supercharged, turbocharged, and E85-fueled applications
• Sold as a complete set of 8 coils - replaces all coils on a V8 engine in one purchase

Specifications

• Part Number: 22783
• Coil Style: Coil-On-Plug (COP)
• Coil Shape: Round
• Coil Color: Black with Red Accent
• Internal Construction: High-Temperature Silicone
• Maximum Voltage: 26,000 V
• Turns Ratio: 61:1
• Boot Length: 4 in.
• Boot Material: High-Temperature Silicone (rated to 550°F)
• Spring Contact Material: Stainless Steel with Ferrite Lug
• OEM Reference: 3L3E-12A366-CA / 3L3Z-12029-BA / 3L3U-12A366-BB
• Quantity: Set of 8

Included Components

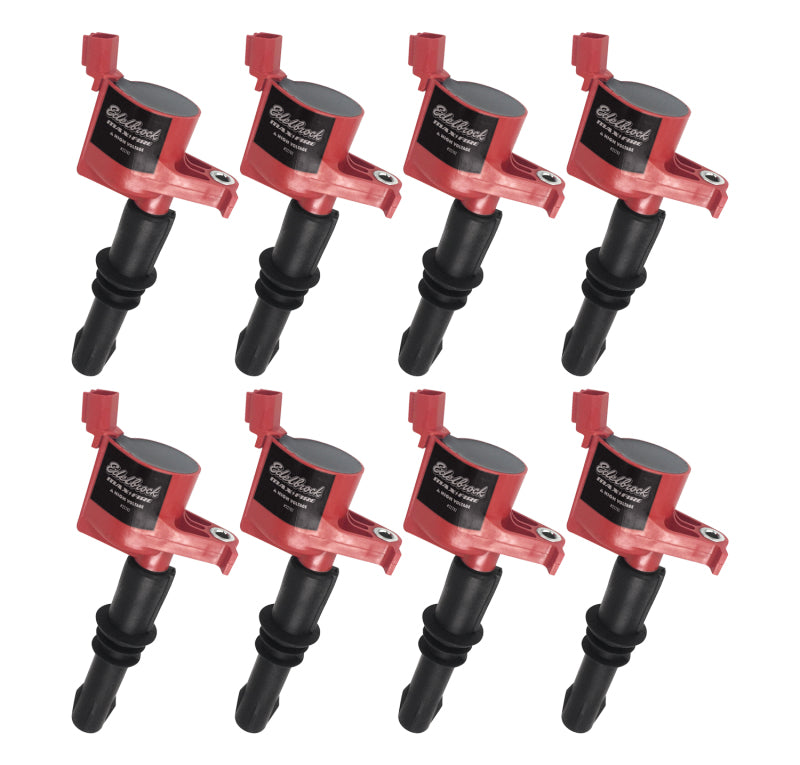

• 8x Edelbrock Max-Fire Coil-On-Plug Ignition Coils (complete set for one V8 engine)

Product Description

The Edelbrock 22783 Max-Fire Coil-On-Plug Ignition Coil Set is a direct-fit performance upgrade for all 2004-2008 Ford and Lincoln vehicles equipped with the 3-valve 4.6L or 5.4L Triton V8 - including the Mustang GT, F-150, Expedition, Explorer, Explorer Sport Trac, Lincoln Mark LT, and Navigator. Compared to OEM coils, the Max-Fire units use higher-resistance primary and secondary windings to generate greater voltage output at higher RPM, resulting in a hotter, more consistent spark. The improvement is especially noticeable on modified engines - those running a supercharger, turbocharger, or E85 fuel - where stock coils can struggle to maintain ignition efficiency under increased cylinder pressure.

Each coil is sealed with high-temperature epoxy for long-term shock and vibration resistance, and the silicone boots are rated to 550°F to handle even the most heat-intensive under-hood environments. Installation is a direct bolt-on swap with no wiring changes required. For replacement of a single failed coil, the identical unit is available individually as Edelbrock #22782. Buyers should confirm their engine is a 3-valve (3V) variant before ordering - 2-valve and 4-valve Ford Modular engines use different coil designs.
