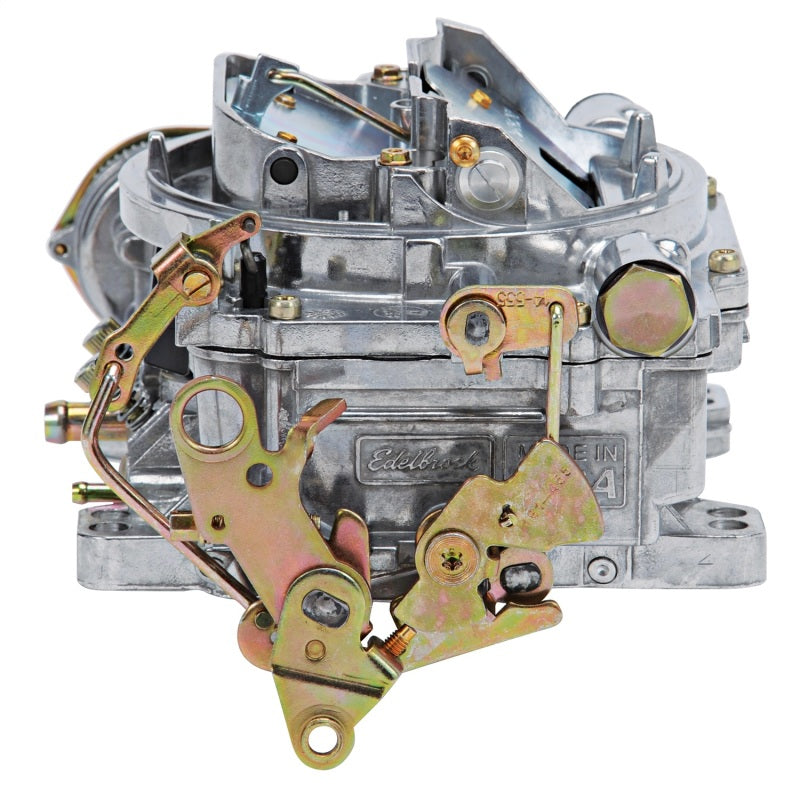

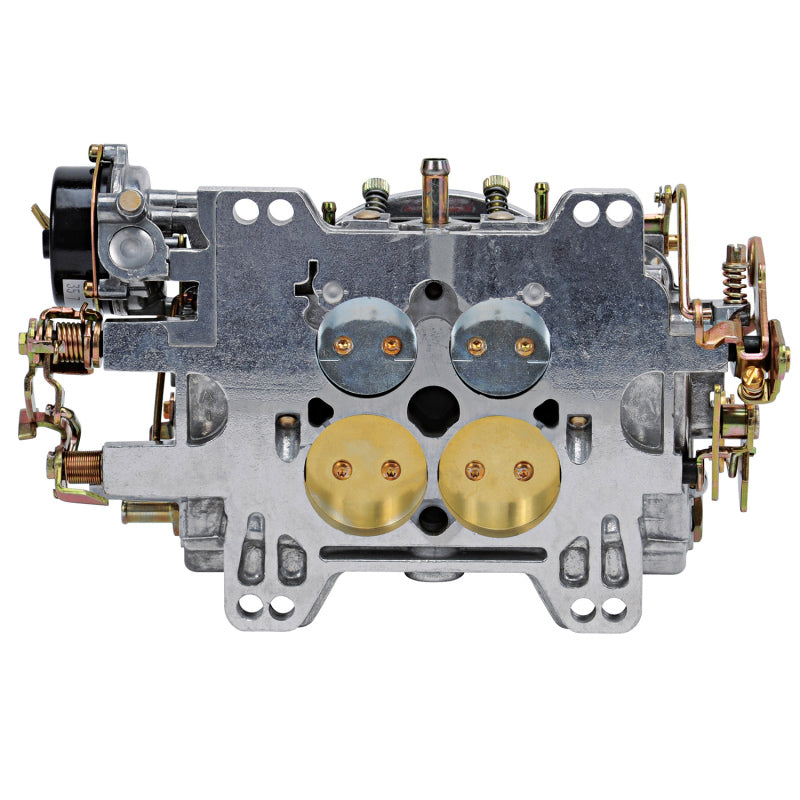

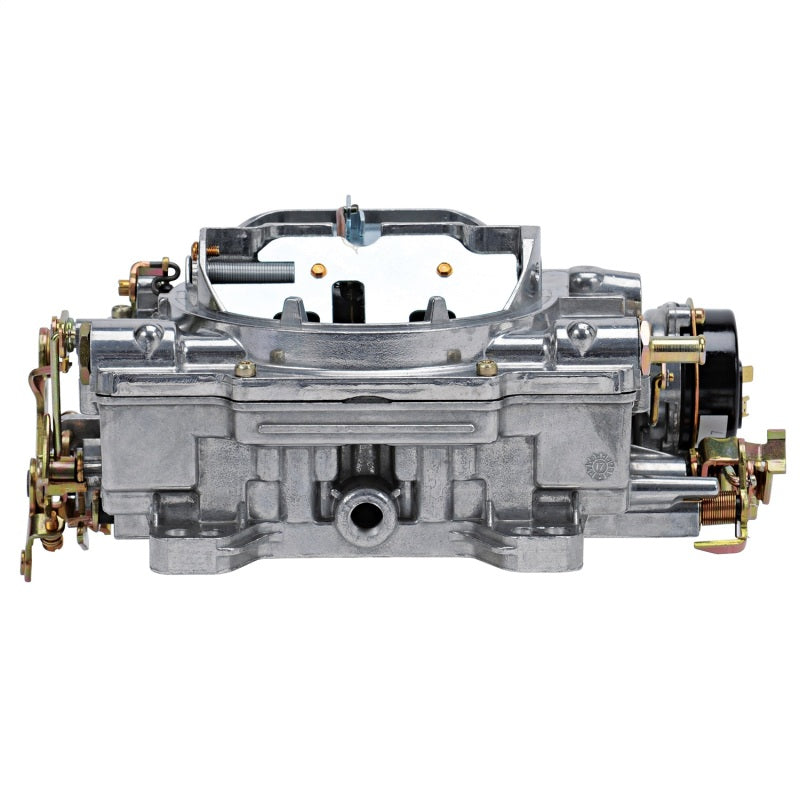

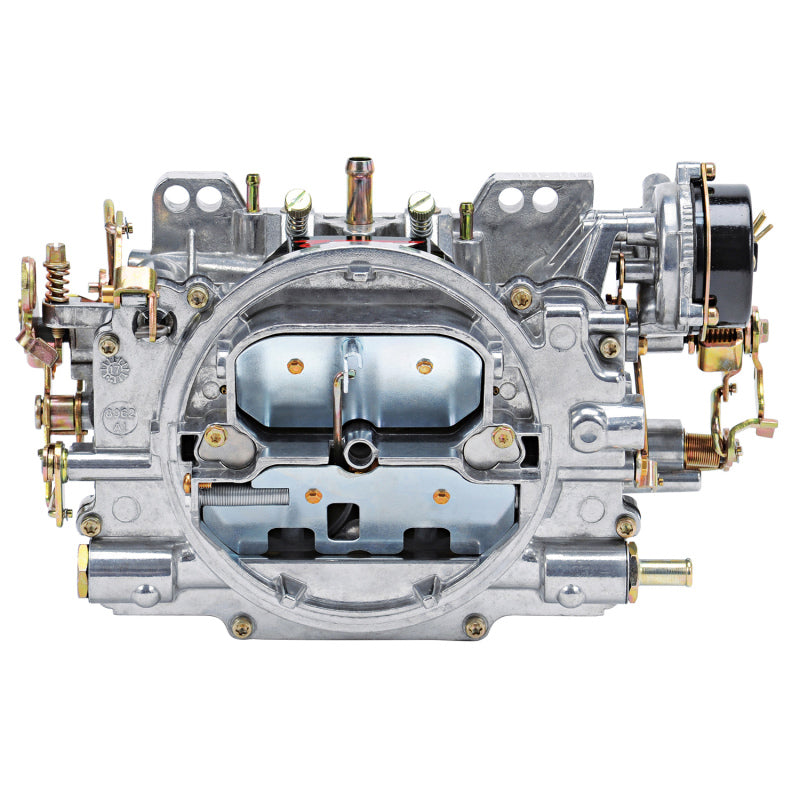

Edelbrock 1913 800 CFM AVS2 Carburetor with Electric Choke for High-Performance

Vehicle Fitment

• Universal fitment for high-performance small- and big-block engines
• Compatible with Edelbrock Performer and Performer RPM intake manifolds
• Not compatible with EGR applications

Features

• 800 CFM airflow capacity

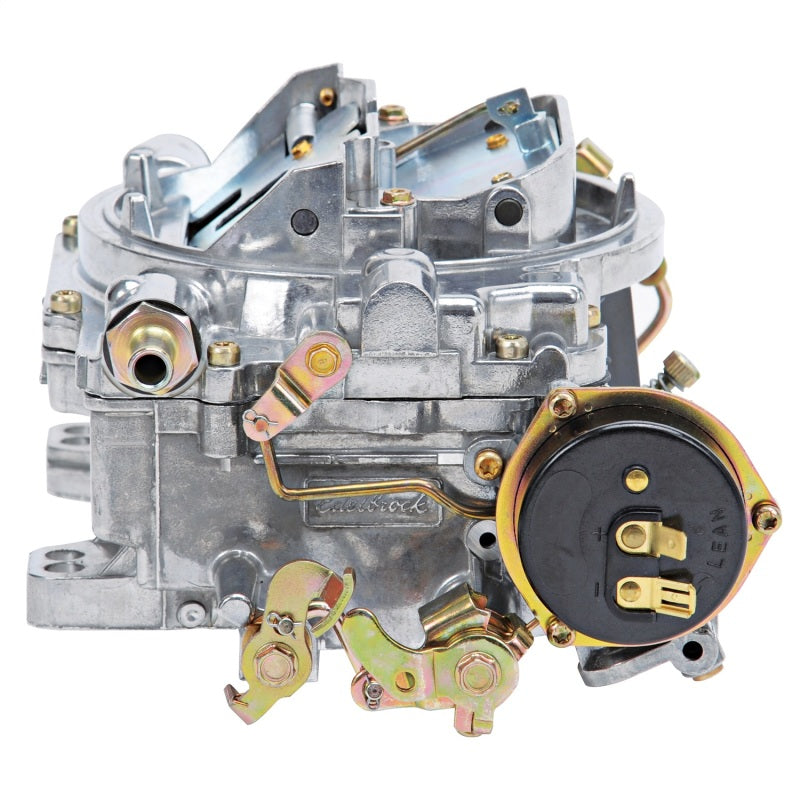

• Electric choke for improved cold starts
• Satin finish for a clean, professional appearance
• Non-EGR design for enhanced performance
• Annular flow primary boosters for superior fuel atomization
• Qwik-Tune secondary air valve for easy tuning
• Dual vacuum ports (timed and full) for ignition advance
• Primary jet size: 0.095
• Secondary jet size: 0.095
• Metering rods: 0.070 x 0.052
• Primary bore diameter: 1.44 inches
• Secondary bore diameter: 1.6875 inches
• Main venturi diameter: 1.19 inches
• Body height: 3.25 inches

Specifications

• Part Number: 1913
• Material: Aluminum
• Finish: Satin
• Choke Type: Electric
• CFM Rating: 800
• Barrel Quantity: 4
• Flange Type: Square bore
• Secondary Type: Mechanical
• Fuel Inlet: Dual
• Primary Jet Size: 0.095
• Secondary Jet Size: 0.095
• Metering Rod Size: 0.070 x 0.052
• Main Venturi Diameter: 1.19 inches
• Body Height: 3.25 inches

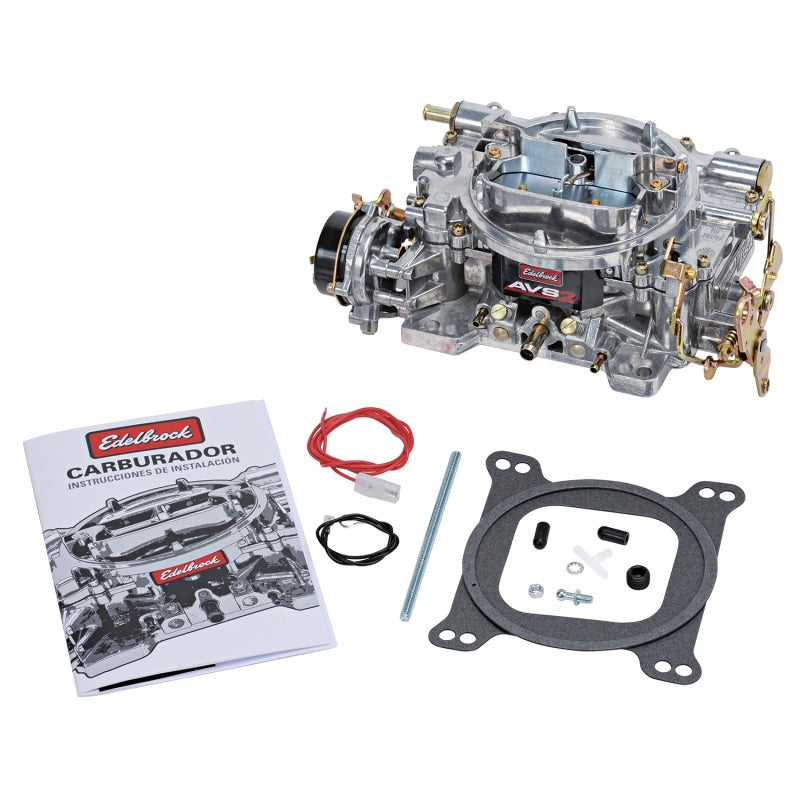

Included Components

• 1x Edelbrock 1913 AVS2 Carburetor
• 1x Installation Hardware Kit
• 1x Instruction Manual

Product Description

The Edelbrock 1913 AVS2 Carburetor is a high-performance 800 CFM carburetor designed for small- and big-block engines. It features an electric choke for improved cold starts and a satin finish for a clean, professional appearance. The non-EGR design enhances performance by eliminating exhaust gas recirculation.

This carburetor is calibrated with primary and secondary jet sizes of 0.095 and metering rods of 0.070 x 0.052, ensuring optimal fuel delivery for a variety of engine configurations. The dual vacuum ports (timed and full) allow for precise ignition advance control.

Ideal for applications using Edelbrock Performer and Performer RPM intake manifolds, the Edelbrock 1913 AVS2 Carburetor offers reliable performance and ease of installation. Please note that this carburetor is not compatible with EGR applications.
