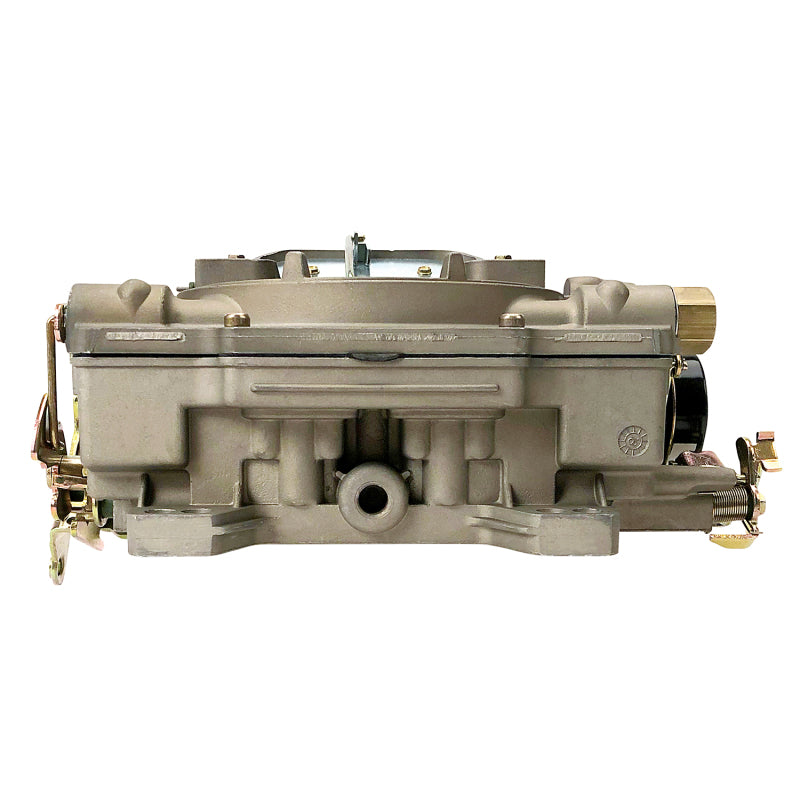

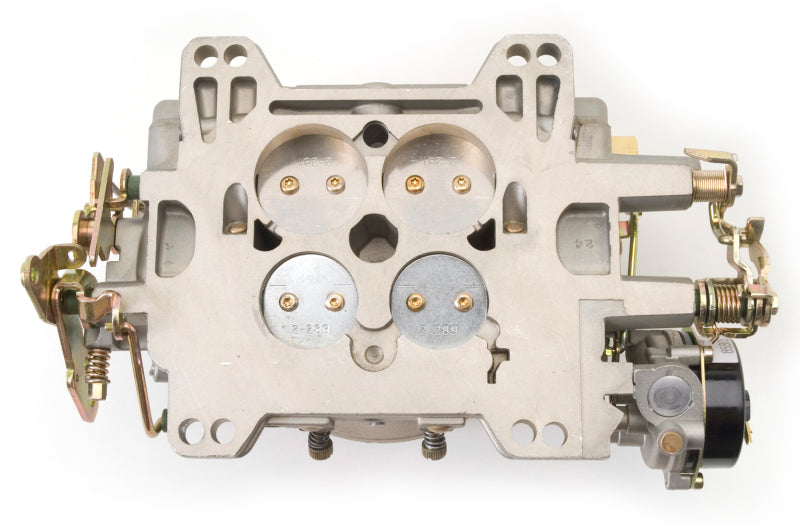

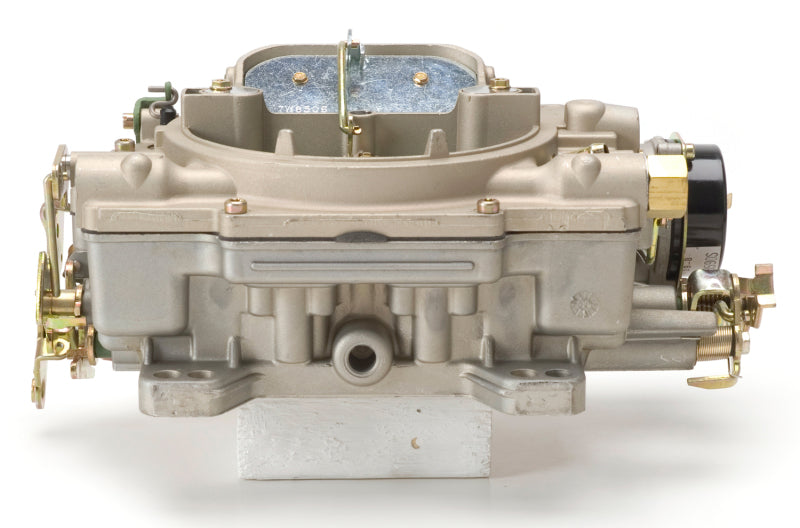

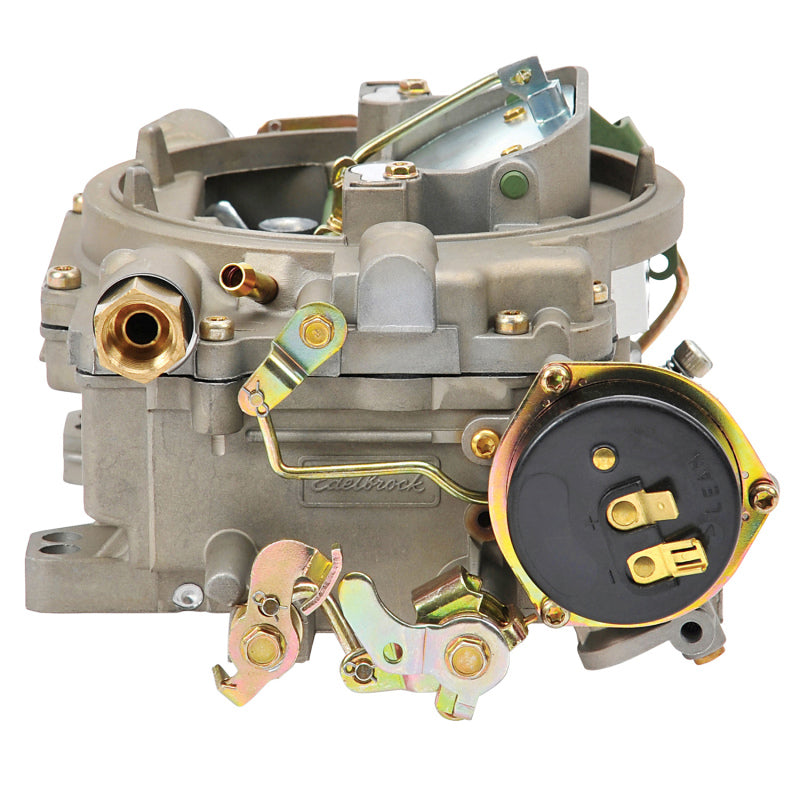

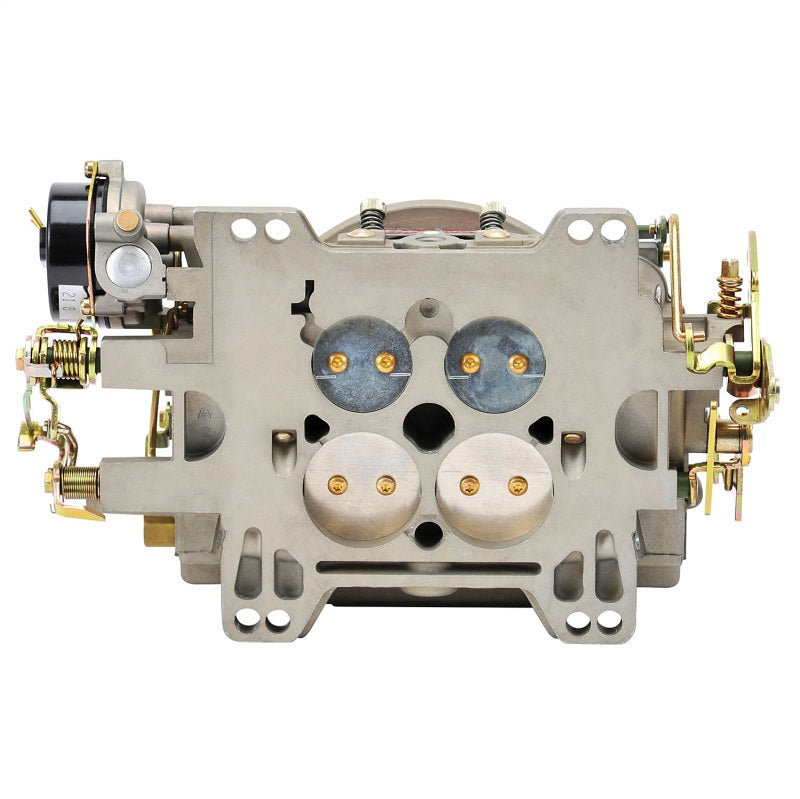

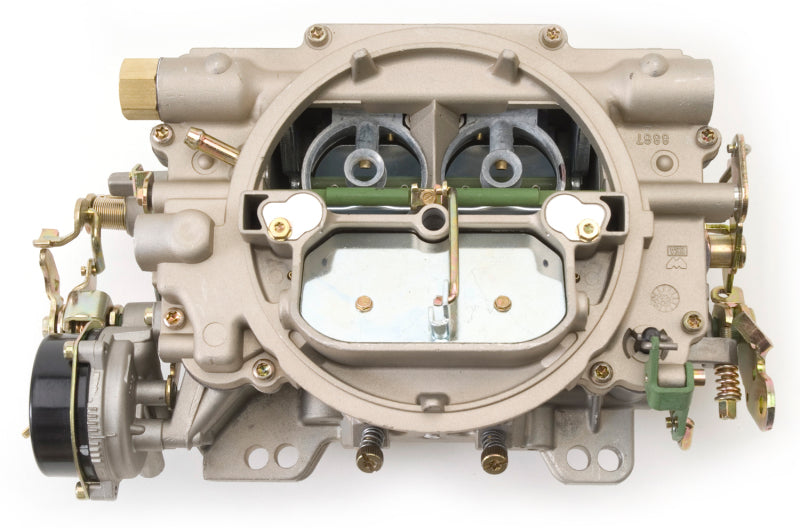

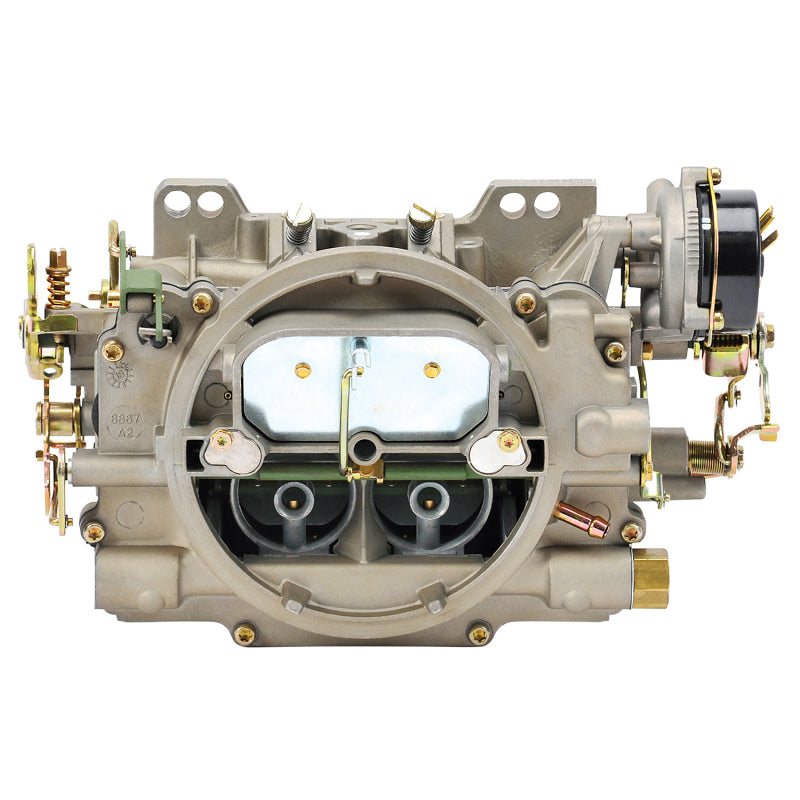

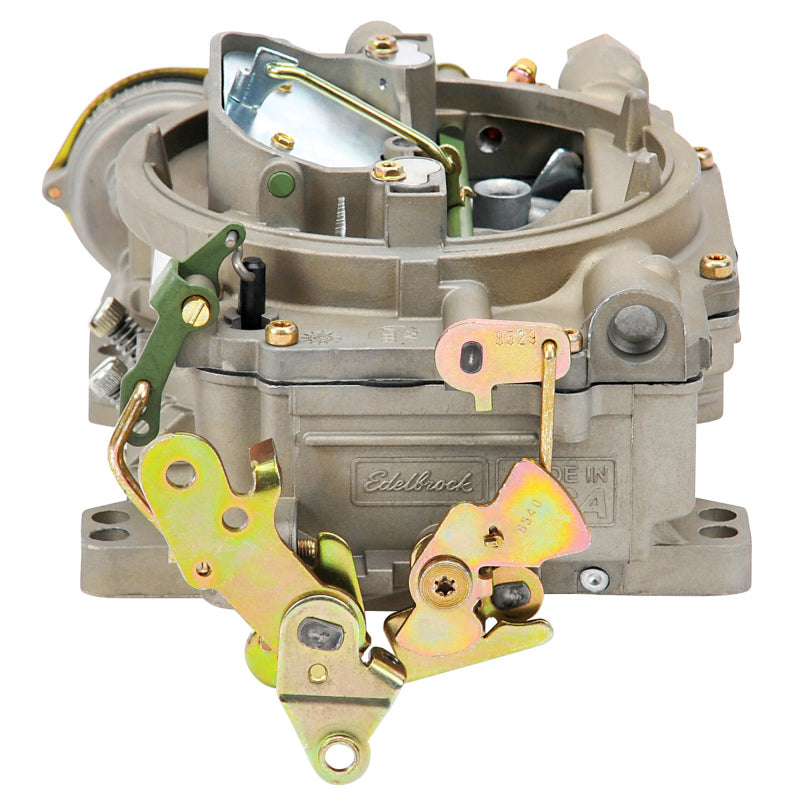

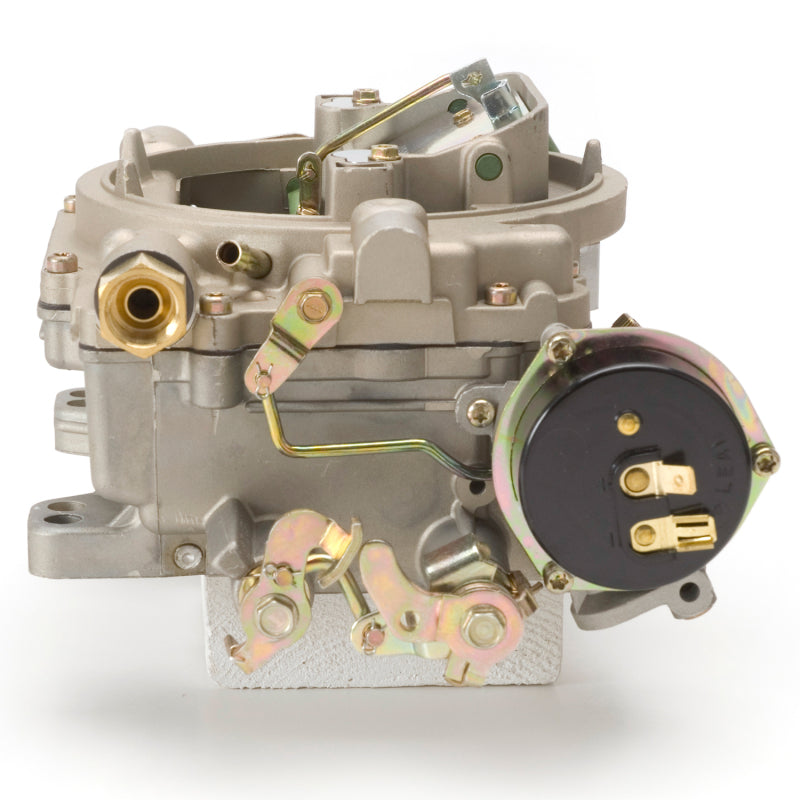

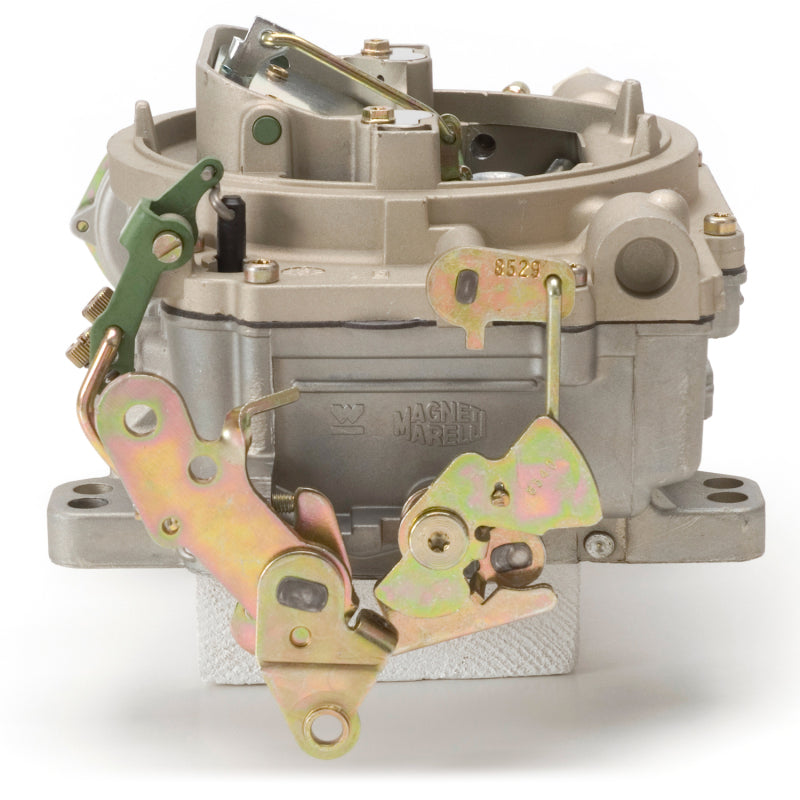

Edelbrock 1409 600CFM 4-Barrel Electric-Choke Marine Carburetor

Vehicle Fitment

• Universal / Multi-Fit - intended for small-block V8 and some V6 marine and street engines using a square-bore 4-barrel intake manifold, non-EGR, non-computer-controlled fuel/ignition systems.

Features

• 600 CFM airflow - suitable for small-block V8 marine or street use
• 4-barrel square-bore flange (standard "4150" pattern) for wide manifold compatibility
• Electric choke for improved cold-start and easy starting
• All-aluminum, two-piece body with zinc-dichromate finish for corrosion resistance and weight savings
• Rear-pivot float design with simple tub-style fuel bowls - reduces leak points and simplifies maintenance
• Metering-rod circuit instead of power-valve - more stable tuning and unaffected by backfires
• Single fuel inlet (3/8" inverted-flare fitting) - works with typical fuel pump / filter setups
• Compliant with marine use requirements (e.g., flame-arrestor flange, modified bowl venting, marine-rated throttle shafts and linkage components)

Specifications

• Airflow: 600 CFM
• Barrels: 4 (square-bore)
• Choke: Electric
• Primary Bore Diameter: 1.44 in
• Secondary Bore Diameter: 1.69 in
• Main Venturi Diameter: ~1.19 in
• Jets: Primary .098", Secondary .101"
• Metering Rods: .068 x .047 in
• Body Height: ≈ 3.25 in (base to air horn)
• Fuel Inlet: Single, 3/8" inverted-flare fitting
• Finish: Zinc-dichromate / gold-iridited aluminum
• Secondary Type: Mechanical (air-valve / mechanical secondary)
• Emission / EGR: Non-EGR / non-emissions-controlled applications only

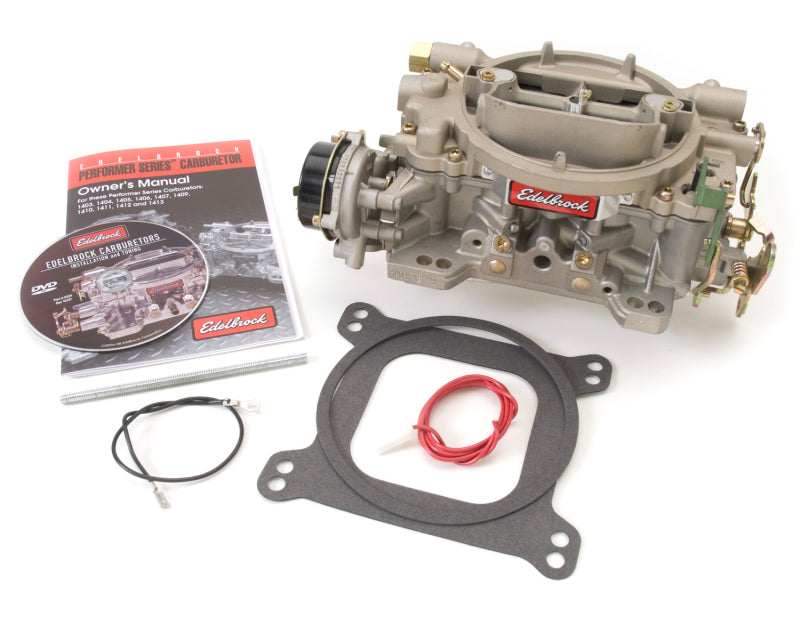

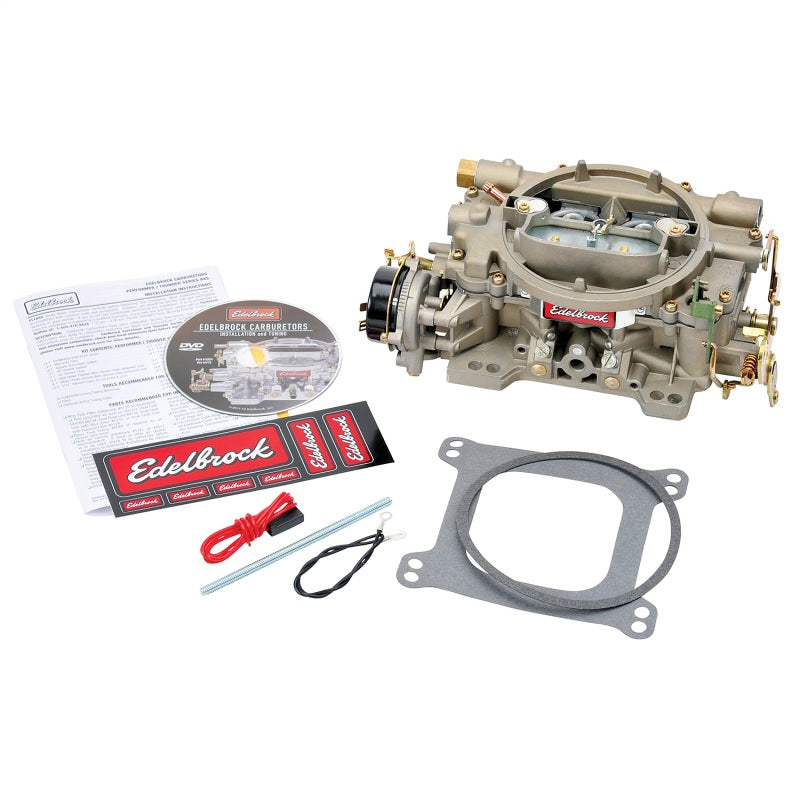

Included Components

• 1x Square-Bore Base Gasket
• 1x Air Horn Gasket
• 1x Air Cleaner Stud
• 1x Red Choke Positive Wire (for electric choke)
• 1x Black Choke Ground Wire (for electric choke)
• Required vacuum/vent plugs and fittings as per carburetor kit
• Installation instructions & warranty card

Product Description

The Edelbrock 1409 is a 600 CFM, 4-barrel square-bore carburetor engineered primarily for marine and small-block V8 applications - though it can also be used in street cars or other suitable gasoline engines with compatible manifolds and non-computer-controlled fuel/ignition setups. Its all-aluminum two-piece body with corrosion-resistant finish makes it well-suited for marine environments, and the electric choke simplifies cold-start and warm-up. The simple rear-float design with tub-style fuel bowls reduces leak paths and eases maintenance, while the single fuel inlet and standard square-bore flange maximize manifold compatibility.

By using metering-rod circuitry instead of traditional power-valve design, the 1409 tolerates engine backfires and avoids common power-valve failures, offering stable and reliable tuning over time. Factory-installed jets and rods provide a balanced setup out of the box, but the 1409 remains easily adjustable for custom tuning. Because it is a universal-fit carburetor, proper fitment depends on matching your engine displacement, intake manifold flange type (square-bore 4-bbl), fuel type (gasoline only), and ensuring your engine/fuel system does not rely on EGR, EFI, or computer-controlled fuel delivery.
