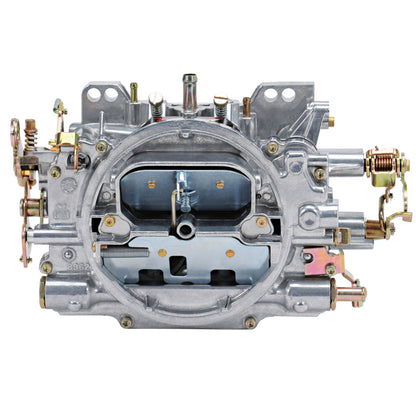

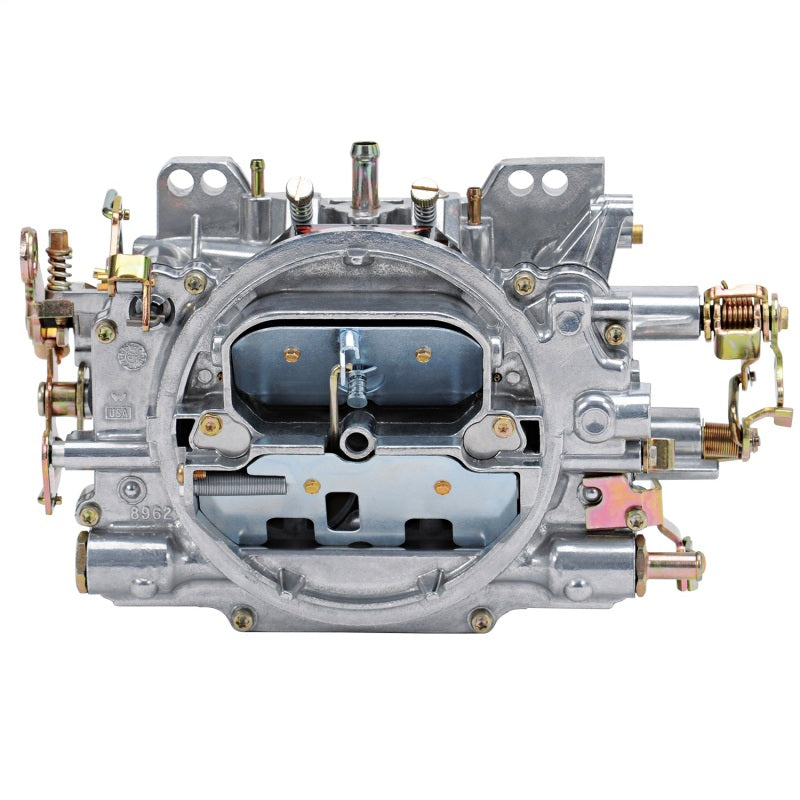

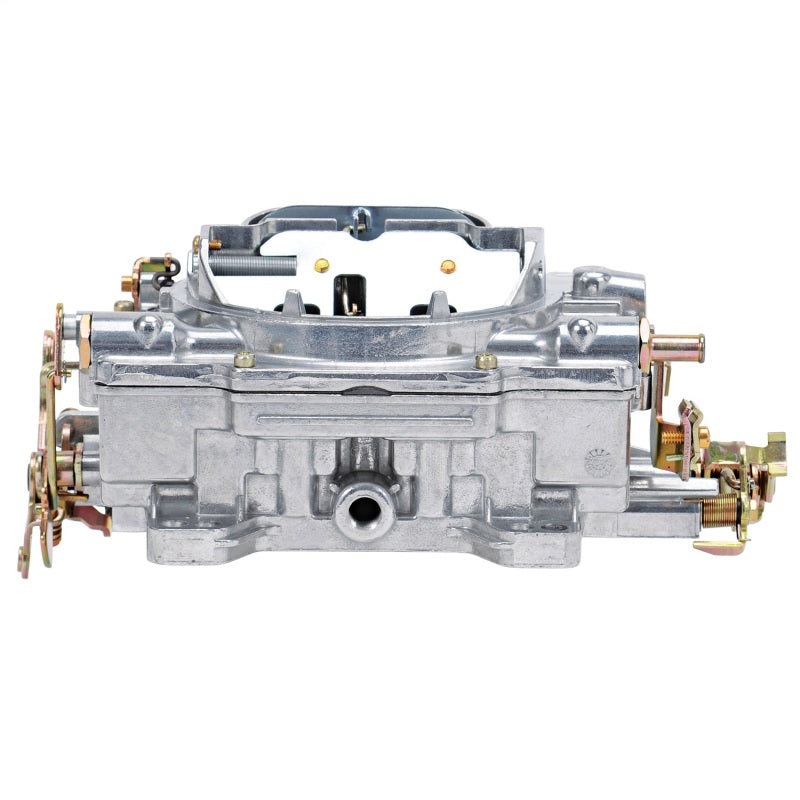

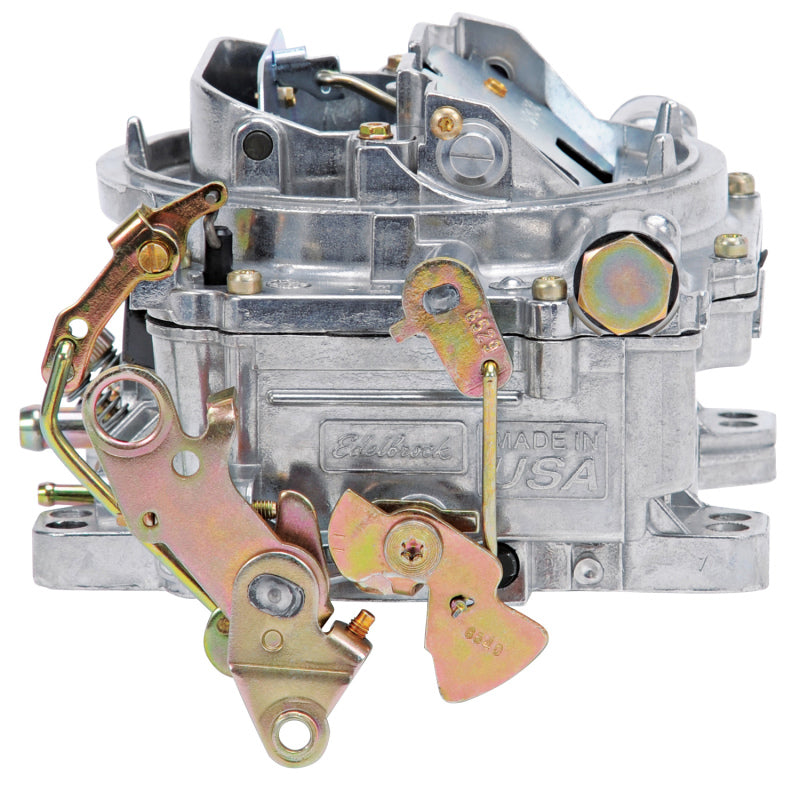

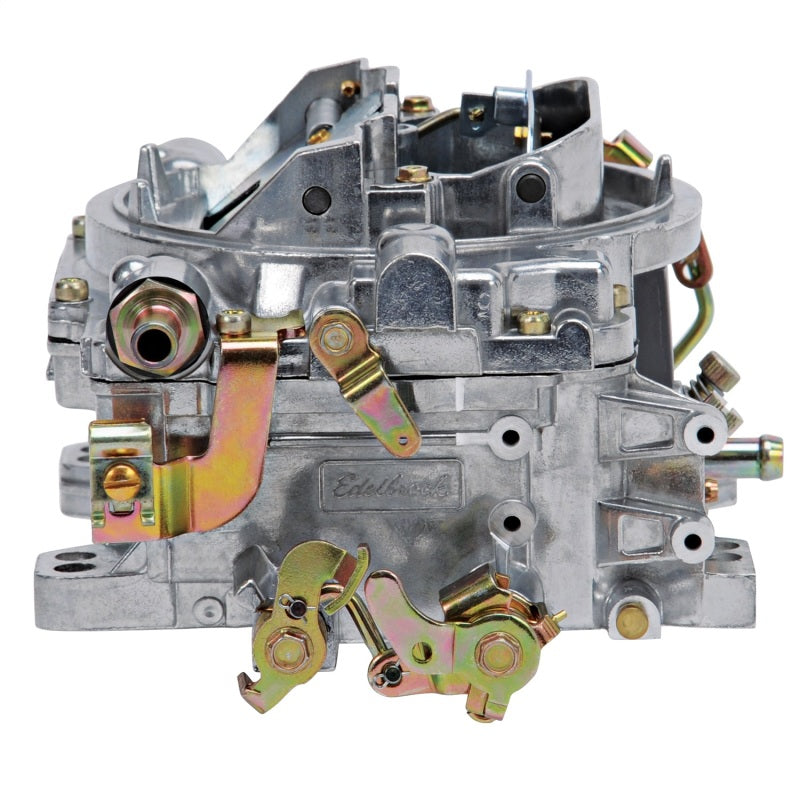

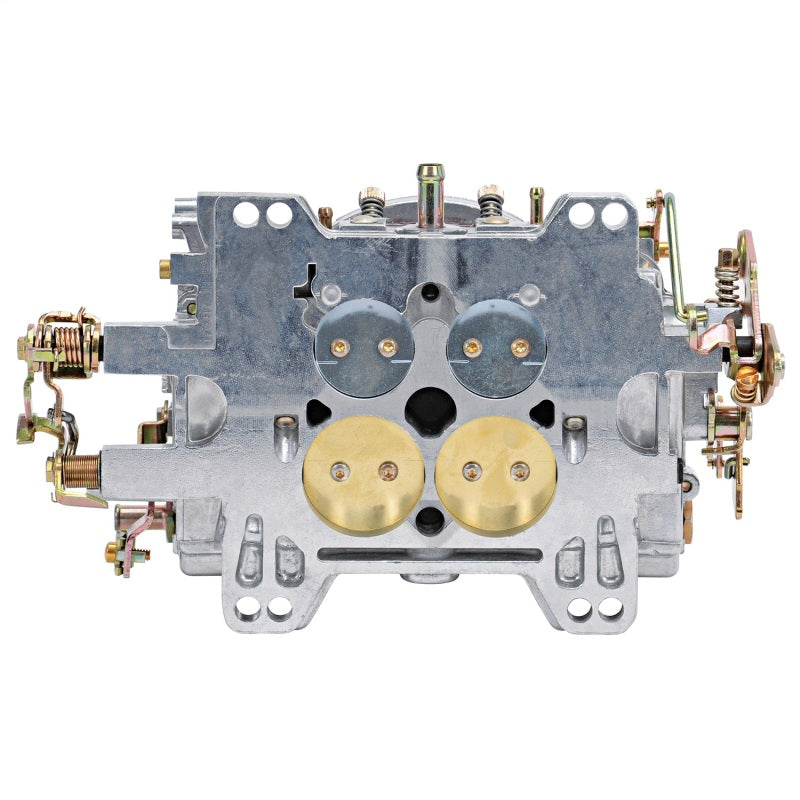

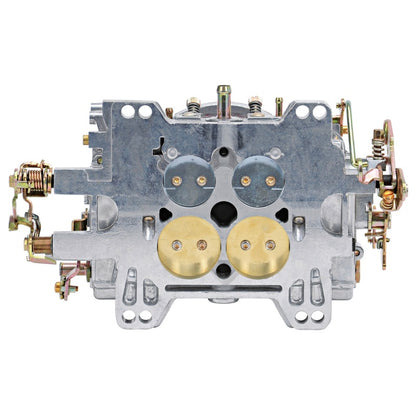

Edelbrock 1902 AVS2 500CFM 4-Barrel Manual-Choke Carburetor

Regular price: $476.95
Regular price
Sale price: $476.95

Shipping calculated at checkout.

In Stock: 12

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns

Product Specification:

SKU:EDE1902

MPN: 1902

UPC: 085347019021

Weight: 8.8 lb

Inventory: 12

Type: Carburetors

Vehicle Fitment

Universal / Multi-Fit - suitable for small-cubic-inch gasoline V8 (or compatible) engines using a square-bore 4-barrel intake manifold, non-EGR / non-EFI / non-computer controlled fuel/ignition systems.

Features

500 CFM airflow - designed for small-displacement street or light-performance engines
4-barrel, square-bore (4150 pattern) flange - wide compatibility with standard 4-bbl intake manifolds
Manual choke - simple, reliable cold-start system without electrical components
Annular-flow primary boosters - improved fuel atomization and smoother throttle response
Aluminum, satin-finish body - lightweight, corrosion-resistant and durable
Mechanical secondary (air-valve) - straightforward operation and easy maintenance
Includes both timed and full-vacuum ports - compatible with vacuum-advance distributors or ignition timing setups
Factory-installed jets and metering rods for balanced street use - Primary & Secondary jets .095, Primary rod .070 x .052, with 5" Hg step-up spring

Specifications

Airflow: 500 CFM
Barrels: 4 (square-bore / 4150 flange)
Choke Type: Manual
Bore Diameters: Primary ~1.44 in; Secondary ~1.6875 in
Main Venturi Diameter: ~1.19 in
Jets: Primary .095, Secondary .095
Metering Rod: .070 x .052 in
Body Height: 3.25 in (base to air horn)
Construction: Aluminum body, satin finish
Fuel Type: Gasoline - not designed for alcohol, E85 or race fuels
Secondary Operation: Mechanical (air-valve)
Emission / EGR: Non-EGR / non-emissions-controlled applications only

Included Components

1x Edelbrock 1902 carburetor body (500 CFM, 4-barrel, manual choke)
1x Base gasket / seal for square-bore flange mounting
1x Air-horn gasket
Factory-installed jets and metering rods (Primary .095, Secondary .095, Rod .070x.052)
Step-up spring (5" Hg) for metering rod circuit
Built-in vacuum port caps / fittings as required

Product Description

The Edelbrock 1902 AVS2 carburetor is a 500 CFM 4-barrel, manual-choke unit built for small-displacement street or light-performance gasoline engines that use a standard square-bore 4-barrel intake manifold and run without computerized fuel or emission controls. Its annular-flow primary boosters improve fuel atomization and throttle response, while the mechanical secondary and aluminum body make this carburetor rugged and easy to maintain. The satin-finished body gives a clean look and helps resist corrosion - useful for classic cars, small-block V8 swaps, or lightweight street builds.

Out of the box, 1902 comes with factory jets and rods optimized for balanced street performance. The included vacuum ports support vacuum-advance distributors or traditional ignition-timing setups. Because this is a universal-fit carburetor (not vehicle-specific), correct installation depends on matching the intake manifold flange, fuel system setup, and engine type (gasoline, carb-fed, non-EFI). Proper tuning of float levels, fuel pressure, and ignition timing is recommended for optimal performance and reliability.
