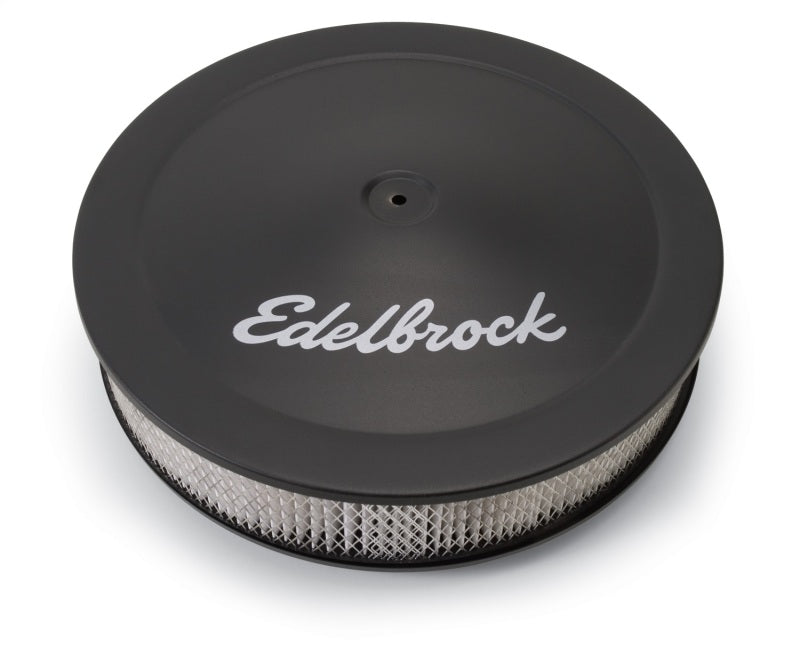

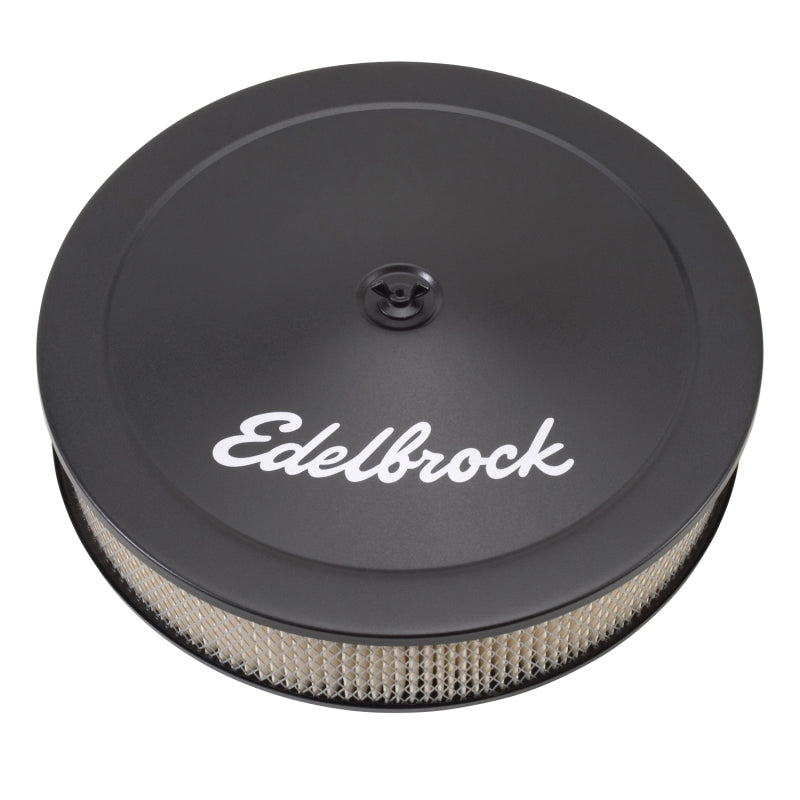

Edelbrock 1223 Pro-Flo 14in Black Round Air Cleaner 3in Filter 5-1/8in Carb

Vehicle Fitment

• Universal Fitment - Compatible with all carburetors using a 5-1/8 inch (5.125 inch) carburetor neck diameter
• Fits Edelbrock Performer Series, Thunder Series AVS, Holley 4-barrel, Thermo-Quad, Rochester Quadrajet (Q-Jet), and Carter AFB carburetors
• Designed to fit all Edelbrock square-bore and Q-jet carburetors

Fitment Notes

• This is a universal air cleaner assembly sold by carburetor neck diameter - verify your carburetor uses a 5-1/8 inch (5.125 inch) air horn diameter before ordering.
• The 1223 features a dropped base (deep flange) with a 0.625 inch drop - this is 3/8 inch taller than Edelbrock #1207 and #1206. If hood clearance is tight, compare net height from carb flange (3.75 inches) against available clearance before ordering.
• Knock-outs are provided in the air cleaner base for use with Edelbrock crankcase ventilation adapter #1205 (sold separately). If crankcase ventilation routing through the air cleaner base is required, the adapter and appropriate hose must be purchased separately.
• The crankcase ventilation nut (#325-4219) and vent adapter (#325-1205) are recommended when using the base knock-outs - sold separately.
• This air cleaner assembly is NOT compatible with 2-barrel carburetors or carburetors with a neck diameter other than 5-1/8 inch.
• Hardware included: zinc-plated wing nut and carburetor stud. Air filter element (3-inch paper) is included.

Features

• 14-inch outside diameter round air cleaner - the standard full-size round air cleaner diameter for V8 muscle car and hot rod applications, providing ample filter surface area for unrestricted airflow to 4-barrel carburetor setups across a wide range of street performance and show engine builds
• 3-inch tall white paper filter element provides effective filtration across the full 14-inch diameter - balancing filtration efficiency with sufficient airflow for naturally aspirated 4-barrel carburetor applications from mild street builds to moderate performance engines
• Dropped base (deep flange) design with 0.625 inch drop - the dropped base lowers the overall stack height of the air cleaner assembly relative to the carburetor mounting flange, helping manage hood clearance on vehicles where a standard flat-base air cleaner would be too tall, while maintaining the 3-inch filter height for full flow capacity
• Stamped from 18-gauge steel for a rigid, durable housing that resists deformation under engine vibration and maintains a consistent seal at the carburetor flange - heavier gauge than many competing air cleaner assemblies in this price range
• Black powder coat finish on the top and base - a durable, heat-resistant finish that resists the underhood temperatures, oil vapor, and fuel vapors typical of carbureted V8 engine compartments, and coordinates with Edelbrock's Signature Series black valve covers and other black-finish engine dress-up components
• Edelbrock logo embossed on the top - the Pro-Flo Series styling coordinates directly with Edelbrock Signature Series valve covers and other Edelbrock engine dress-up components for a cohesive underhood appearance
• Crankcase ventilation knock-outs in the base - pre-stamped knock-out ports that can be opened to accept Edelbrock's crankcase ventilation adapter (#1205, sold separately) for proper PCV and crankcase breather routing through the air cleaner base, required for emissions compliance and oil vapor management on most street applications
• Zinc-plated wing nut included for tool-free filter removal and installation - convenient for filter inspection and replacement during service intervals
• Compatible with the widest range of popular 4-barrel carburetors using a 5-1/8 inch neck: Edelbrock Performer Series, Thunder Series AVS, Holley 4150/4160, Rochester Quadrajet, Carter AFB, Carter Thermo-Quad, and all other 5-1/8 inch carburetors

Specifications

• Part Number: 1223
• Brand: Edelbrock
• Series: Pro-Flo Series Air Cleaner
• Shape: Round
• Outside Diameter: 14 inches (355.6mm)
• Filter Height: 3.0 inches (76.2mm)
• Net Height from Carburetor Flange: 3.75 inches (95.3mm)
• Base Style: Dropped (Deep Flange)
• Base Drop Distance: 0.625 inches (15.875mm)
• Carburetor Neck Diameter: 5-1/8 inch (5.125 inch / 130.175mm)
• Top Material: 18-gauge stamped steel
• Top Finish: Black powder coat with Edelbrock logo
• Base Material: Steel
• Base Finish: Black powder coat
• Filter Element: 3-inch white paper element (included)
• Wing Nut: Zinc-plated (included)
• Crankcase Ventilation: Base knock-outs provided (adapter sold separately)
• Fitment: Universal - all 5-1/8 inch carburetor neck diameter carburetors
• Quantity: Sold individually

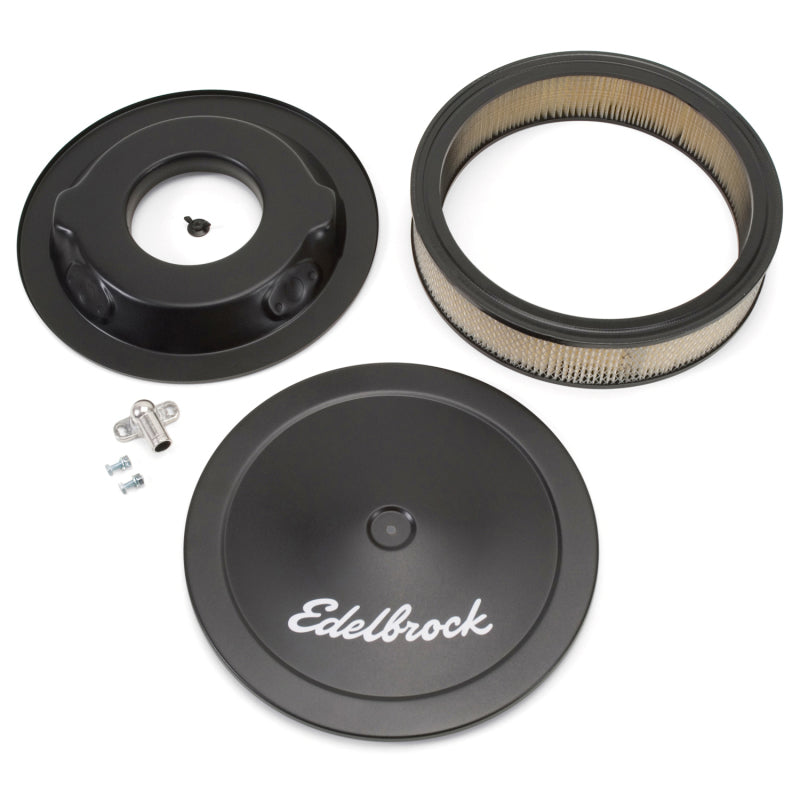

Included Components

• 1x Edelbrock Pro-Flo Air Cleaner Top (Black powder coat, 14-inch diameter, stamped steel)
• 1x Air Cleaner Base (Black powder coat, dropped/deep flange, 5-1/8 inch neck, with crankcase ventilation knock-outs)
• 1x Paper Filter Element (3-inch height, white)
• 1x Zinc-plated Wing Nut
• 1x Carburetor Stud
• Note: Crankcase ventilation adapter (#1205) and nut (#325-4219) are NOT included - purchase separately if crankcase ventilation routing through the base is required

Product Description

The Edelbrock 1223 is a 14-inch round Pro-Flo Series air cleaner assembly in black powder coat finish, designed for carbureted V8 builds using any 5-1/8 inch (5.125 inch) carburetor neck - the standard air horn diameter shared by Edelbrock Performer Series and Thunder Series AVS, Holley 4150/4160, Rochester Quadrajet, Carter AFB, Thermo-Quad, and virtually every other 4-barrel carburetor used in street performance, muscle car restoration, and hot rod applications. The 1223 is the deep flange (dropped base) version in the Pro-Flo lineup - its 0.625 inch base drop lowers the overall assembly height relative to the carburetor flange, addressing hood clearance on vehicles where a flat-base 14-inch air cleaner would be too tall while maintaining a full 3-inch filter height for unrestricted airflow. At 3.75 inches net height from carb flange to the top of the wing nut, it sits 3/8 inch taller than the standard Edelbrock #1207 and #1206 assemblies - giving builders the choice between the standard-height and deep-flange formats based on their specific hood clearance and engine bay geometry.

The 1223 is stamped from 18-gauge steel - a notably heavier gauge than many competing air cleaner assemblies in this price range - producing a rigid housing that resists deformation under engine vibration and maintains a consistent seal at the carburetor mounting flange across service life. The black powder coat finish on both the top and base is durable and heat-resistant, coordinating directly with Edelbrock's Signature Series black valve covers and other black-finish engine dress-up components for a cohesive, professional underhood appearance on black-themed engine builds. The Edelbrock logo is embossed on the top in the same styling as the broader Signature Series lineup. Knock-outs in the base allow the crankcase ventilation adapter (#1205, sold separately) to be installed for proper PCV and breather routing through the air cleaner base - required on most street applications for oil vapor management and emissions compliance. A zinc-plated wing nut and carburetor stud are included for tool-free filter service.

The included 3-inch white paper filter element provides effective filtration across the full 14-inch diameter, balancing filtration efficiency with the airflow capacity required for naturally aspirated 4-barrel carburetor applications from mild street engines to moderate performance builds. The filter is replaceable independently of the housing. The crankcase ventilation adapter (#325-1205) and nut (#325-4219) required to use the base knock-outs are sold separately. Sold individually as a complete air cleaner assembly including top, base, filter element, wing nut, and carburetor stud.
