EBC DP23071 Greenstuff 2000 Rear Brake Pads 2016-2018 Mazda CX-5

Vehicle Fitment

• 2016-2018 Mazda CX-5 (All Trims - Sport, Touring, Grand Touring; 2.0L and 2.5L 4-Cyl; FWD and AWD) - Rear Axle

Fitment Notes

• Rear axle only - this is a rear pad set; front pads for the CX-5 require a separate part number (DP22134 for the front)
• FMSI Pad No. D1846; pad dimensions: 112.3 x 42.7 x 14.4mm; compatible with the solid 302.5mm (5-bolt) rear disc used across all 2016-2018 CX-5 models in all trim and drivetrain configurations; the rear rotor is solid (non-vented) on all CX-5 variants covered by this pad
• Fitment is consistent across all North American trim levels (Sport, Touring, Grand Touring) and both engine variants (2.0L and 2.5L Skyactiv-G) and both FWD and AWD configurations - the rear brake caliper and rotor specification is shared across all variants for the covered model years
• The 2016 CX-5 represents the late-production facelift of the KE-chassis 1st-generation; the 2017-2018 CX-5 is the all-new KF-chassis 2nd generation - both share the D1846 rear pad shape and 302.5mm solid rear rotor specification
• Do not fit upgrade pads to the rear axle unless the same compound upgrade is applied to the front simultaneously; always upgrade both axles together for balanced braking performance; the matching front pad is DP22134 (Greenstuff 2000, FMSI D1623)
• A brake bed-in procedure is required after installation; EBC's Brake-In surface coating accelerates initial bed-in but does not eliminate the requirement
• Sold as a rear pad set only (both rear wheel positions); front brake pads, rotors, hardware, and brake fluid are not included

Features

• Greenstuff 2000 Series compound - an organic and aramid fiber formulation with ceramic granule enhancement; designed for improved stopping power over OEM pads on sport sedans and crossovers in everyday street and spirited highway driving; on the CX-5, where the OEM rear brake compound is tuned for comfort and long life rather than outright friction, Greenstuff provides a meaningful improvement in rear initial bite and pedal feel without disrupting the vehicle's progressive, balanced braking character
• Up to 15% shorter stopping distances vs. stock pads - independent testing at the UK MIRA Motor Vehicle Research Institute demonstrated that Greenstuff stops a vehicle approximately 20 feet shorter than OEM pads from 60 mph; on the CX-5's front-biased brake architecture, improved rear brake response from Greenstuff contributes to more balanced front-to-rear brake force distribution during hard stops
• Reduced brake dust vs. OEM and semi-metallic pads - the organic compound generates less brake dust than conventional semi-metallic OEM-style pads; the CX-5's standard alloy wheels tend to accumulate visible dust staining under normal driving conditions; Greenstuff produces medium dust levels and provides a noticeable improvement over stock on the rear axle, where OEM pad dust is particularly visible due to the smaller swept area and lower pad operating temperatures typical of a rear disc brake on a front-biased crossover
• Rotor-friendly formulation - the Greenstuff compound uses fewer metallic constituents than semi-metallic pads, reducing abrasive wear on the solid 302.5mm rear rotor surface; a practical benefit on the CX-5 where the rear rotors operate at lower sustained temperatures than the front rotors and benefit from a less aggressive pad compound to avoid glazing during light braking and normal stop-and-go driving

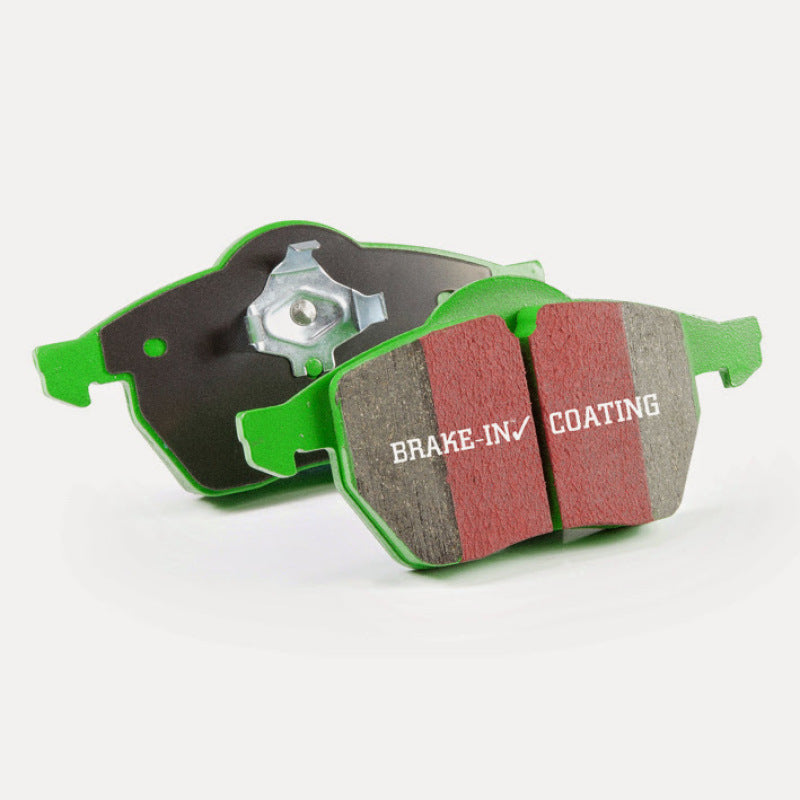

• EBC Brake-In surface coating - each pad is pre-coated with EBC's proprietary brake-in surface treatment on the friction face, enabling safe and effective braking immediately after installation while the pad-to-rotor transfer layer is established; this shortens and simplifies the initial bed-in period
• Fully shimmed, chamfered, and slotted construction - pads include built-in anti-noise shims, pre-chamfered edges to minimize initial contact noise, and a center-line slot for gas venting and surface deglazing; these features produce quiet, vibration-free operation consistent with the CX-5's refined, comfort-oriented cabin character
• ECE R90 approved - Greenstuff 2000 pads carry ECE R90 type approval, confirming they meet the European brake safety standard minimum friction and braking performance thresholds required for street-legal use
• No lead, copper, or toxic sulfides - the Greenstuff 2000 formulation complies with current environmental legislation including copper-reduction standards; it carries the "Leaf Mark" eco-label at the highest N rating for environmental safety
• Manufactured in the UK - EBC brake pads are produced in EBC's UK manufacturing facilities and are subject to quality inspection prior to release; country of origin: GB

Specifications

• Part Number: DP23071
• Brand: EBC Brakes
• Series: Greenstuff 2000
• Compound Type: Organic / Aramid Fiber with Ceramic Granule Enhancement
• Position: Rear
• FMSI Pad No.: D1846

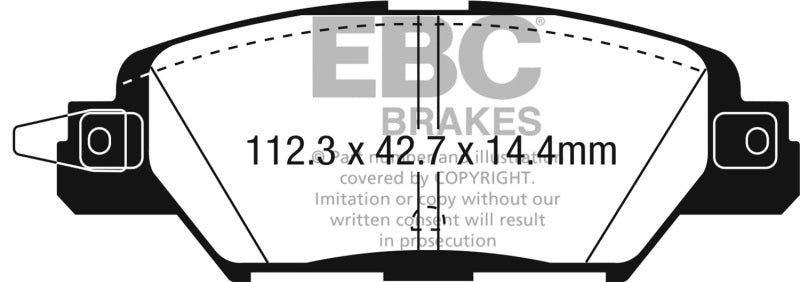

• Pad Dimensions: 112.3 x 42.7 x 14.4mm
• Nominal Friction Coefficient: 0.55
• Compatible Rotor Construction: Solid (Non-Vented)
• Compatible Rotor Diameter: 302.5mm
• Compatible Rotor Height: 39.5mm
• Compatible Rotor Thickness: 10mm
• Compatible Rotor Center Hole Diameter: 68mm
• Bolt Holes: 5
• Quantity: Set (both rear wheel positions)
• Intended Use: Street / Highway - Not for Track or Competition Use
• Approvals: ECE R90; Leaf Mark (N rating)
• Warranty: 1 Year / 10,000 miles of highway use against manufacturing defects; void for race, track, taxi/hire, or competition use
• Country of Origin: United Kingdom

Included Components

• 1x Set of EBC DP23071 Greenstuff 2000 Rear Brake Pads (both rear wheel positions)
• Note: Front brake pads, brake rotors, brake hardware, and brake fluid are NOT included.

Product Description

The EBC DP23071 is a rear brake pad set from the Greenstuff 2000 Series, designed for street and highway use on the 2016-2018 Mazda CX-5 in all trim and engine configurations (Sport, Touring, Grand Touring; 2.0L and 2.5L; FWD and AWD). These are rear-axle pads only; front pads require a separate part number. The FMSI D1846 pad shape fits the solid 302.5mm rear disc caliper used consistently across all North American CX-5 models for the covered model years, spanning both the late KE-chassis (2016) and the full KF-chassis (2017-2018).

The CX-5's OEM rear brake compound is calibrated for long life, low noise, and smooth integration with the front-biased brake balance typical of a compact crossover - the rear brakes carry significantly less braking force than the fronts under normal conditions. Greenstuff 2000 improves on this with up to 15% shorter stopping distances overall, a nominal friction coefficient of 0.55, and a firmer initial bite from cold that improves rear brake contribution during hard stops. The organic aramid fiber compound is gentle on the solid 302.5mm rear rotor, generates less dust than semi-metallic alternatives, and includes EBC's Brake-In surface coating for accelerated bed-in. For optimal brake balance, the matching front Greenstuff pad is DP22134 (FMSI D1623) - both front and rear axles must be upgraded together. Pads carry ECE R90 type approval and the Leaf Mark N environmental rating, and are manufactured in the UK.
