EBC DP41997R Yellowstuff 4000-Series Front Brake Pads for 2009-2022 VW Tiguan

Vehicle Fitment

• 2007-2018 Volkswagen Tiguan (5N) 1.4L-2.0L TSI/TDI (non-Brembo, front)
• 2012-2022 Volkswagen Passat (B7/B8) 1.4L-2.0L TSI/Diesel (front)
• 2011-2018 Audi Q3 (8U/8UG) 1.4L-2.0L TFSI/TDI (front)
• 2010-2020 Volkswagen Sharan/Seat Alhambra (7N) 1.4L-2.0L TSI/TDI (front)

Features

• High-friction aramid compound (~0.60 µ) for strong cold-bite and fade resistance

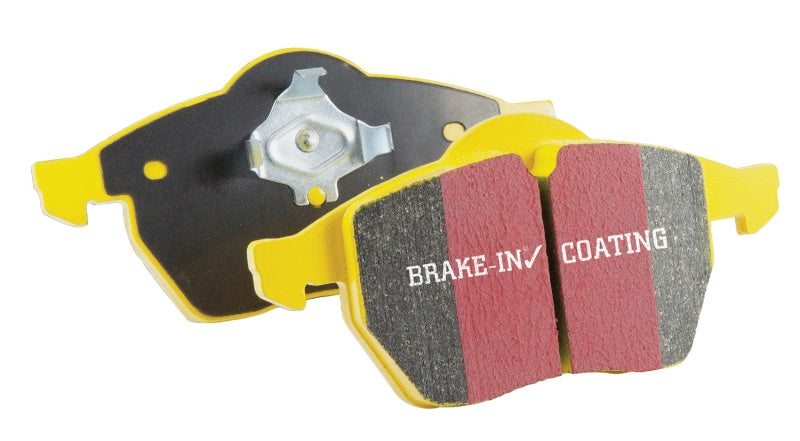

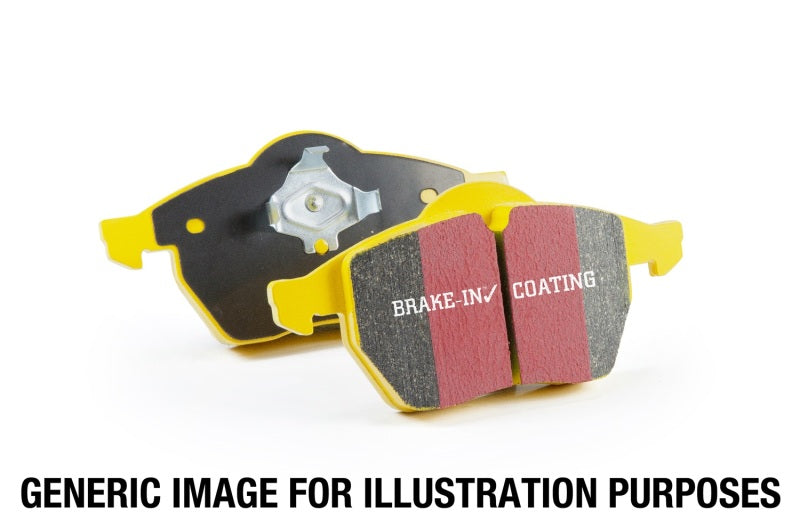

• Brake-In™ surface coating for quick bedding
• R90/ECE-approved - street legal and road-use compliant
• Copper-free (2021 update) for full environmental compliance
• Slotted, chamfered & shimmed to minimize noise and vibration
• Zero-damage formula - gentle on OEM rotors
• Temperatures stable up to 500 °C (brief peaks ~650-900 °C)
• Progressive brake force under load - ideal for fast-road and occasional track use

Specifications

• Position: Front axle

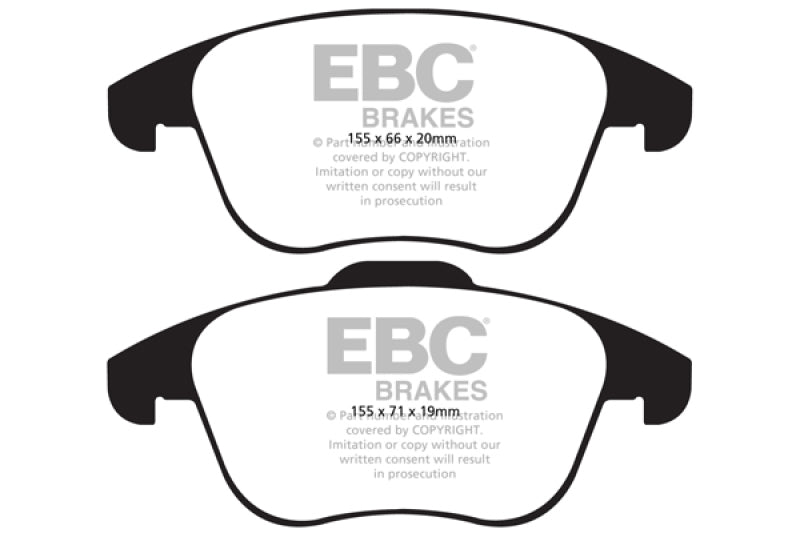

• Pad dimensions: 155 x 66-71 x 19-20 mm (varies by model)
• FMSI: D1375; OE cross-refs include VW/Audi 5N0 698 151
• Weight per axle set: ~2.1 kg
• Maximum continuous temp: ~500 °C; peak capability ~900 °C
• Material: Asbestos-free aramid fiber composite, copper-free
• Legal: R90/ECE certified, US & EU street legal
• OE system compatibility: Designed for ATE calipers (non-Brembo)

Included Components

• 2x left front brake pads
• 2x right front brake pads
• 2x full-width anti-squeal shims
• Brake-In™ surface coating applied

Product Description

EBC's Yellowstuff 4000-Series DP41997R front pads are engineered to boost braking performance for VW Tiguan, Passat, Audi Q3, Sharan, and Seat Alhambra models with 1.4-2.0L engines from 2007-2022. The aramid-enhanced compound delivers high initial bite even from cold and maintains strong stopping power at elevated temperatures, making it an ideal upgrade for fast-road driving and occasional track use. The 2021 copper-free formula aligns with environmental standards without sacrificing performance :contentReference[oaicite:1]{index=1}.

Fully slotted, chamfered, and shimmed to eliminate noise and ensure rotor longevity, these pads feature Brake-In™ coating to speed up bedding-in. R90/ECE certification confirms their legality for street use. Installation is straightforward - replace the front pads and shims, follow EBC's 100-200 mile bedding procedure, and enjoy enhanced braking control with zero rotor damage and minimal dust output :contentReference[oaicite:2]{index=2}.
