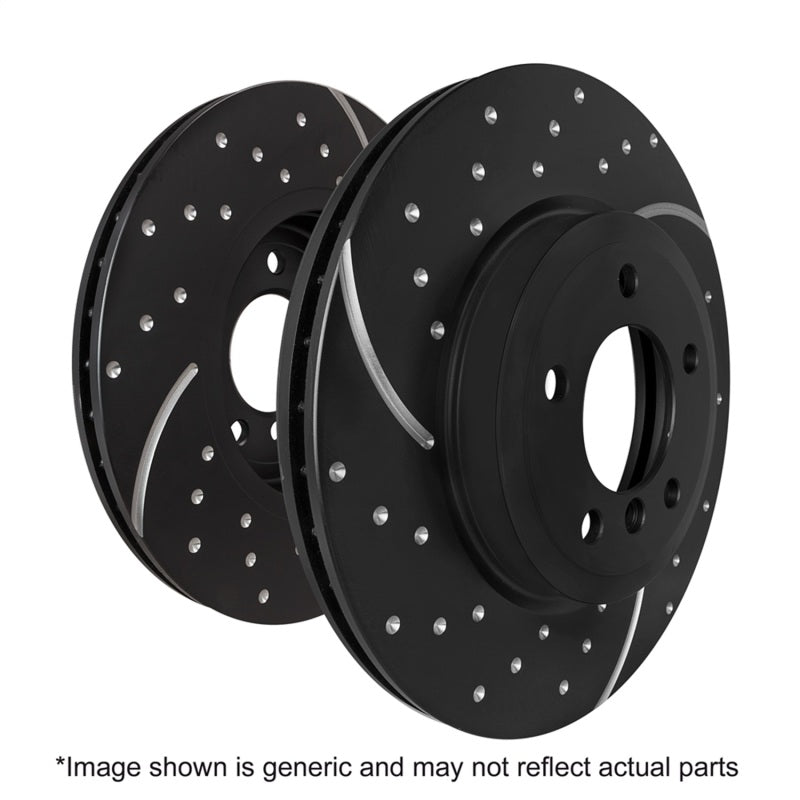

EBC GD1845 Slotted & Dimpled Front Brake Rotors for 2013-2018 Audi A6/S6/A7/S7

Vehicle Fitment

• 2005-2011 Audi A6 Quattro (C6) 3.0T / 3.2 / 4.2
• 2005-2011 Audi A6 Quattro Avant (C6) 3.0T / 3.2 / 4.2
• 2012-2018 Audi A6 Quattro (C7) 2.0T / 3.0T / 3.0 TDI
• 2012-2018 Audi A6 Quattro Avant (C7) 3.0T / 3.0 TDI
• 2010-2018 Audi A7 Quattro Sportback (C7) 3.0T / 3.0 TDI
• 2004-2010 Audi A8 Quattro (D3) 3.0 TDI / 3.2 / 4.2
• 2011-2017 Audi A8 Quattro (D4) 3.0T / 3.0 TDI / 4.0T

Fitment Notes

• Front axle pair -- 356mm diameter rotors only
• Does not fit models with smaller 320mm or 330mm front rotors
• Verify rotor diameter before ordering -- multiple brake packages exist across trim levels
• 5-bolt hub pattern, 68mm center bore
• Directional rotors -- left/right specific for proper slot orientation
• EBC USR slotted-only alternative: USR1845
• EBC BSD blade-slot alternative: BSD1845
• Matching rear GD rotors: EBC GD1846

Features

• Wide-aperture 3-slot design draws cool air under the pad contact zone
• Dimple drilling degasses pads without through-holes that promote cracking
• G3000-grade grey cast iron -- same spec as OE factory rotors
• Thermic Black anti-corrosion coating on non-swept surfaces
• Precision machined to less than 0.05mm runout tolerance
• Directional left/right pair for optimal slot and dimple orientation
• R90-approved rotor blanks for EU street legality
• UK manufactured at EBC's Northampton foundry

Specifications

• Part number: EBC GD1845
• Product line: EBC 3GD Sport Series
• Position: Front
• FMSI pad shape: D1549
• Rotor diameter: 356mm (14.0")
• Rotor thickness: 34mm
• Height: 52.4mm
• Center bore: 68mm
• Bolt holes: 5
• Rotor type: Vented, directional
• Surface treatment: Dimpled + slotted
• Coating: Thermic Black anti-corrosion
• Material: G3000 grey cast iron
• Quantity: Pair (left and right)

Included Components

• EBC GD1845 front brake rotor -- left (1)
• EBC GD1845 front brake rotor -- right (1)

Product Description

The EBC GD1845 is a front axle pair of 3GD Sport dimpled and slotted brake rotors sized at 356x34mm for Audi A6 (C6/C7), A7 (C7), and A8 (D3/D4) Quattro models equipped with the 356mm front brake package. Cast from G3000-grade grey iron to OE factory specifications, each rotor features EBC's signature wide-aperture 3-slot design that channels cool air directly into the pad-to-rotor contact zone, reducing temperatures and preventing brake fade during spirited driving. The dimple drilling pattern degasses brake pads under hard use without the stress risers created by traditional through-drilled holes, eliminating the cracking risk common in cross-drilled rotors.

All non-swept surfaces are finished in EBC's Thermic Black anti-corrosion coating, which wears off naturally in the pad contact area within the first 10 to 20 stops. The rotors are precision machined to fall within 0.05mm runout tolerances and are directional -- each pair includes a correctly oriented left and right rotor for proper slot and dimple function. Manufactured at EBC's Northampton, UK foundry using R90-approved blanks. Some air noise under braking is normal with slotted rotors; for a quieter option in the same fitment, see the EBC USR1845 (slotted only) or BSD1845 (blade slot). Pair with matching rear rotors EBC GD1846 for a complete upgrade.
