EBC DP42174R Yellowstuff Front 2010-2025 Aston Martin DB11/DBX/Rapide 4.0-6.0L

Vehicle Fitment

• 2010-2013 Aston Martin Rapide (AM11, 5.9L V12)
• 2012-2025 Aston Martin Vantage (AM15/AM29/AM37; 4.7L V8, 4.0L Twin-Turbo V8 including Vantage F1 Edition)
• 2013-2025 Aston Martin Vantage AMR (5.2L Twin-Turbo V12)
• 2015-2025 Aston Martin DB11 (X152; 4.0L Twin-Turbo V8, 5.2L Twin-Turbo V12)
• 2020-2025 Aston Martin DBX (E540; 4.0L Twin-Turbo V8)
• 2015-2016 Lagonda Taraf (Q460; 6.0L V12)

Features

• High-friction aramid fibre compound delivers strong initial cold bite
• Excellent fade resistance up to 900 °C for spirited street and track use
• Fully shimmed, slotted & chamfered to minimize noise and rotor wear

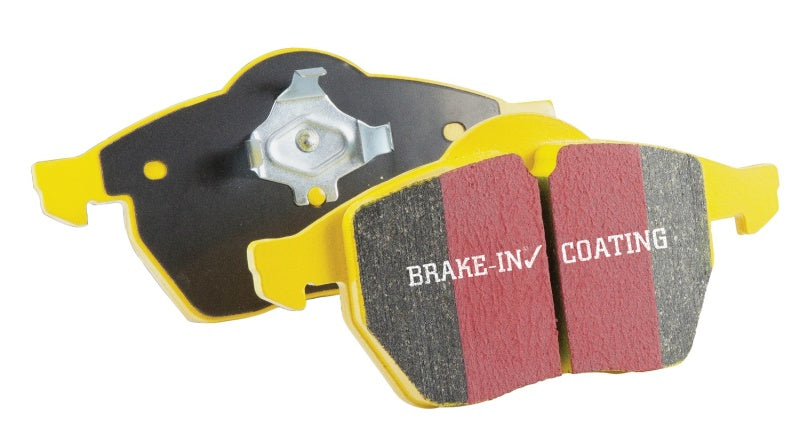

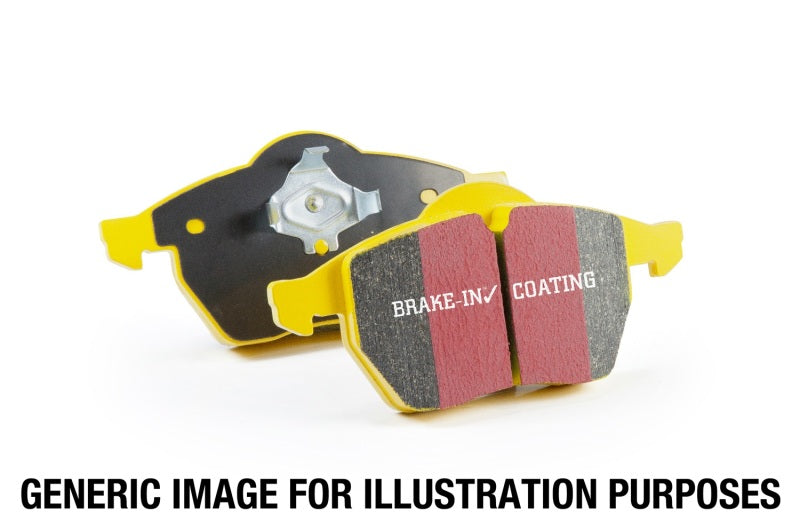

• Brake-In™ red coating for quick bedding and consistent pedal feel
• Copper-free formulation meets current environmental regulations
• R90/ECE approved for full road legality in 50-state use
• Nucap NRS anchoring ensures pad durability and bonding strength
• Rotor-friendly design with zero-disc scoring characteristics

Specifications

• Fitment Position: Front axle (Brembo caliper compatible)

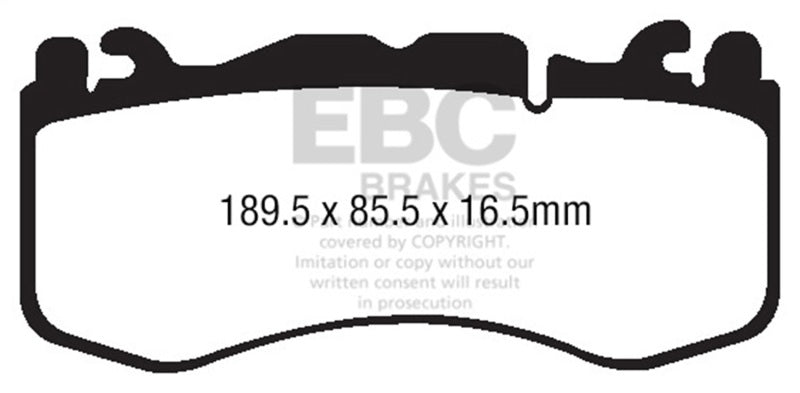

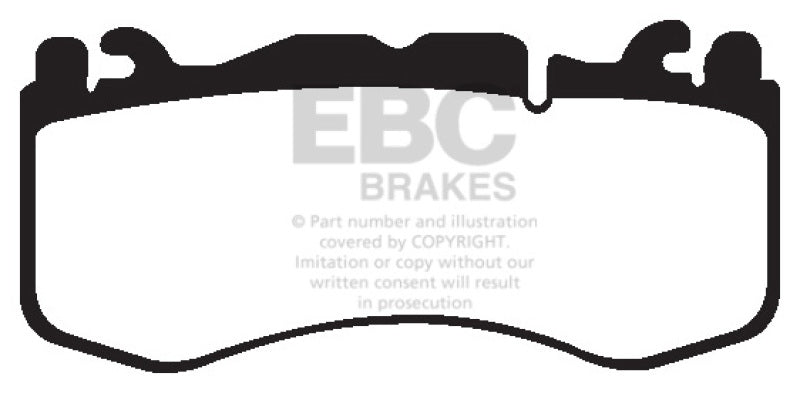

• Pad Dimensions: 189.5 mm x 85.5 mm x 16.5 mm
• Approximate Set Weight: 3.5 kg
• Coefficient of Friction: ~0.48-0.60, stable under high heat
• Maximum Operating Temp: ~900 °C
• Backing Plate Coating: Thermic Black powder coat
• Approval: ECE R90 certified
• Emissions Spec: Copper-free, compliant with 2025 EU/UK regulations

Included Components

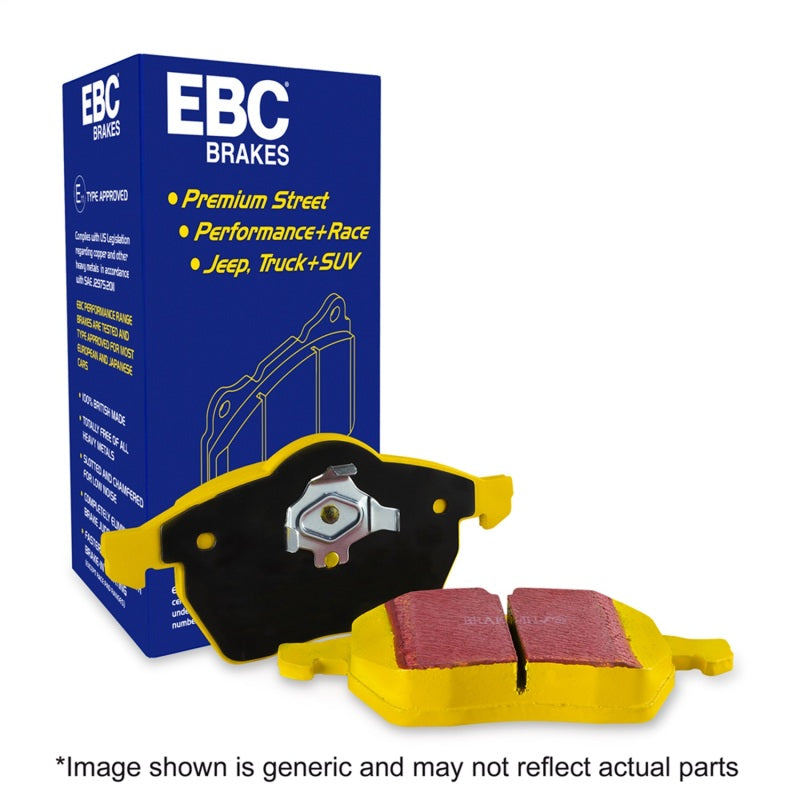

• 1x set of 4 Yellowstuff front brake pads (2 inner + 2 outer)

Product Description

The EBC DP42174R Yellowstuff front brake pad set is designed for Aston Martin performance models from 2010 through 2025, including Rapide, Vantage, DB11, DBX, and the rare Lagonda Taraf. These pads feature a high-friction aramid fibre compound that offers strong bite from cold and maintains effectiveness even at elevated temperatures up to 900 °C, making them ideal for dynamic driving and occasional track sessions.

Built with full shims, slots, and chamfered edges, they minimize noise, reduce thermal cracking, and protect OEM Brembo rotors from scoring. The Brake-In™ surface coating accelerates the bedding process for reliable pedal feel early on. Copper-free and ECE R90 certified, they're 50-state street legal and environmentally compliant. Installation is hassle-free - these pads are direct OE replacements, bolt-on for Aston Martin's high-performance front Brembo brakes.
