Eaton For Chrysler 9.25in/ZF Rear Master Install Kit

Vehicle Fitment

• All vehicles equipped with the Chrysler 9.25 in. ZF (C235) rear differential - 2011 and newer applications
• Compatible Eaton differential: Eaton part number 917A730

Fitment Notes

• Designed specifically for the Chrysler 9.25 in. ZF (C235) rear axle - 2011 and newer applications only; does NOT fit the pre-2011 Chrysler 9.25" (use K-C9.25-10R for 2010 and older applications)
• For use with Eaton differential part number 917A730 - confirm your Eaton differential part number before ordering to ensure kit compatibility
• 12-bolt differential cover, 12 ring gear bolt, 29 pinion spline, 31 axle spline configuration
• Standard rotation ring and pinion setup
• Axle seals and axle bearings are NOT included in this kit - source separately if replacing during installation
• This kit includes all components needed for ring and pinion installation or Eaton differential setup - no additional bearing or hardware kit required

Features

• Master installation kit - includes every component needed to complete a full differential installation or ring and pinion replacement in the Chrysler 9.25" ZF rear axle, eliminating the need to source individual bearings, shims, seals, and hardware separately
• Premium bearings included - Eaton-selected quality pinion head bearing, pinion tail bearing, and carrier bearings engineered for long life and quiet differential operation
• Pinion shim set and carrier shim set included for precise gear backlash and preload setup during installation
• Crush sleeve included for proper pinion preload setting
• Pinion seal included to prevent differential fluid leakage at the pinion input shaft
• Pinion nut included for proper torque retention at the pinion flange
• Ring gear bolts included - 12 bolts for correct ring gear attachment
• Differential cover gasket included for a proper leak-free cover seal
• Designed to simplify upgrading to an Eaton differential or replacing ring and pinion gears by providing all necessary installation hardware in a single kit

Specifications

• Part Number: K-C9.25-11R
• Axle Application: Chrysler 9.25 in. ZF / C235 - Rear
• Fits: 2011 and Newer Applications
• Compatible Eaton Differential: 917A730
• Differential Cover Bolts: 12
• Ring Gear Bolts: 12
• Pinion Spline Count: 29
• Axle Spline Count: 31
• Ring Gear Rotation: Standard
• Pinion Head Bearing (Front): Included
• Pinion Tail Bearing (Rear): Included
• Carrier Bearings: Included
• Pinion Shims: Included
• Carrier Shims: Included
• Crush Sleeve: Included
• Pinion Seal: Included
• Pinion Nut: Included
• Ring Gear Bolts: Included
• Differential Cover Gasket: Included
• Axle Seals: NOT Included
• Axle Bearings: NOT Included

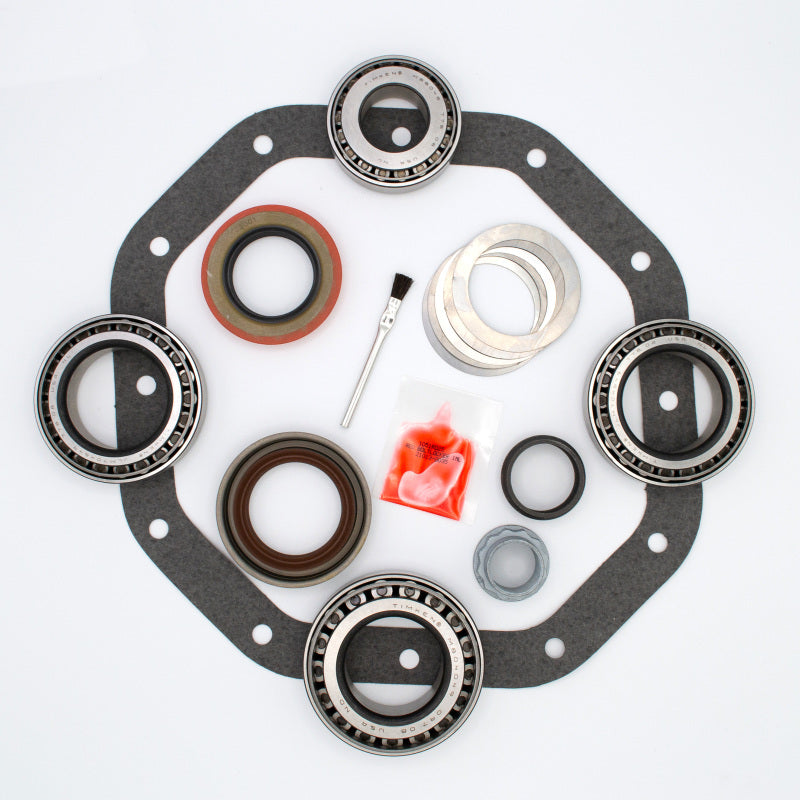

Included Components

• 1x Pinion Head Bearing (Front Pinion Bearing)
• 1x Pinion Tail Bearing (Rear Pinion Bearing)
• 2x Carrier Bearings
• 1x Pinion Shim Set
• 1x Carrier Shim Set
• 1x Crush Sleeve
• 1x Pinion Seal
• 1x Pinion Nut
• 12x Ring Gear Bolts
• 1x Differential Cover Gasket

Product Description

The Eaton K-C9.25-11R is a complete master differential installation kit engineered for the Chrysler 9.25 in. ZF (C235) rear axle on 2011 and newer applications. It is designed for use with Eaton differential part number 917A730, and provides every bearing, shim, seal, hardware piece, and gasket needed to properly set up an Eaton differential or perform a ring and pinion replacement in this axle - all in a single box. By bundling every required installation component together, Eaton eliminates the time and risk involved in sourcing individual parts from multiple suppliers and ensures that all components are matched and appropriate for the application.

The kit includes premium front and rear pinion bearings, a matched set of carrier bearings, pinion and carrier shim sets for precise gear backlash and bearing preload adjustment, a crush sleeve for setting pinion preload, a pinion seal, pinion nut, 12 ring gear bolts, and a differential cover gasket. The bearings are selected by Eaton to deliver long service life and quiet operation when properly set up. Builders should note that axle seals and axle bearings are not included in this kit and must be sourced separately if they are being replaced as part of the differential service.

This kit is specific to the 2011 and newer Chrysler 9.25" ZF axle configuration - it is not interchangeable with the pre-2011 Chrysler 9.25" axle (which uses kit K-C9.25-10R). The ZF-manufactured rear differential introduced with the 2011 model year Ram 1500 uses different bearing and hardware specifications than the earlier 9.25" Chrysler design. Confirm both the axle generation and the Eaton differential part number (917A730) before ordering to ensure this is the correct kit for your build.
