Eagle CRS5900MC3D Forged 4340 H-Beam Connecting Rods for 1989-1992 Mitsubishi 4G

Vehicle Fitment

• 1989-1992 Mitsubishi Eclipse GS DOHC Turbo 2.0L
• 1989-1992 Mitsubishi Eclipse GS DOHC Turbo 2.0L AWD
• 1989-1992 Mitsubishi Eclipse GS DOHC Turbo 2.0L FWD
• 1989-1992 Mitsubishi Eclipse GS DOHC Turbo 2.0L RWD
• 1989-1992 Mitsubishi Eclipse GS DOHC Turbo 2.0L 4WD
• 1989-1992 Mitsubishi Eclipse GS DOHC Turbo 2.0L 4WD
• 1989-1992 Mitsubishi Eclipse GS DOHC Turbo 2.0L AWD
• 1989-1992 Mitsubishi Eclipse GS DOHC Turbo 2.0L AWD

Fitment Notes

• Compatible with 6-bolt 4G63 turbo engines only.
• Not compatible with 7-bolt 4G63 or 4G64 engines.
• Designed for use with pistons utilizing 22mm wrist pins.
• Not compatible with non-turbocharged 4G63 or 4G64 engines.

Features

• Forged 4340 steel construction for superior strength and durability.
• H-beam design for optimal rigidity and resistance to bending.
• Shot-peened finish to enhance fatigue resistance and surface integrity.
• Equipped with ARP 2000 rod bolts rated at 230,000 psi for high-performance applications.
• Weight-matched set ensures balanced performance across all cylinders.
• Precision CNC-machined to exact tolerances for optimal fit and performance.
• Designed for high-revving applications up to 7500 rpm.
• Ideal for street, track, and racing builds requiring robust connecting rods.

Specifications

• Rod Length: 5.900 inches (150.0 mm)
• Big End Bore: 1.771 inches (44.9 mm)
• Rod Journal Diameter: 1.771 inches (44.9 mm)
• Pin End Bore Diameter: 0.866 inches (22.0 mm)
• Big End Width: 1.038 inches (26.3 mm)
• Pin End Width: 1.038 inches (26.3 mm)
• Typical Weight: 575 grams per rod
• Material: Forged 4340 steel
• Finish: Shot-peened
• Fastener Yield Strength: 230,000 psi
• Fastener Brand: ARP 2000
• Quantity: Set of 4 rods
• Position: Connecting rods for all cylinders (front to rear)

Included Components

• 4x Forged 4340 H-beam connecting rods
• 4x ARP 2000 rod bolts pre-installed
• 1x Installation instruction sheet

Product Description

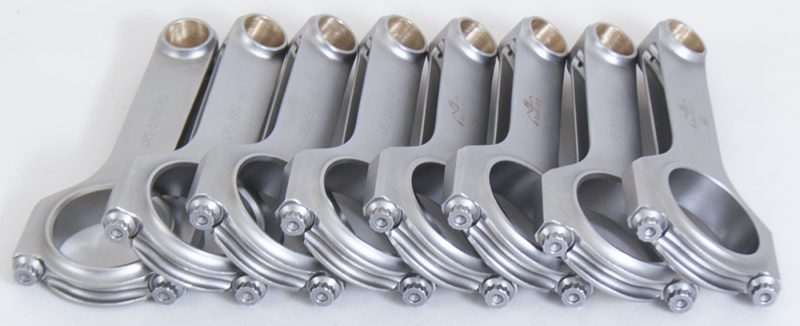

The Eagle CRS5900MC3D forged H-beam connecting rods are engineered for the 1989-1992 Mitsubishi 4G63 6-bolt turbocharged engine. Constructed from high-quality forged 4340 steel, these rods offer exceptional strength and durability, making them suitable for high-performance applications.

Featuring an H-beam design, the rods provide superior rigidity and resistance to bending under high-stress conditions. The shot-peened finish enhances fatigue resistance and surface integrity, ensuring long-lasting performance. Equipped with ARP 2000 rod bolts rated at 230,000 psi, these rods are capable of handling high-performance applications up to 7500 rpm.

Designed as a weight-matched set, the rods ensure balanced performance across all cylinders, making them ideal for street, track, and racing builds. Please note that these rods are not compatible with 7-bolt 4G63 or 4G64 engines, and are designed for use with pistons utilizing 22mm wrist pins. Installation requires standard engine rebuild procedures, and ARP 2000 rod bolts are pre-installed for convenience.
