Eagle CRS5984K3D 4340 H-Beam Connecting Rods Honda Acura K24 5.984" Set of 4

Vehicle Fitment

• Universal - Fits all Honda/Acura K24-family engines using a 5.984" center-to-center connecting rod, 1.889" rod journal, 0.864" (OEM) wrist pin, and 2.008" housing bore
• Compatible K24 engine variants include: K24A, K24A1, K24A2, K24A3, K24A4, K24A6, K24A8, and K24Z7
• Common vehicle applications: Acura TSX (2004-2010), Honda Accord 4-cylinder (2003-2010), Honda CR-V (K24A / K24Z), Honda Element (K24A)

Fitment Notes

• This is a universal connecting rod set - no specific vehicle year or trim fitment is assigned; builder must verify engine code, piston pin diameter, and bearing compatibility before installation
• Pin size: 0.864" - this rod is sized for the OEM K24 wrist pin diameter; if aftermarket pistons with a 0.866" wrist pin are used, the small end bushing must be honed to 0.866" before installation, or use Eagle CRS5984A3D which is pre-configured for the 0.866" pin
• Bushed for a full-floating piston pin - wrist pin is not press-fit; snap rings (not included) are required to retain the pin in the piston
• Rod bolt torque specification: 43 ft-lbs using ARP Moly Lube ONLY - do not substitute any other lubricant on ARP 2000 rod bolts
• Sold as a weight-matched set of 4 rods - all 4 rods are matched to within ±1g for balanced rotating assembly dynamics
• HP rating with included 3/8" ARP 2000 bolts: 900 HP - for applications exceeding this threshold, see Eagle CRS5984KXD (Extreme Duty, ARP Custom Age 625+)
• Not for use in pollution-controlled vehicles; recommended for competition use

Features

• Forged 4340 steel - certified SAE 4340 chromium-molybdenum-nickel alloy steel, vacuum-degassed for reduced internal porosity and consistent material properties; Eagle sources 4340 with a tighter alloy tolerance than the AISI/SAE minimum, using a proprietary material composition that provides improved fatigue life and tensile strength in the high-RPM, high-boost K24 competition environment
• H-Beam cross-section - provides an optimal strength-to-weight ratio for the K24 application, with 555g typical weight per rod achieving meaningfully less rotating mass than the factory K24 connecting rods while delivering the structural stiffness and fatigue life required for competition use
• Two-piece forging process - the rod body and cap are forged separately, allowing grain orientation in each piece to be optimized for the specific loads applied; the cap is forged with grain perpendicular to load forces for maximum cap strength, a structural advantage over one-piece forgings confirmed through extensive testing
• Multi-stage heat treatment - stress relief and tempering after forging for uniform internal material properties and improved fatigue life
• X-rayed, sonic-tested, and magnafluxed - full non-destructive inspection of every Eagle ESP H-Beam rod to verify structural integrity before shipping
• 100% machined and shot-peened - all critical surfaces are fully machined to Eagle's dimensional tolerances, then shot-peened to relieve surface tensile stress and improve fatigue resistance
• Precision cap alignment sleeves - positively locate the cap on the rod body during assembly, ensuring accurate housing bore geometry at final torque and consistent big-end bearing clearance
• 3/8" ARP 2000 rod bolts - rated at 230,000 psi tensile strength, supporting builds up to 900 HP; ARP Custom Age 625+ (265,000 psi) available via Eagle CRS5984KXD for higher output applications
• Silicon bronze small-end bushing for full-floating 0.864" wrist pin retention
• Typical weight: 555g per rod; weight-matched to ±1g within the set

Specifications

• Part Number: CRS5984K3D
• Material: Forged 4340 Steel (Vacuum-Degassed, Certified)
• Design: H-Beam, Two-Piece Forging
• Application: Honda/Acura K24 Engine Family (K24A, K24A1, K24A2, K24A3, K24A4, K24A6, K24A8, K24Z7)
• Quantity: Set of 4
• Center-to-Center Length: 5.984"
• Rod Journal Diameter: 1.889"
• Housing Bore: 2.008"
• Pin Size: 0.864" (OEM K24 pin; hone to 0.866" for aftermarket pistons, or use CRS5984A3D)
• Big End Width: 0.779"
• Pin End Width: 0.779"
• Thickness Above Pin: 0.200"
• Typical Weight: 555g per rod
• Weight Matching: ±1g per set
• Piston Pin Retention: Full-Floating (Bushed)
• Rod Bolt: 3/8" ARP 2000 (230,000 psi)
• Rod Bolt Torque: 43 ft-lbs (ARP Moly Lube Only)
• HP Rating: 900 HP (with included ARP 2000 bolts)

Included Components

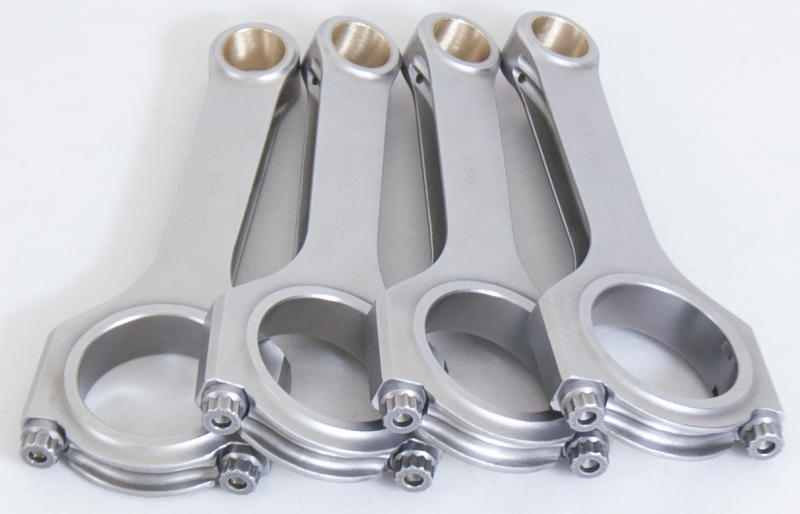

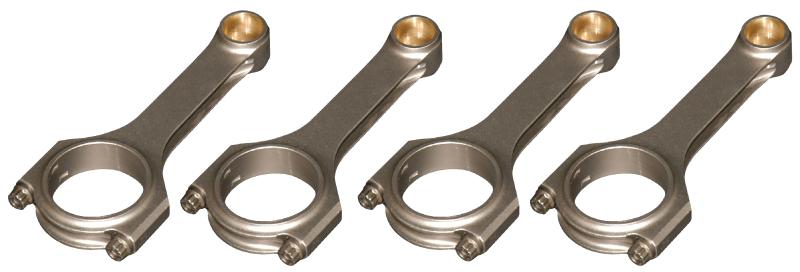

• 4x Eagle H-Beam Connecting Rods (CRS5984K3D) - weight-matched set, includes pre-installed 3/8" ARP 2000 rod bolts
• Note: Pistons, wrist pins, snap rings, and bearings are NOT included.

Product Description

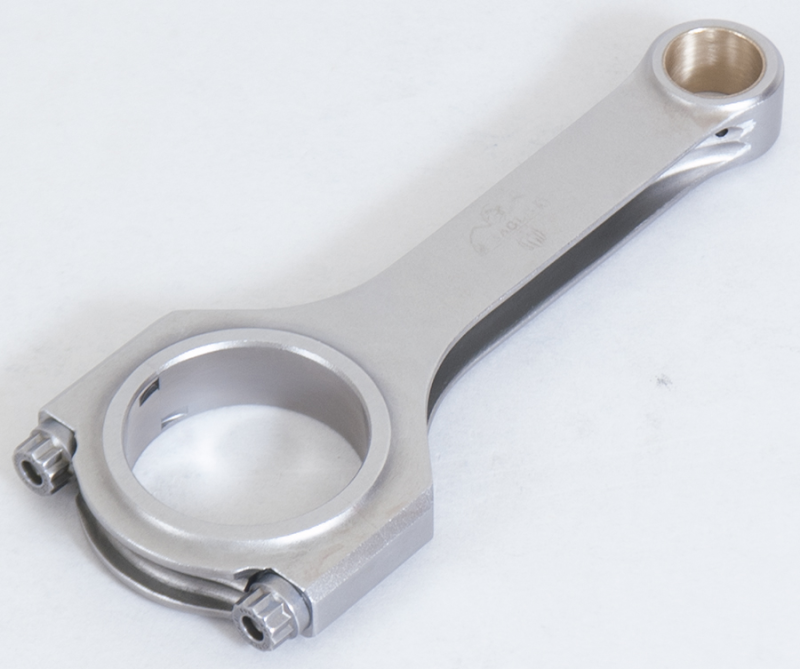

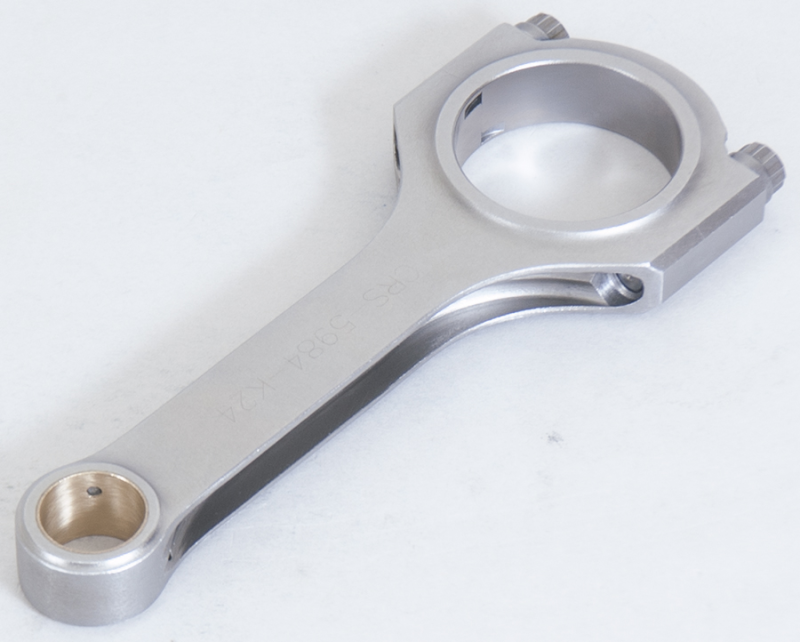

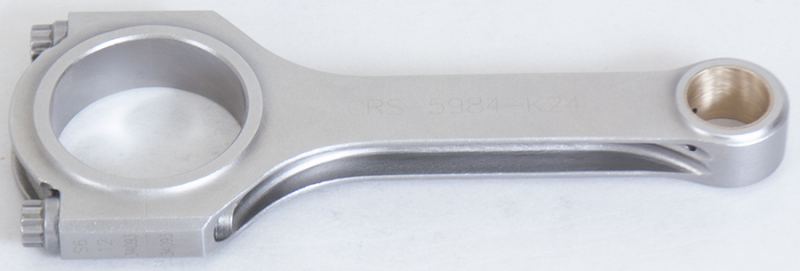

The Eagle CRS5984K3D is a weight-matched set of four forged 4340 steel H-beam connecting rods for the Honda/Acura K24 engine family, covering K24A, K24A1, K24A2, K24A3, K24A4, K24A6, K24A8, and K24Z7 variants - the full range of 2.4L K-series engines found in the Acura TSX, Honda Accord, CR-V, and Element. These rods use the OEM K24 wrist pin diameter of 0.864" and are the appropriate choice for builds using either factory pistons or aftermarket pistons that share the OEM 0.864" pin. Builders using aftermarket pistons with the more common 0.866" (22mm) aftermarket pin size should either have the small end bushing honed to 0.866" or use Eagle CRS5984A3D, which is pre-configured for 0.866" pins.

Each rod is forged from Eagle's certified vacuum-degassed 4340 chromium-molybdenum-nickel alloy steel through a two-piece forging process that separately forges the rod body and cap, optimizing grain orientation in each section for the loads it carries. Precision cap alignment sleeves locate the cap correctly at assembly for accurate housing bore sizing and consistent bearing clearance. After forging, every rod undergoes multi-stage heat treatment, X-ray, sonic testing, magnaflux inspection, 100% machining, and shot peening. At 555g typical weight, these rods are lighter than the OEM K24 rods while providing substantially superior fatigue life and load capacity for forced induction, high-RPM, and other competition applications.

The set ships with 3/8" ARP 2000 rod bolts rated at 230,000 psi tensile strength, supporting engine builds up to 900 HP. All rod bolts must be torqued to 43 ft-lbs using ARP Moly Lube only. For builds exceeding 900 HP, Eagle's CRS5984KXD Extreme Duty set - using ARP Custom Age 625+ fasteners rated at 265,000 psi - is the appropriate upgrade. All four rods are weight-matched to within ±1g. Not for use in pollution-controlled vehicles.
