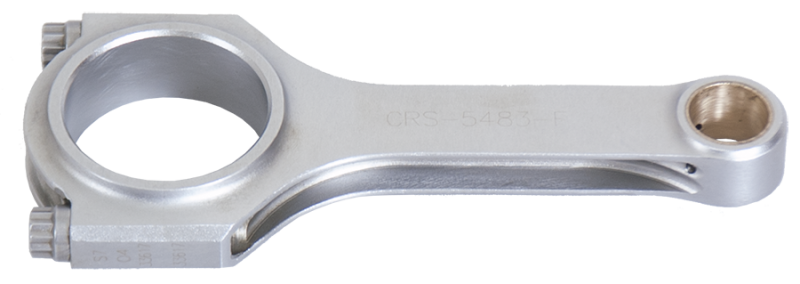

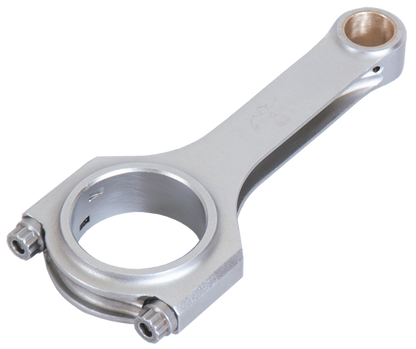

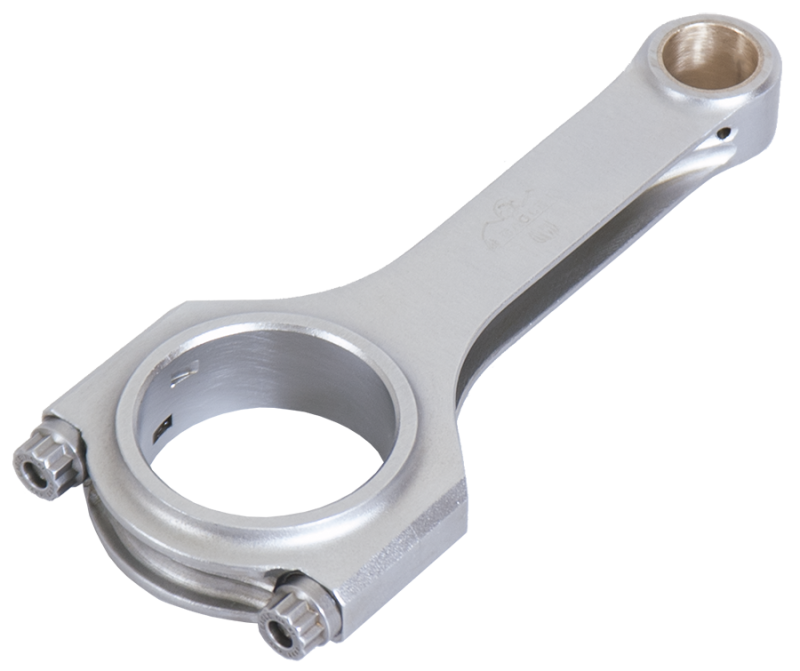

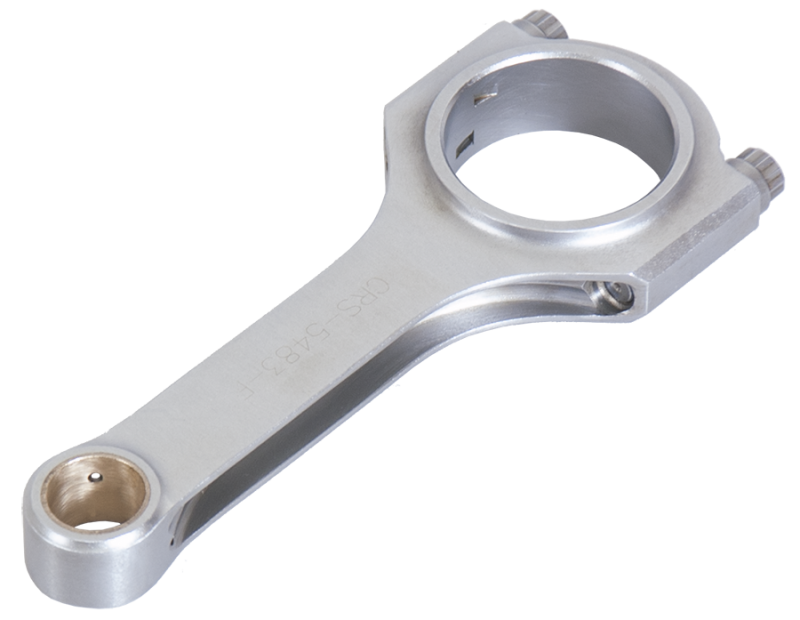

Eagle CRS5483F3D H-Beam Connecting Rods for 1998-2004 Ford Focus/Mondeo Zetec

Vehicle Fitment

• 1998-2004 Ford Focus (Mk1) Zetec 1.8L / 2.0L (DOHC, 16-valve)
• 1998-2004 Ford Mondeo (Mk2) Zetec 1.8L / 2.0L (DOHC, 16-valve)

Fitment Notes

• Does not fit Duratec or Zetec-SE/SE-S engines (must be classic Zetec DOHC engine family)
• Not clear/confirmed for newer Ford Zetec variants post-2004
• Requires pistons, crankshaft, and rod journal matching the original Zetec 1.8/2.0L specs

Features

• Forged 4340 steel H-beam construction for high strength and durability
• Set of four connecting rods, weight matched to ~535 grams each
• Uses ARP 2000 3/8" rod bolts for high clamping strength
• Precision machining, shot-peened, magnafluxed, vacuum degassed, sonic tested for stress relief and consistency
• Big end and small end dimensions matching Ford Zetec 1.9/2.0 engine journal and pin specs
• Not clearanced for stroker applications - standard stroke length
• Floating wrist pin style bushing at pin end
• Shot-peened and fully machined for high RPM reliability (recommended up to ~900 hp in 4-cylinder application)

Specifications

• Rod length (center-to-center): 5.483 in / ~139.27 mm
• Material: Forged 4340 steel
• Approximate weight per rod: 535 g
• Rod bolts: ARP-2000, 3/8" cap screws (12-point head)
• Big end bore / journal diameter: ~1.9650 in
• Pin end bore diameter: ~0.788 in
• Big end width: ~0.956 in; pin end width: ~0.802 in
• Fastener yield strength / bolt rating: ~200,000 psi

Included Components

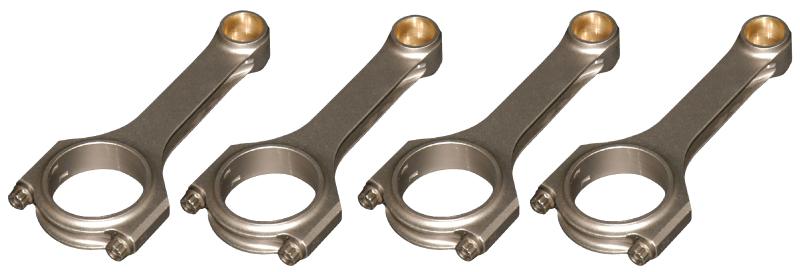

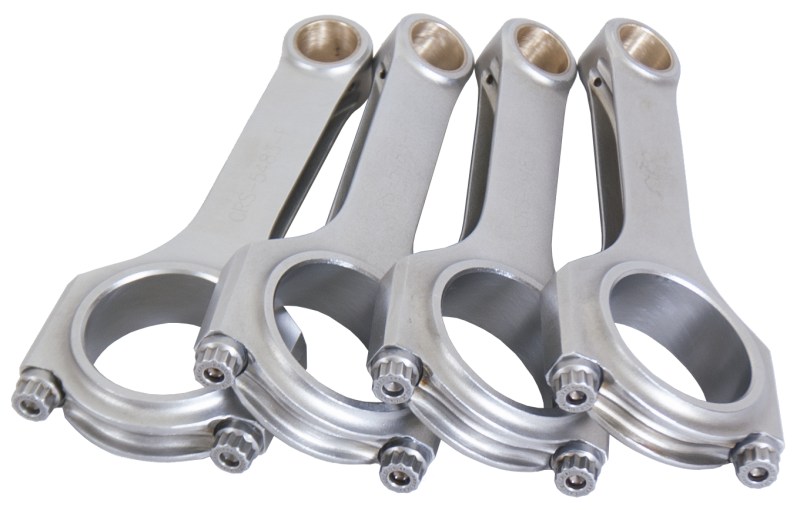

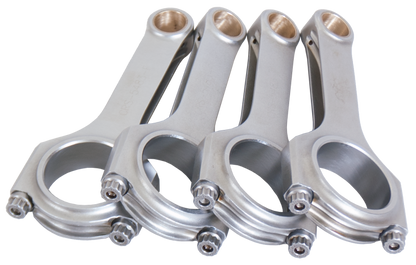

• 4x connecting rods (weight-matched set)
• 4x ARP-2000 3/8" rod bolts (cap screws)
• Instructions & rod bolt lubrication guide

Product Description

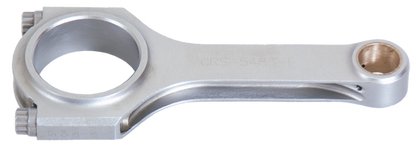

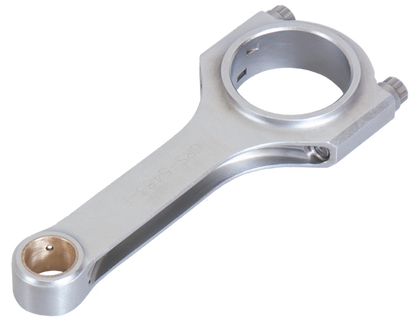

The Eagle CRS5483F3D is a high-performance set of forged 4340 steel H-beam connecting rods engineered for Ford's classic Zetec DOHC 1.8-2.0L engines. Built from two-piece forgings, each rod is meticulously machined, shot-peened, magnafluxed, and sonic tested to ensure consistent strength and durability. The floating wrist pin design, matched weight set, and use of ARP 2000 grade bolts enable these rods to handle serious power, making them ideal for high-rev, boosted, or competition builds.

With a rod length of 5.483 inches (~139.27 mm), these rods match the stock length for the 1.8-2.0 Zetec engines found in Focus Mk1 (1998-2004) and Mondeo Mk2 (1998-2004). They are not stroked or modified for increased stroke, so crank compatibility must be stock. Fitment is confirmed through 2004; 2005 and beyond are unverified for this classic Zetec engine family.
