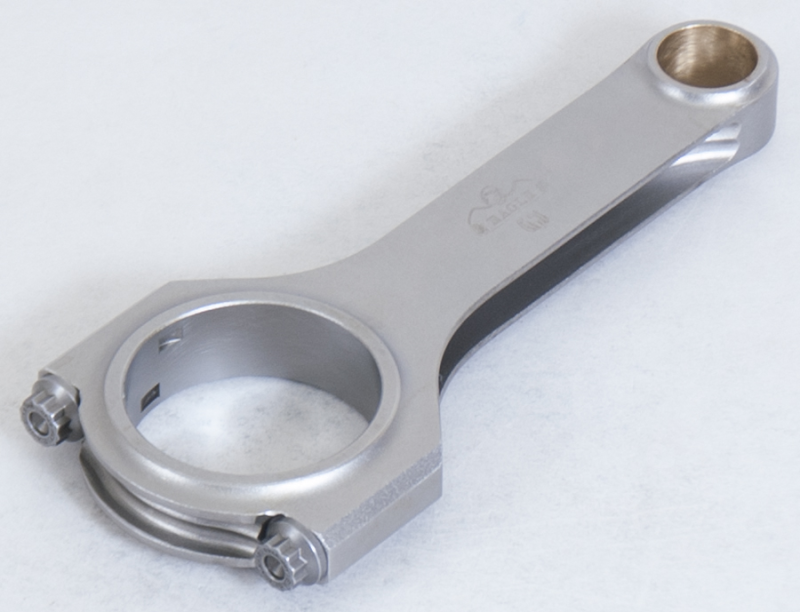

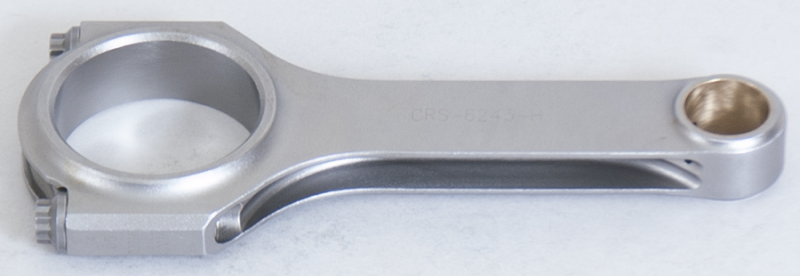

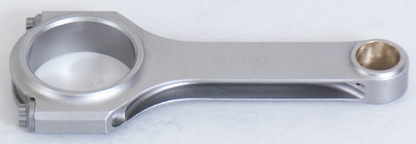

Eagle CRS6243C3D 4340 H-Beam Connecting Rods Chrysler HEMI 5.7L 6.1L Set of 8

Vehicle Fitment

• Universal - Fits Chrysler Late Model Gen III HEMI V8 engines (5.7L HEMI and 6.1L HEMI) using a 6.243" center-to-center connecting rod, 2.126" rod journal, 0.945" wrist pin, and 2.242" housing bore
• Compatible HEMI variants: 5.7L HEMI (32-tooth and 58-tooth reluctor wheel configurations) and 6.1L HEMI (32-tooth) - 2003-2024 5.7L HEMI applications and 2005-2010 6.1L HEMI applications

Fitment Notes

• This is a universal connecting rod set - no specific vehicle year or trim fitment is assigned; builder must verify engine displacement, piston pin diameter, and bearing compatibility before installation
• Pin size: 0.945" (24mm) - this set is configured for pistons using the 6.1L HEMI pin diameter; if 0.927" wrist pin pistons are used (common 5.7L OEM pin size), use Eagle CRS6243H3D instead
• Bushed for a full-floating piston pin - wrist pin is not press-fit; snap rings (not included) are required to retain the pin in the piston
• Rod bolt torque specification: 63 ft-lbs using ARP Moly Lube ONLY - do not substitute any other lubricant on ARP 8740 rod bolts
• Sold as a weight-matched set of 8 rods - all 8 rods are matched to within ±1g for balanced rotating assembly dynamics in the V8 HEMI engine
• Not for use in pollution-controlled vehicles; recommended for competition use

Features

• Forged 4340 steel - certified SAE 4340 chromium-molybdenum-nickel alloy steel, vacuum-degassed for reduced internal porosity and consistent material properties throughout the rod; Eagle sources 4340 with a tighter alloy content specification than the AISI/SAE minimum, using a proprietary material composition that provides improved fatigue life under the high cylinder pressures generated by supercharged, turbocharged, and nitrous HEMI builds

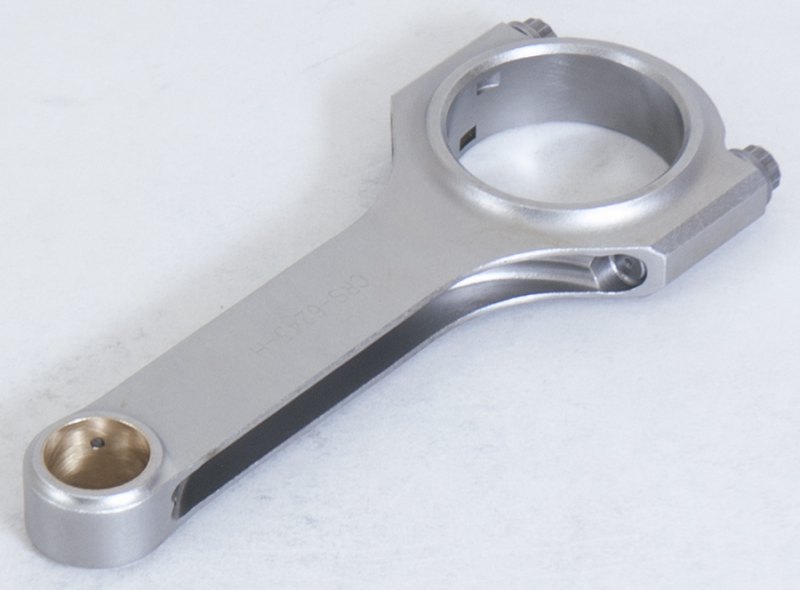

• H-Beam cross-section - provides an optimal strength-to-weight ratio for the HEMI application, with 640g typical weight per rod achieving meaningfully less rotating mass than the factory HEMI rods while delivering the structural stiffness and fatigue life required for competition use
• Two-piece forging process - rod body and cap are forged separately, allowing grain orientation in each piece to be optimized for the specific load it carries; the cap is forged with grain perpendicular to load forces for maximum cap strength; precision cap alignment sleeves positively index the cap during assembly for accurate housing bore geometry and consistent clamping force across all 8 rods
• Multi-stage heat treatment - stress relief and tempering after forging for uniform internal material properties and improved fatigue life
• X-rayed, sonic-tested, and magnafluxed - full non-destructive inspection of every Eagle ESP H-Beam rod to verify structural integrity before shipping
• 100% machined and shot-peened - all critical surfaces are fully machined to Eagle's dimensional tolerances, then shot-peened to relieve surface tensile stress and improve fatigue resistance
• 7/16" ARP 8740 cap screw rod bolts - rated at 190,000 psi tensile strength; ARP 2000 (230,000 psi) upgrade available for higher output applications via CRS6243C3D2000
• Silicon bronze small-end bushing for full-floating 0.945" wrist pin retention
• Typical weight: 640g per rod; weight-matched to ±1g within the set of 8

Specifications

• Part Number: CRS6243C3D
• Material: Forged 4340 Steel (Vacuum-Degassed, Certified)
• Design: H-Beam, Two-Piece Forging
• Application: Chrysler Late Model Gen III HEMI - 5.7L HEMI and 6.1L HEMI

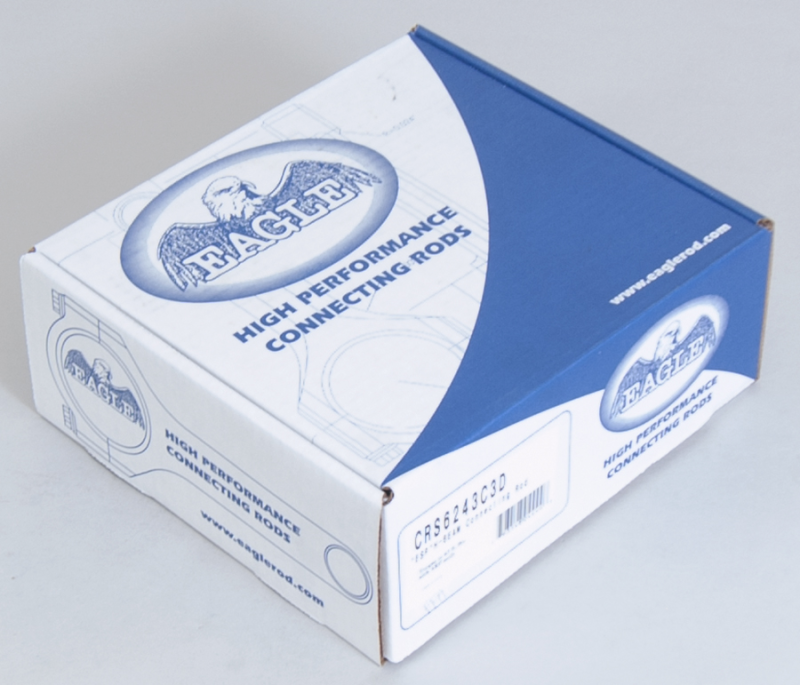

• Quantity: Set of 8
• Center-to-Center Length: 6.243"
• Rod Journal Diameter: 2.126"
• Housing Bore: 2.242"
• Pin Size: 0.945" (24mm - 6.1L HEMI pin; for 0.927" pin use CRS6243H3D)
• Big End Width: 0.932"
• Pin End Width: 0.932"
• Typical Weight: 640g per rod
• Weight Matching: ±1g per set
• Piston Pin Retention: Full-Floating (Bushed)
• Rod Bolt: 7/16" ARP 8740 (190,000 psi)
• Rod Bolt Torque: 63 ft-lbs (ARP Moly Lube Only)

Included Components

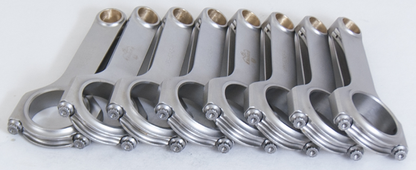

• 8x Eagle H-Beam Connecting Rods (CRS6243C3D) - weight-matched set of 8, includes pre-installed 7/16" ARP 8740 rod bolts
• Note: Pistons, wrist pins, snap rings, and bearings are NOT included.

Product Description

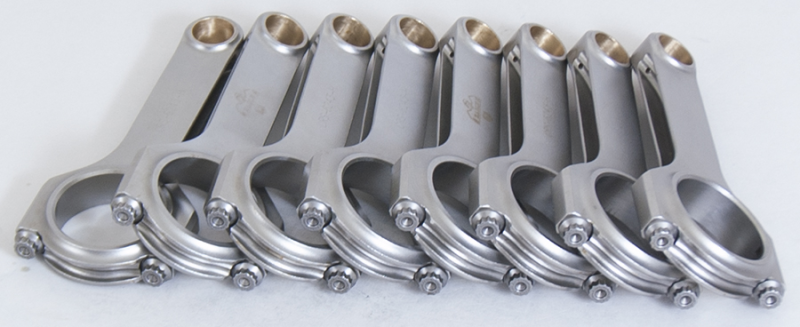

The Eagle CRS6243C3D is a weight-matched set of eight forged 4340 steel H-beam connecting rods for the Chrysler Late Model Gen III HEMI V8 - specifically the 5.7L HEMI (2003 and later, both 32-tooth and 58-tooth reluctor configurations) and the 6.1L HEMI (2005-2010 SRT applications). The set of 8 is the correct quantity for a complete V8 engine build. These rods use a 0.945" (24mm) wrist pin, matching the 6.1L HEMI factory pin size and common aftermarket piston pin diameter for HEMI performance builds. Builders using 5.7L OEM pistons with the 0.927" factory pin diameter should instead select Eagle CRS6243H3D, which shares all other dimensions but is sized for the smaller pin.

Each rod is forged from Eagle's certified vacuum-degassed 4340 chromium-molybdenum-nickel alloy steel through a two-piece forging process that separately forges the rod body and cap for optimized grain orientation in each section. Precision cap alignment sleeves locate the cap correctly at assembly for accurate housing bore sizing and consistent bearing clearance across all eight positions in the HEMI V8. After forging, every rod undergoes multi-stage heat treatment, X-ray, sonic testing, magnaflux inspection, 100% machining, and shot peening. At 640g typical weight per rod, these H-beams deliver meaningfully less rotating mass than the factory HEMI connecting rods while providing substantially superior fatigue life and structural integrity for high-output, forced induction, and competition HEMI builds.

The set ships with 7/16" ARP 8740 rod bolts rated at 190,000 psi tensile strength. For builds requiring a higher fastener rating, CRS6243C3D2000 provides the same rod with ARP 2000 bolts (230,000 psi). All rod bolts must be torqued to 63 ft-lbs using ARP Moly Lube only. The small end is bushed for a full-floating 0.945" wrist pin. All eight rods in the set are weight-matched to within ±1g. Not for use in pollution-controlled vehicles.
