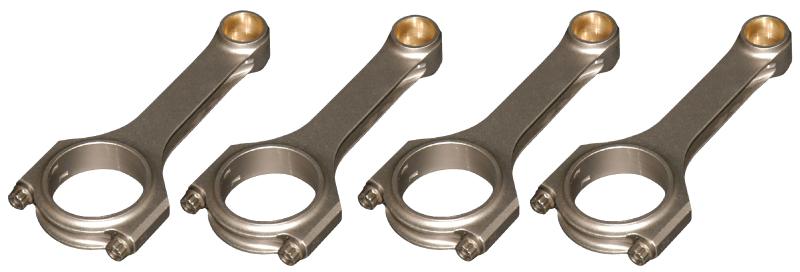

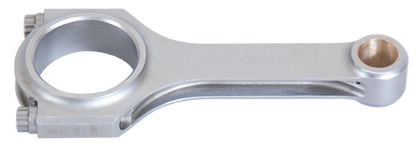

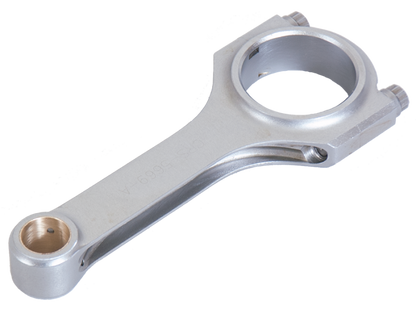

Eagle CRS5669A3D Forged H-Beam Connecting Rods for 1997-2006 Audi A4/TT

Vehicle Fitment

• 1997-2006 Audi A4 (Base, Avant, S Line, Cabriolet, Quattro) 1.8L Turbo
• 2001-2006 Audi TT (Base, Quattro) 1.8L Turbo
• 2000-2006 Volkswagen Golf (GTI, GLX, GLS, Turbo) 1.8L Turbo
• 2000-2006 Volkswagen Jetta (GLI, GLS, Turbo) 1.8L Turbo
• 2000-2006 Volkswagen Passat (GLX, GLS, Turbo) 1.8L Turbo

Fitment Notes

• Compatible with 1.8L Turbocharged engines (20V, 1.8T, 20mm wrist pin)
• Not compatible with 2.0L or 2.5L engines
• Not compatible with non-turbocharged models

Features

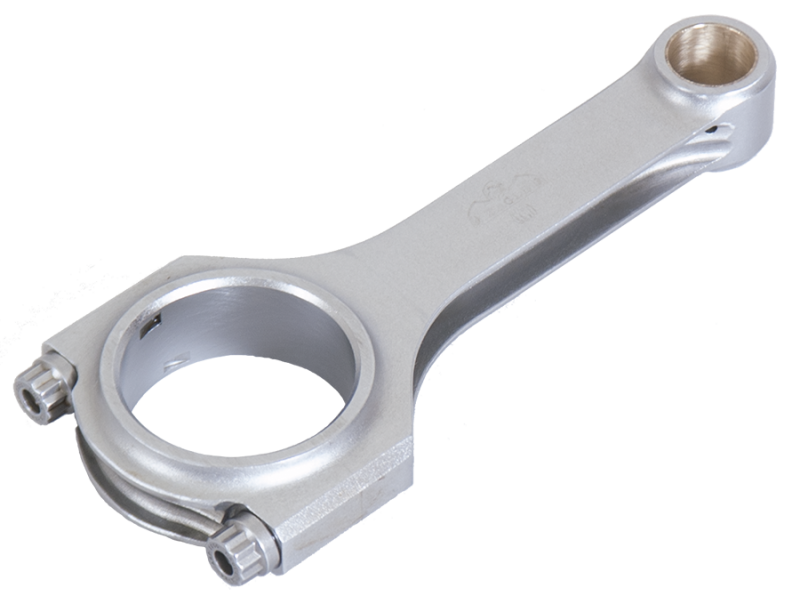

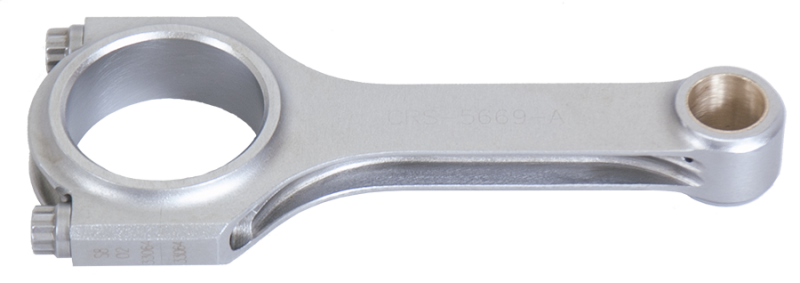

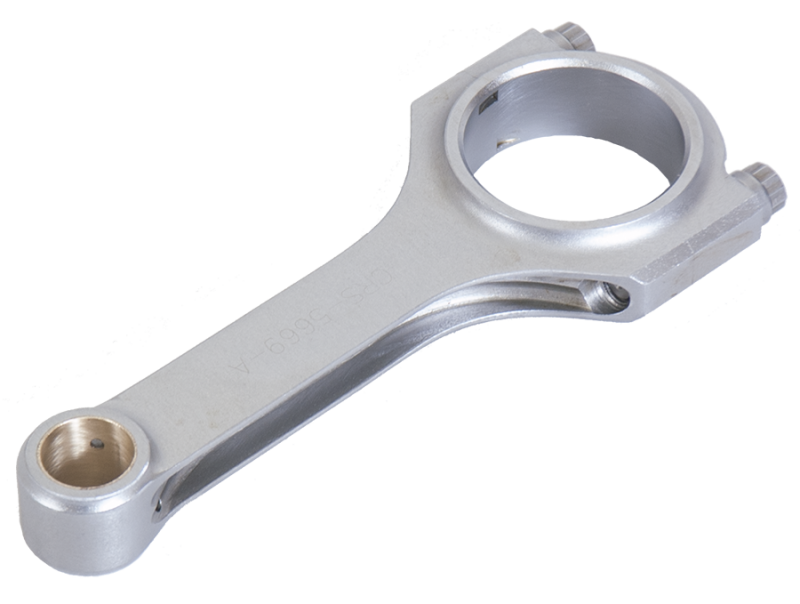

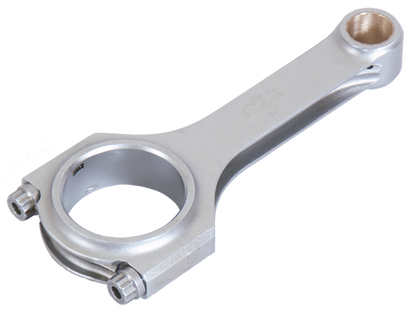

• Forged 4340 steel H-beam construction for superior strength
• Multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100% machined, and shot-peened
• Equipped with ARP 2000 3/8" rod bolts for increased power-handling capability
• Precision cap alignment sleeves to positively locate each rod cap
• Silicon bronze bushings for floating wrist pins
• Lightweight design reduces rotating mass for high-rpm performance

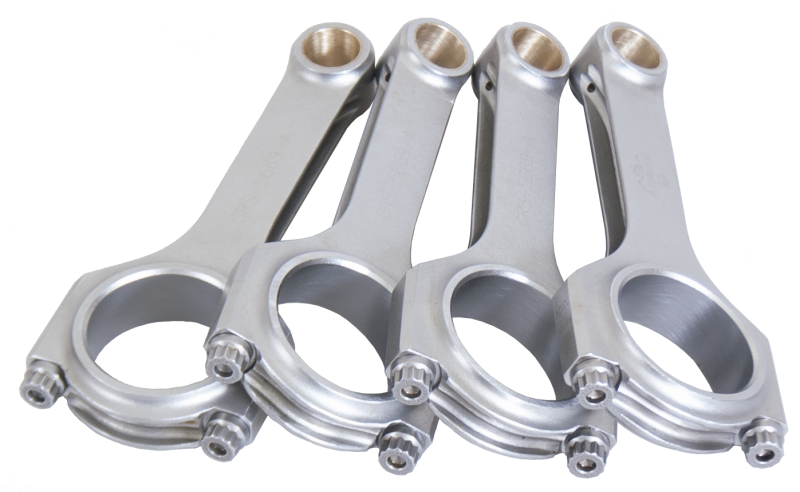

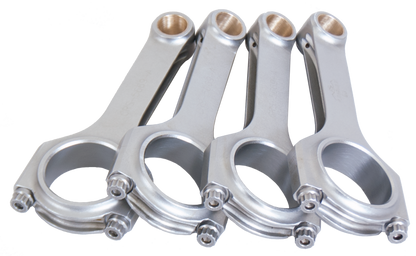

• Sold as a weight-matched set of 4 rods
• Recommended for competition use and engines producing up to 900 horsepower (4-cylinder)

Specifications

• Rod Length: 5.669 inches (144mm)
• Wrist Pin Size: 0.790 inches (20mm)
• Big End Bore: 1.9925 inches (50.6mm)
• Big End Width: 0.9820 inches (24.99mm)
• Pin End Width: 0.9800 inches (24.89mm)
• Thickness Above Pin: 0.200 inches (5.08mm)
• Weight: 575 grams per rod
• Torque: 43 ft-lbs with ARP moly lube on threads

Included Components

• 1x Eagle CRS5669A3D Forged H-Beam Connecting Rods Set (4 rods)
• 4x ARP 2000 3/8" Rod Bolts
• Rod Bolt Lubricant
• Installation Instructions

Product Description

The Eagle CRS5669A3D Forged H-Beam Connecting Rods are designed for high-performance applications in Audi and Volkswagen 1.8L Turbocharged engines. Constructed from forged 4340 steel, these rods offer exceptional strength and durability, making them ideal for engines producing up to 900 horsepower. Each rod is meticulously crafted through a multi-stage process, including heat treatment, X-ray inspection, sonic testing, magnafluxing, and shot-peening, ensuring superior quality and reliability.

These connecting rods are equipped with ARP 2000 3/8" rod bolts, providing increased power-handling capability. The precision cap alignment sleeves ensure accurate rod cap placement, while the silicon bronze bushings facilitate floating wrist pins. With a lightweight design that reduces rotating mass, these rods contribute to enhanced high-rpm performance. Sold as a weight-matched set of four, they are recommended for competition use and are compatible with various Audi and Volkswagen models equipped with 1.8L Turbocharged engines.
