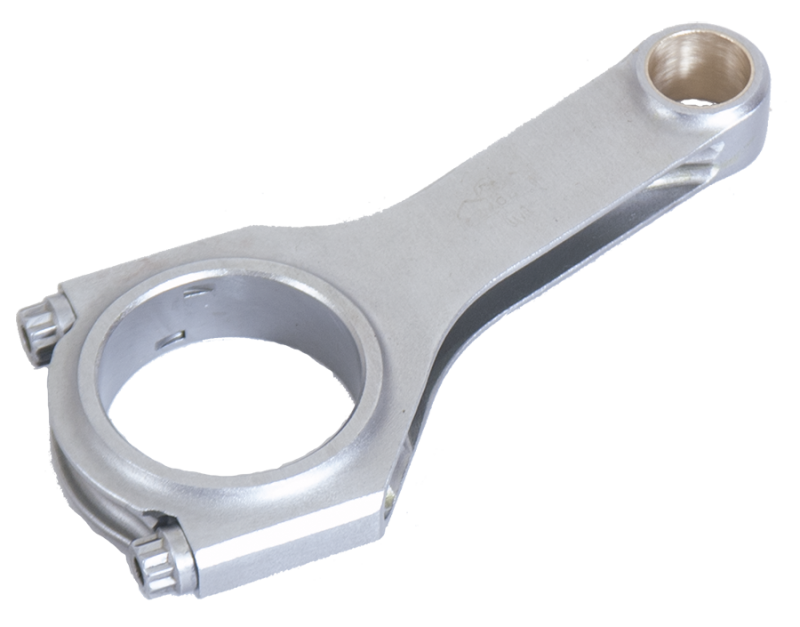

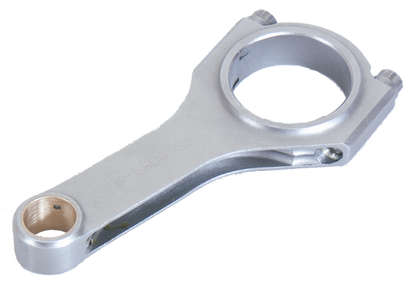

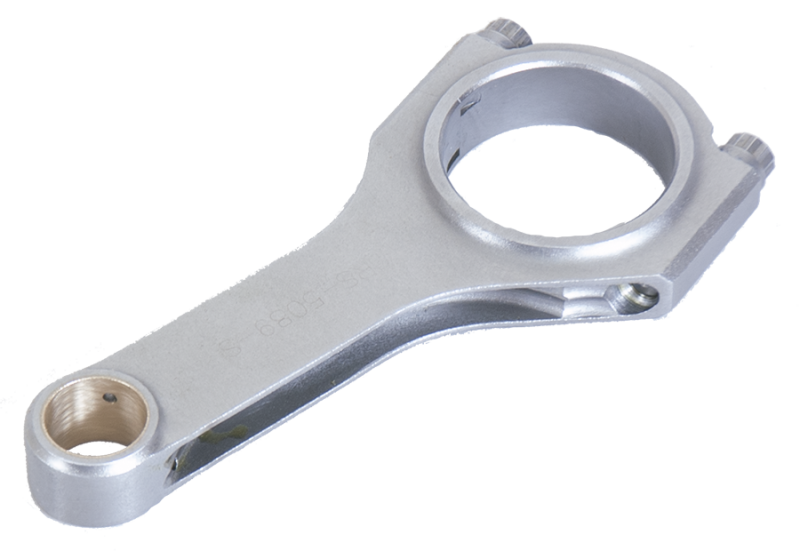

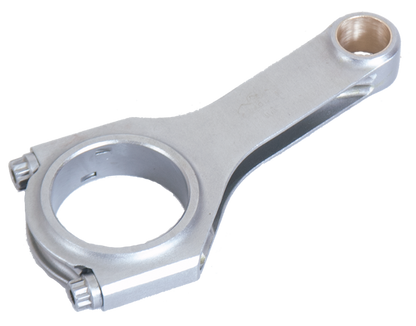

Eagle CRS5089S3D H-Beam Connecting Rods for 2013-21 Subaru BRZ/Scion FR-S/Toyota

Vehicle Fitment

• 2013-2021 Subaru BRZ (FA20, FWD)
• 2013-2016 Scion FR-S (FA20, RWD)
• 2017-2021 Toyota 86 (FA20, RWD)

Fitment Notes

• Does not fit 2022+ Subaru BRZ, Toyota GR86, or Scion FR-S models.
• Compatible with FA20 and 4U-GSE engine variants only.

Features

• Forged from high-quality 4340 steel for enhanced strength and durability.
• H-Beam design offers superior strength-to-weight ratio.
• Weight-matched to within ±1g for balanced performance.
• Equipped with ARP 2000 rod bolts rated for up to 900 horsepower.
• Fully machined and shot-peened surface for improved fatigue resistance.
• Bushed for full-floating piston pins, ensuring smooth operation.
• Designed for high RPM and forced induction applications.
• Recommended for competition use and high-performance builds.

Specifications

• Material: Forged 4340 steel
• Center-to-center length: 5.089 inches (129.4 mm)
• Pin size: 0.906 inches (22 mm)
• Rod journal diameter: 2.047 inches (52 mm)
• Housing bore: 2.165 inches (55 mm)
• Big end width: 0.842 inches (21.4 mm)
• Typical weight: 530 grams per rod
• Rod bolts: 3/8" ARP 2000
• Torque specification: 43 ft-lbs (use ARP moly lube only)

Included Components

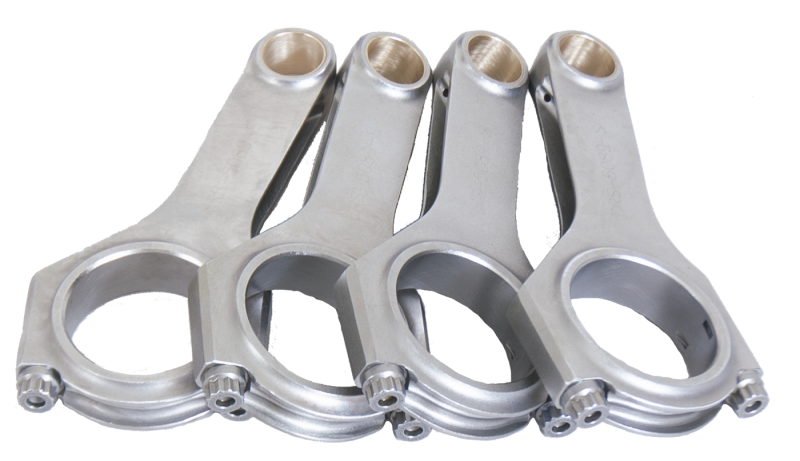

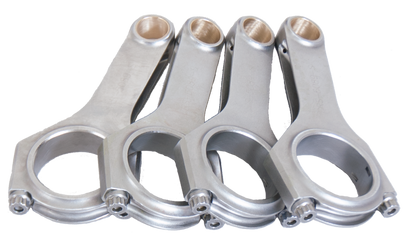

• 1x Set of 4 Eagle CRS5089S3D H-Beam Connecting Rods
• 4x ARP 2000 rod bolts

Product Description

The Eagle CRS5089S3D H-Beam Connecting Rods are engineered for high-performance applications, specifically designed for the 2013-2021 Subaru BRZ, 2013-2016 Scion FR-S, and 2017-2021 Toyota 86 models equipped with the FA20 or 4U-GSE engines. These rods are forged from premium 4340 steel, ensuring exceptional strength and durability to withstand the rigors of high RPM and forced induction setups.

Featuring a weight-matched set with ARP 2000 rod bolts rated for up to 900 horsepower, the CRS5089S3D rods are ideal for enthusiasts seeking to enhance their engine's performance. The H-Beam design offers a superior strength-to-weight ratio, while the fully machined and shot-peened surface improves fatigue resistance. Bushed for full-floating piston pins, these rods ensure smooth operation under demanding conditions.

Whether you're building a track-ready machine or a high-performance street car, the Eagle CRS5089S3D H-Beam Connecting Rods provide the reliability and strength needed to support your engine's power goals.
