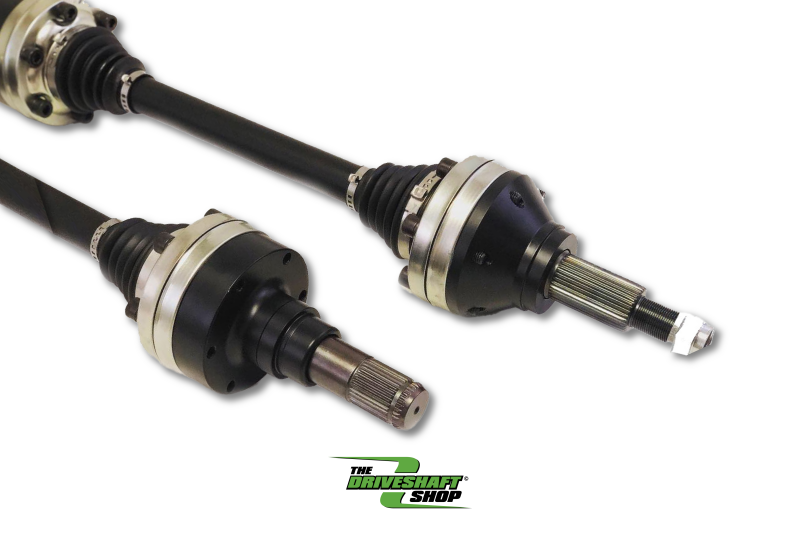

Driveshaft Shop 510340 Pro-Level Rear Axle Kit for 2009-2016 Nissan GT-R 3.8L AW

Vehicle Fitment

• 2009-2016 Nissan GT-R (R35, AWD, 3.8L Twin-Turbo V6)

Fitment Notes

• Designed for OEM rear differential and suspension geometry
• Compatible with factory AWD ATTESA E-TS drivetrain
• Recommended for high-horsepower street, drag, and track applications

Features

• Pro-Level rear axle system engineered for extreme torque loads
• Oversized 115mm constant-velocity joints for maximum strength
• 33-spline outer hubs significantly increase load capacity
• 300M aerospace-grade internal races for superior fatigue resistance
• Billet 4340 chromoly CV cages for impact and shock absorption
• Torsional center bars designed to handle AWD launch stress
• Precision-balanced assemblies for smooth high-speed operation
• Direct bolt-in upgrade over factory rear axles

Specifications

• Part Number: 510340
• Application: Rear axle upgrade kit
• Vehicle Platform: Nissan GT-R R35
• Engine Compatibility: 3.8L Twin-Turbo V6
• Drivetrain: AWD
• CV Joint Size: 115mm
• Outer Spline Count: 33-spline
• Material: 300M steel internals with 4340 chromoly components

Included Components

• 2x Pro-Level rear axle assemblies
• 2x 33-spline rear wheel hubs
• 2x differential stub shafts
• All required installation hardware

Product Description

The Driveshaft Shop 510340 Pro-Level Rear Axle Kit is engineered to handle the extreme demands of the 2009-2016 Nissan GT-R. Designed specifically for the R35 platform's AWD drivetrain, this system replaces the factory rear axles with significantly stronger components capable of supporting high-horsepower builds, aggressive launches, and sustained track abuse.

Featuring massive 115mm CV joints, 33-spline hubs, and aerospace-grade 300M internals, this kit dramatically improves torque capacity and reliability under load. Whether your GT-R is built for drag racing, road course competition, or high-boost street performance, the 510340 rear axle kit delivers the durability and confidence required when pushing the R35 platform beyond factory limits.
