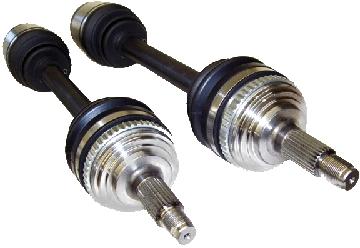

DSS 510076 Right B-Series Basic Axle for Civic/Integra Level 0

Vehicle Fitment

• 1990-1993 Acura Integra (DA)
• 1994-2001 Acura Integra (DC2/DC4)
• 1993-1995 Honda Civic EG (B-Series, hydraulic clutch)
• 1996-2000 Honda Civic EK (B-Series, hydraulic clutch or DOHC)

Fitment Notes

• Right-side axle only - this axle is a shared right-side component paired with different left-side counterparts depending on exact chassis (SKU 510036 for DA Integra, 510073 for EK DOHC, 510313 for EG/EK hydraulic clutch). Confirm your exact chassis and left-side counterpart before ordering. Removable ABS rings included.

Features

• Level 0 OEM-replacement axle - a step up from a cheap rebuild or generic aftermarket swap axle
• Chromoly center bar for improved strength over the factory bar
• Real billet inner CV with a larger, oversized tripod
• 1117 billet outer CV with a new heat-treat process
• Custom single-arc outer CV design - a wear advantage over the factory Honda dual-arc design, which tends to wear prematurely
• Removable ABS rings included
• Superior choice for a stock replacement or a swap application

Specifications

• Series: Level 0 (OEM Replacement)
• Center bar: Chromoly
• Inner CV: Billet, oversized tripod
• Outer CV: 1117 billet, single-arc design, heat-treated
• Side: Right
• ABS: Removable ABS rings included

Included Components

• 1x Right-side CV axle assembly with removable ABS ring

Product Description

The Driveshaft Shop 510076 is a Level 0 right-side CV axle built as a genuine step up from cheap rebuilt or generic aftermarket swap axles for the B-series Honda Civic and Acura Integra. It pairs a Chromoly center bar with a real billet inner CV and an oversized tripod, along with a 1117 billet outer CV that uses a custom single-arc design - a meaningful wear advantage over the factory Honda dual-arc design, which tends to wear out prematurely.

Because this right-side axle shares the same spline and bolt pattern across several sister B-series chassis, Driveshaft Shop pairs it with different left-side counterparts depending on the exact car - DA Integra, DC2/DC4 Integra, or EG/EK Civic. Removable ABS rings are included for owners running ABS. This is a solid, no-compromise choice for a factory-style replacement or general-purpose swap axle, though serious high-horsepower builds should look at Driveshaft Shop's higher-rated Level 5 or X4 lines instead.
