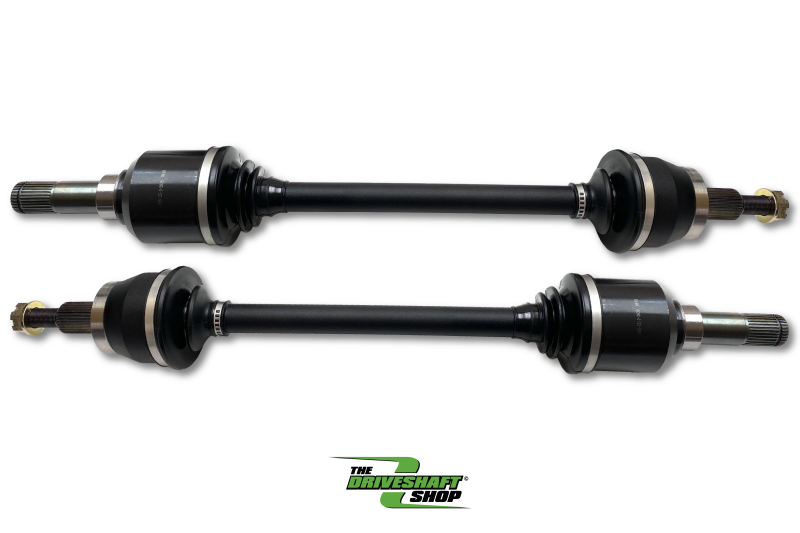

Driveshaft Shop 510282 Level 6 1400HP Right Rear Axle for 2010-2015 Chevy Camaro

Vehicle Fitment

• 2010-2015 Chevrolet Camaro SS (LS3 6.2L V8, RWD)
• 2012-2015 Chevrolet Camaro ZL1 (LSA 6.2L Supercharged V8, RWD)
• 2012-2015 Chevrolet Camaro Z/28 (LS7 7.0L V8, RWD)
• 2014-2017 Chevrolet SS Sedan (LS3 6.2L V8, RWD)

Fitment Notes

• Right (passenger) side axle only -- sold individually
• Companion left axle: Driveshaft Shop 510278 (RA5454X5)
• Direct bolt-in replacement -- no differential stub shaft modification required
• Works with OEM differential stub shafts -- stubs not included
• Compatible with stock and aftermarket limited-slip differentials
• Designed for lowered vehicles -- custom outer CV boot clears upper control arm without contact
• Not compatible with 2010-2015 Camaro V6 -- V8 models only

Features

• Rated to 1400HP+ -- designed for street/strip and road course use
• Certified 300M center bar -- full 30-spline (upgraded from OEM 28-spline)
• CNC rolled splines -- stronger than cut splines
• Custom 108mm CV joint -- matches Viper T56 output spline spec
• Certified 4340AQ cage -- REM polished with redesigned cage window radius
• 300M center race in the CV joint -- not used by any other manufacturer
• Custom outer CV boot -- designed to clear upper control arm on lowered cars
• Direct bolt-in design -- no machining or modification required
• Made in the USA
• 1-year warranty

Specifications

• Position: Rear right (passenger side)
• HP Rating: 1400HP+
• Center Bar Material: 300M chromoly
• Spline Count: 30-spline
• CV Joint Size: 108mm custom
• Cage Material: 4340AQ chromoly, REM polished
• Joint Style: CV
• Fitment Type: Direct bolt-in
• Previous SKU: RA5455X5
• Quantity: Sold individually (right side only)

Included Components

• 1x Right rear CV axle assembly (passenger side)
• Custom outer CV boot and hardware

Product Description

The Driveshaft Shop 510282 (formerly RA5455X5) is a Level 6 right-side rear CV axle rated to 1400HP+ for the 2010-2015 Chevrolet Camaro SS, ZL1, and Z/28, as well as the 2014-2017 Chevrolet SS Sedan. Engineered as a direct bolt-in replacement using OEM stub shafts, this axle requires no differential modification and installs in place of the factory unit. The centerpiece of the design is a certified 300M center bar running a full 30-spline interface -- the same spec as a Viper T56 output shaft -- paired with a custom 108mm CV joint using a 300M center race that no other manufacturer offers. The 4340AQ cage is REM polished and features a redesigned window radius for maximum strength without brittleness.

These axles are purpose-built for high-horsepower street cars that also see regular track use in drag, road course, and autocross applications. The custom outer CV boot was specifically engineered to avoid contact with the upper control arm on lowered vehicles -- a known clearance issue with competing designs. CNC rolled splines throughout ensure greater fatigue resistance compared to cut splines, as rolling compresses rather than removes material. Sold as a right-side unit individually -- pair with Driveshaft Shop 510278 for a complete axle set. Made in the USA and backed by a 1-year warranty.
