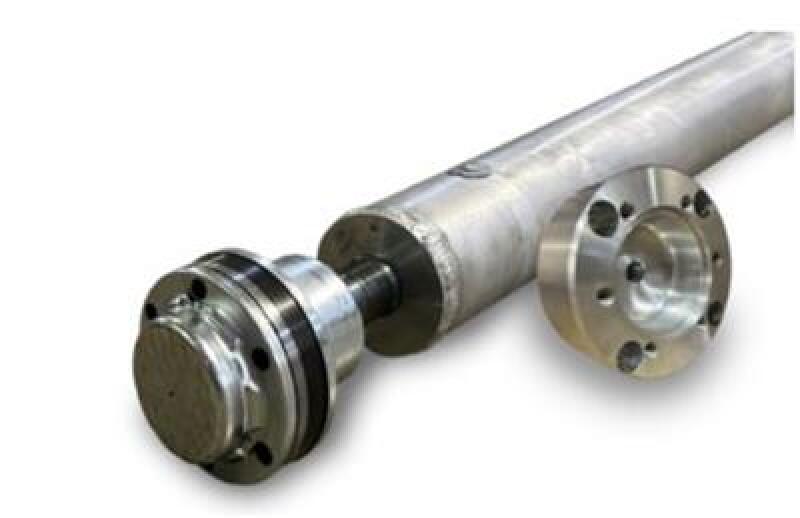

Driveshaft Shop 610199 Aluminum 1-Piece Dual CV Driveshaft 09-15 Cadillac CTS-V

Vehicle Fitment

• 2009-2015 Cadillac CTS-V (Automatic Transmission, LSA Engine)

Fitment Notes

• Designed specifically for the 6.2L LSA V8 engine with automatic transmission.
• Not compatible with manual transmission models.
• Not compatible with other Cadillac models or non-CTS-V trims.

Features

• 4" diameter aluminum construction for reduced weight and increased strength.
• One-piece design eliminates the need for a carrier bearing.
• Dual CV joints provide smooth power transfer and accommodate suspension movement.
• 300M spline stub system for enhanced durability and performance.
• Billet aluminum rear plate prevents crush collar damage during installation.
• Balanced using advanced equipment to ensure smooth operation at high speeds.
• Rated for applications up to 1,000 horsepower.
• Made in the USA with high-quality materials and craftsmanship.

Specifications

• Material: 6061 T-6 Aluminum
• Diameter: 4 inches
• Weight: Approximately 18 lbs
• Transmission Type: Automatic
• Position: Rear
• Includes: 1x Driveshaft, 1x Billet Aluminum Rear Plate, Installation Hardware

Included Components

• 1x 4" Aluminum One-Piece Driveshaft
• 1x Billet Aluminum Rear Plate
• Installation Hardware (Grade 12.9 bolts with lock nuts)

Product Description

The Driveshaft Shop 610199 is a high-performance upgrade for the 2009-2015 Cadillac CTS-V equipped with the 6.2L LSA V8 engine and automatic transmission. This one-piece aluminum driveshaft replaces the factory two-piece setup, eliminating the need for a carrier bearing and reducing overall weight. The 4" diameter shaft is constructed from 6061 T-6 aluminum, offering a balance of strength and lightweight performance.

Featuring dual CV joints, the 610199 ensures smooth power delivery and accommodates suspension movement, making it ideal for both street and track applications. The 300M spline stub system and billet aluminum rear plate enhance durability and prevent damage during installation. With a weight of approximately 18 lbs and a horsepower rating of up to 1,000, this driveshaft is designed to handle the demands of high-performance driving.

Installation is straightforward with the included hardware, and the driveshaft is balanced using advanced equipment to ensure smooth operation at high speeds. Made in the USA, the Driveshaft Shop 610199 is a reliable and durable upgrade for your CTS-V, providing improved performance and handling.
