DKM MS-006-075 Twin Disc Clutch for BMW N54 E60/E82/E90 8-Bolt

Vehicle Fitment

• BMW E60 535i / 535xi (N54 3.0L)
• BMW E82 135i (N54 3.0L)
• BMW E88 135i (N54 3.0L)
• BMW E90 335i / 335xi (N54 3.0L)

Fitment Notes

• 8-bolt single mass flywheel pattern. Confirmed for N54 applications up to 01/2009 production per one specialist retailer - confirm your exact build date/bolt pattern against DKM's fitment guide before ordering, as N54 clutch/flywheel bolt patterns changed partway through production.

Features

• Twin 240mm sprung organic disc setup holds 100-200% more torque capacity than the factory clutch
• Additional contact surface area from the twin-disc design distributes pressure and heat more evenly than a single-disc setup
• Twin-plate design provides roughly twice the torque-holding ability at half the pedal pressure of an equivalent single-disc clutch
• Organic friction material retains smooth engagement and daily drivability - stop-and-go traffic, hill starts, and town driving stay manageable
• Improved heat tolerance reduces wear and fade versus stock, extending clutch life for track-driven cars
• Developed by DKM in collaboration with Competition Clutch for consistent quality and performance

Specifications

• Series: DKM MS (Stage 3, twin disc)
• Torque capacity: Up to 650-660 ft-lbs (~900 Nm) to the wheels
• Disc configuration: Twin 240mm sprung organic discs
• Flywheel: Steel, single-mass, 8-bolt
• Torque capacity increase: 100-200% over stock

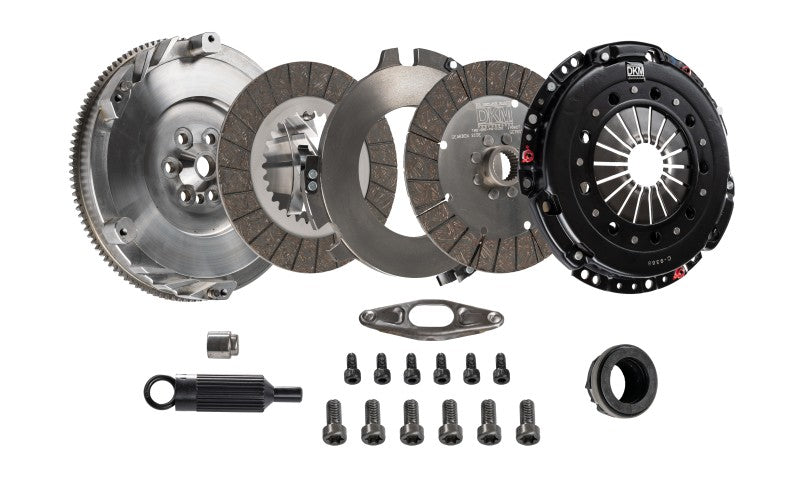

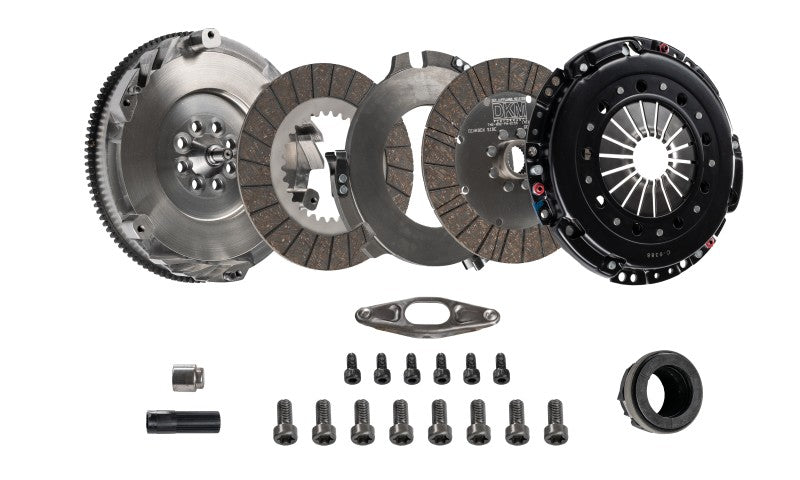

Included Components

• 1x Pressure plate
• 2x Sprung organic clutch discs
• 1x Steel single-mass flywheel (8-bolt)
• 1x Pilot bearing/bushing (when applicable)
• 1x Release bearing (when applicable)
• 1x Alignment tool
• Mounting bolts

Product Description

The DKM MS-006-075 Stage 3 Twin Disc Clutch Kit is built for N54-powered BMWs - the E60 535i/535xi, E82/E88 135i, and E90 335i/335xi - that have outgrown what a single-disc clutch can reliably hold. Twin 240mm sprung organic discs push torque capacity to roughly 650-660 ft-lbs (about 900 Nm) at the wheels, a 100-200% increase over stock, while spreading pressure and heat across more contact surface area for a longer service life under repeated hard use.

Despite the serious torque rating, the organic friction material keeps the clutch genuinely street-drivable - stop-and-go traffic, hill starts, and daily commuting stay manageable rather than feeling like a race car clutch. The twin-plate design also roughly halves the pedal effort needed to hold the same torque a comparable single-disc clutch would require. The kit includes a steel single-mass flywheel with an 8-bolt pattern, so it's a complete, ready-to-install package rather than requiring a separate flywheel purchase.
