DKM MS-006-054 MS Twin Disc Clutch Kit w/Flywheel for 2001-2006 BMW M3 S54 3.2L

Vehicle Fitment

• 2001-2006 BMW M3 (E46, S54 3.2L, RWD) - Manual Transmission Only

Fitment Notes

• Manual transmission only - not compatible with SMG (Sequential Manual Gearbox) applications
• Due to the use of a lightened single mass flywheel, some NVH (noise, vibration, harshness) or drivetrain chatter may occur during operation, especially at low RPM
• Additional modifications can increase or decrease NVH levels

Features

• Twin 240mm organic disc design distributes pressure and heat across a larger contact surface for improved torque capacity and reduced wear
• Designed to hold approximately 900 Nm (664 ft-lbs) at the wheels - 100% to 200% more torque capacity than OEM
• Steel single mass flywheel replaces the factory flywheel for quicker throttle response and rev matching
• High-grade organic friction material provides strong, consistent engagement for both street and track use
• CNC-machined billet components ensure tight tolerances, improved shift quality, and longer clutch life
• Engineered specifically for the BMW E46 M3 S54 platform by DKM, a German performance clutch specialist
• Suitable for high-horsepower street builds, track days, and motorsport applications requiring reliable power transfer
• Complete bolt-in kit - all necessary hardware and ancillary components included for a straightforward installation

Specifications

• Clutch Disc Diameter: 240mm (twin disc)
• Disc Material: Organic (dual disc)
• Flywheel Type: Steel single mass
• Torque Capacity: ~900 Nm / ~664 ft-lbs at the wheels
• Torque Increase: 100-200% over OEM
• Engine Compatibility: BMW S54 3.2L inline-6
• Transmission: Manual (6-speed)
• Drive Type: RWD
• Total Kit Weight (approx.): ~40 lbs (hat + clutch assembly)

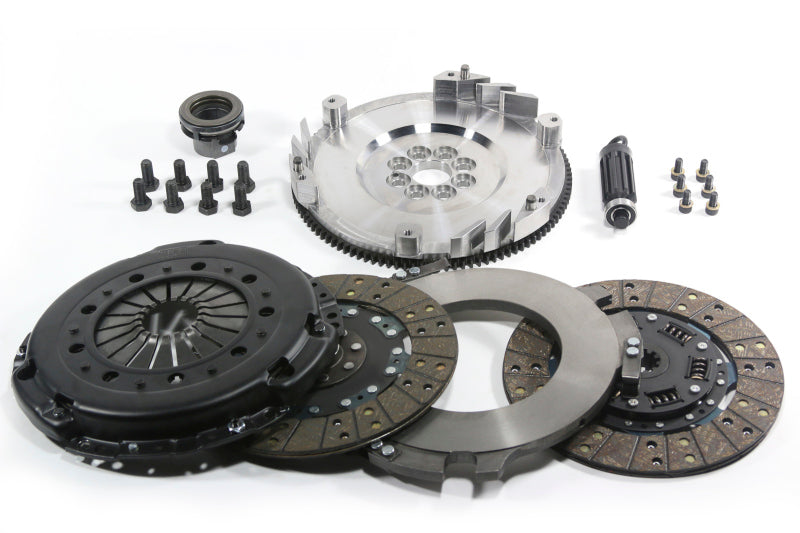

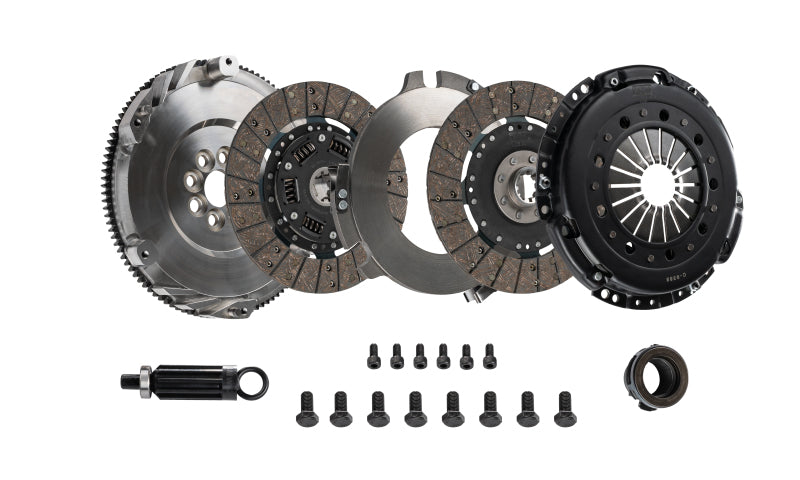

Included Components

• 1x Pressure Plate
• 2x Organic Clutch Discs (240mm)
• 1x Steel Single Mass Flywheel
• 1x Pilot Bearing/Bushing
• 1x Release (Throw-out) Bearing
• 1x Clutch Alignment Tool
• 1x Hardware/Bolt Kit

Product Description

The DKM MS-006-054 is a Stage 3 MS Twin Disc Clutch Kit purpose-built for the 2001-2006 BMW E46 M3 with the S54 3.2L engine. Developed by DKM - a German clutch specialist working in collaboration with Competition Clutch - this kit is engineered to handle the power demands of heavily modified M3 builds without sacrificing street drivability. The twin 240mm organic disc setup doubles the friction contact surface compared to a single-disc arrangement, enabling 100-200% more torque capacity at the wheels while promoting more even heat distribution and extended component life.The included steel single mass flywheel replaces the factory unit to reduce rotational inertia, delivering sharper throttle response and quicker rev matching during aggressive driving. This makes the MS-006-054 a strong choice for enthusiasts who push their E46 M3 on track days, canyon runs, or in competition environments where clutch slippage and fade under sustained load are concerns. Note that single mass flywheels may introduce some additional NVH or drivetrain chatter, particularly at idle or low RPM - this is normal and expected behavior for this type of performance upgrade.This kit is designed for manual transmission applications only and is not recommended for SMG-equipped vehicles. It ships as a complete assembly including the pressure plate, two organic discs, steel flywheel, pilot bearing, release bearing, alignment tool, and all required hardware, making it a straightforward drop-in upgrade for experienced installers or professional shops familiar with BMW drivetrain work.
