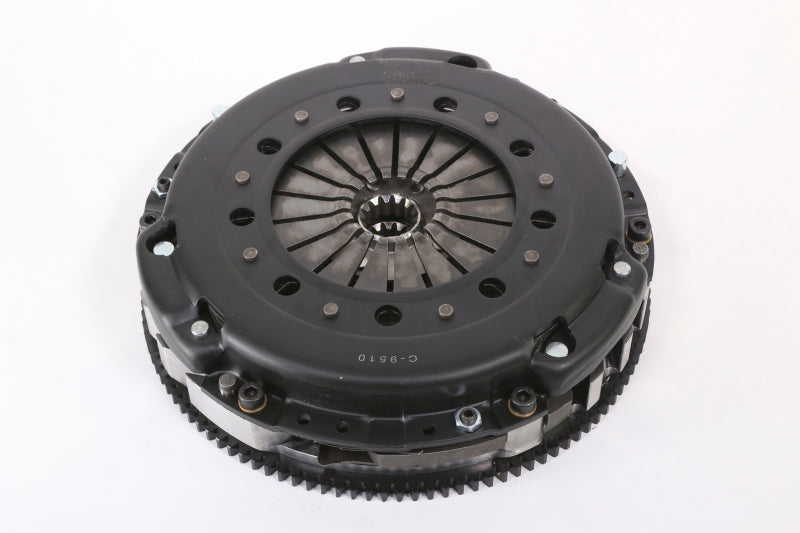

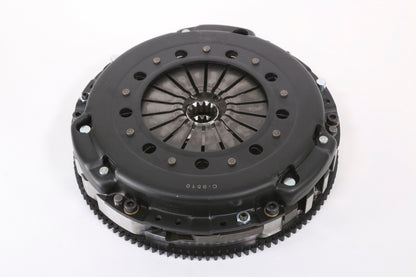

DKM MS-006-074 Stage 3 MS Twin Disc Clutch Kit w/ Flywheel for BMW N54 6-Bolt

Vehicle Fitment

• 2008-2013 BMW 135i (E82/E88) N54 3.0L
• 2007-2010 BMW 335i (E90 Sedan) N54 3.0L
• 2007-2010 BMW 335xi (E90 Sedan) N54 3.0L
• 2007-2010 BMW 335i (E92 Coupe) N54 3.0L
• 2007-2010 BMW 335xi (E92 Coupe) N54 3.0L
• 2007-2010 BMW 335i (E93 Convertible) N54 3.0L
• 2008-2010 BMW 535i (E60) N54 3.0L
• 2008-2010 BMW 535xi (E60) N54 3.0L
• 2009-2016 BMW Z4 sDrive35i (E89) N54 3.0L

Fitment Notes

• For vehicles with 6-BOLT flywheel flange pattern
• Production date from 02/2009-2010 with 6-bolt flange
• For vehicles with 8-bolt flange, use part number MS-006-075
• Replaces factory dual mass flywheel with single mass flywheel

Features

• Twin disc design holds 100% to 200% more torque capacity than stock
• Rated for 900 Nm (660 ft/lbs) torque at the wheels
• Twin 240mm sprung organic discs for smooth engagement
• Additional contact surface area for higher torque capacity and longer lifecycle
• 4130 chromoly steel single mass flywheel reduces rotating mass
• Sprung hub design maintains street-friendly pedal feel
• High-grade materials provide increased strength and heat tolerance
• Prevents clutch wear and fade under high-performance conditions
• Suitable for street and track use
• Complete kit includes all necessary components for installation

Specifications

• Part Number: MS-006-074
• Brand: DKM (Der Kupplungs Meister)
• Series: MS (Stage 3 Performance)
• Type: Twin Disc Clutch Kit with Flywheel
• Disc Diameter: 240mm
• Number of Discs: 2 (Twin)
• Disc Material: Organic (Sprung)
• Flywheel Material: 4130 Chromoly Steel
• Flywheel Type: Single Mass
• Flywheel Bolt Pattern: 6-Bolt
• Spline Count: 10
• Spline Size: 28.6mm
• Torque Capacity: 900 Nm / 660 ft/lbs (at wheels)
• Application: Street/Track
• Weight: 54.2 lbs
• UPC: 850041702407

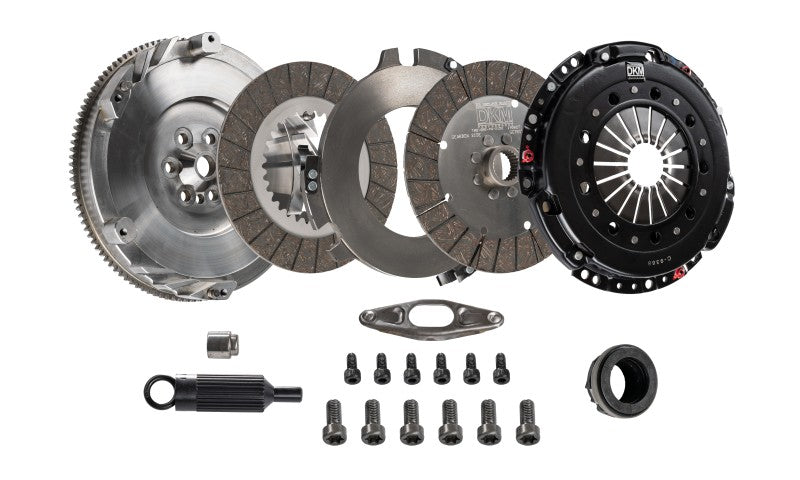

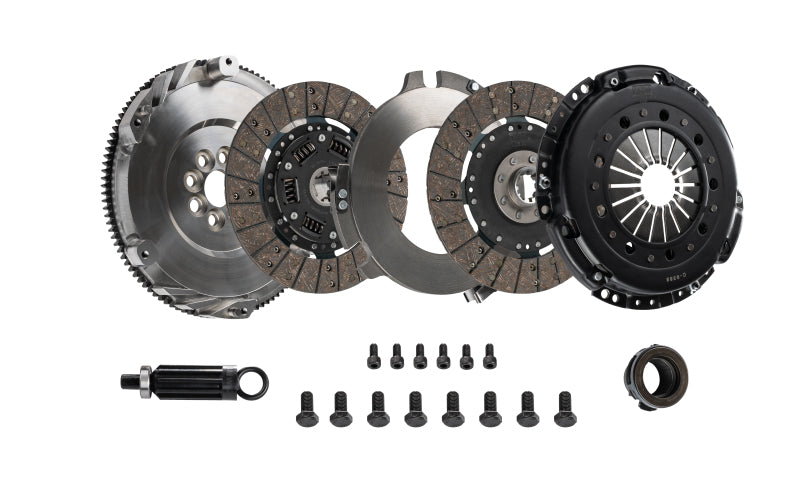

Included Components

• 1x Twin Disc Pressure Plate Assembly
• 2x 240mm Sprung Organic Clutch Discs
• 1x 4130 Chromoly Steel Single Mass Flywheel
• 1x Pilot Bearing/Bushing
• 1x Release/Throw-Out Bearing (when applicable)
• 1x Clutch Alignment Tool
• Flywheel Bolts and Installation Hardware

Product Description

The DKM MS-006-074 Stage 3 MS Twin Disc Clutch Kit is engineered for BMW N54 twin-turbo owners who have exceeded the limits of their factory clutch. Whether you're running a bolt-on setup, full bolt-ons with a tune, or a single turbo conversion, the MS series twin disc clutch is designed to handle 100% to 200% more torque capacity than stock, rated for up to 900 Nm (660 ft/lbs) at the wheels. The twin 240mm organic disc setup provides significantly more contact surface area than a single disc clutch, allowing the system to handle more torque while simultaneously extending clutch life through better heat distribution. The sprung hub organic disc design maintains a street-friendly pedal feel that aggressive street drivers and track enthusiasts can appreciate, avoiding the harsh engagement characteristics of comparable single-disc high-torque clutches. The included 4130 chromoly steel single mass flywheel replaces the heavy factory dual mass flywheel, reducing rotating mass for improved throttle response and quicker revs. DKM (Der Kupplungs Meister - "The Clutch Master") specializes in European performance clutch applications and works in collaboration with Competition Clutch to deliver high-quality components at competitive prices. This kit is specifically for 6-bolt flywheel flange vehicles produced from 02/2009-2010; verify your bolt pattern before ordering.
