Diode Dynamics DD8726 Kuat IBEX A3 Short Bed for Ford Ranger/Nissan Frontier

Vehicle Fitment

• 2019-2025 Ford Ranger (Short Bed)
• 2022-2025 Nissan Frontier (Short Bed)

Fitment Notes

• A3 configuration is sized for short bed trucks; not compatible with long bed configurations
• Integrates with factory bed rails for a secure, rattle-free mount

Features

• Lightweight, durable powdercoated aluminum bed rack construction
• Integrated SS10 3-in-1 Chase Light with 21 programmable strobing patterns
• CHMSL-compliant SafetyStrobe 3rd brake light with 3 programmable patterns
• Additional high-power reverse light function
• Four Stage Series Rock Lights with swappable white and amber lenses
• Full-height or mid-height configuration right out of the box
• Adjustable telescopic crossbars with multiple T-channels for accessories
• Magnetic programming tool for chase light function setup
• Limited Lifetime Warranty on Diode Dynamics lighting components

Specifications

• Static Weight Capacity: 1,200 lbs
• Dynamic Weight Capacity: 300 lbs
• Rack Shipping Dimensions: 52.3" L x 20.3" W x 9.2" H
• Rack Weight: 74 lbs
• Color Temperature: 6000K
• Rock Light Power: 4W each
• Intensity: White 4.5 cd, Amber 4.5 cd, Red 2.0 cd
• Compliance: SAE J1957 CHMSL

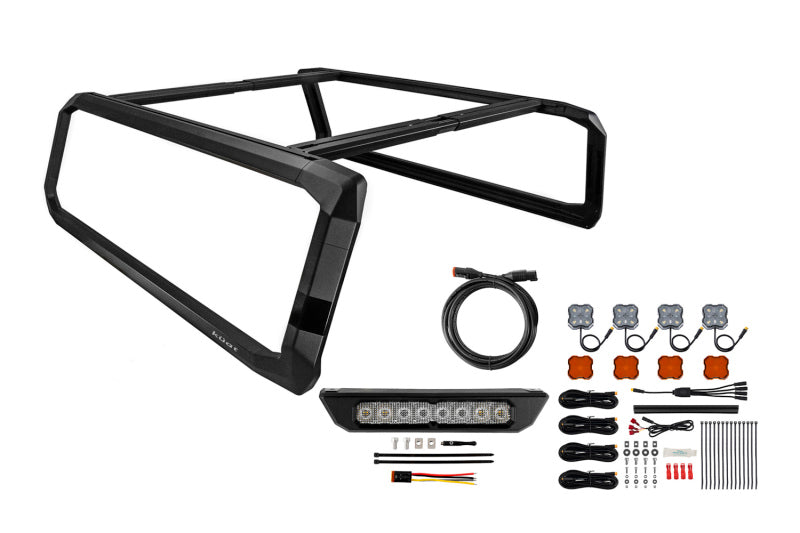

Included Components

• 1x Kuat IBEX Bed Rack (A3, Short Bed)
• 1x SS10 Chase Lightbar
• 1x Magnetic Programming Tool
• 4x Stage Series Rock Lights
• 4x White Diffused Rock Light Lenses
• 4x Amber Rock Light Lenses
• 1x DT 4-Pin 3M Extension Wire
• 4x 5M M8 Extension Wires
• 1x M8 4-Way Splitter
• 1x DT 4-Pin Pigtail
• 1x T-Tap Harness
• 4x T-Taps
• 16x Zip Ties
• 1x Wire Retention Strip
• 1x Mounting Hardware Set
• 1x Installation Guide

Product Description

The Diode Dynamics DD8726 Kuat IBEX A3 Bed Rack Kit brings a purpose-built aluminum rack platform to short-bed 2019-2025 Ford Ranger and 2022-2025 Nissan Frontier trucks, with a static weight capacity of 1,200 lbs and dynamic capacity of 300 lbs. The rack integrates with the factory bed rails for a secure, rattle-free fit, and its modular design supports full-height or mid-height configurations along with adjustable telescopic crossbars for mounting gear, a rooftop tent, or overland accessories.

Built into the rack is an integrated SS10 Chase Lightbar with 21 programmable strobing patterns, a CHMSL-compliant SafetyStrobe 3rd brake light with 3 patterns, and an additional high-power reverse light. Four Stage Series Rock Lights with swappable white and amber lenses add usable light for loading and unloading after dark. A magnetic programming tool handles setup, and the kit includes the wiring and hardware for a clean installation, backed by a Limited Lifetime Warranty on the lighting components.
