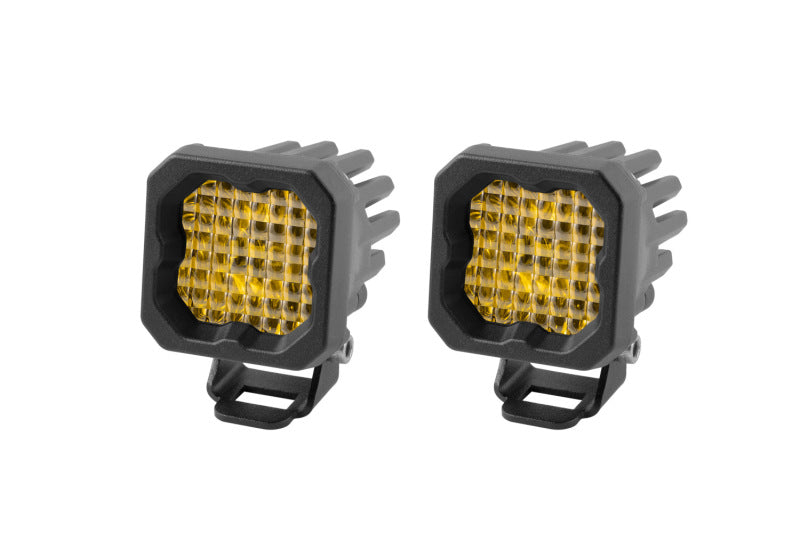

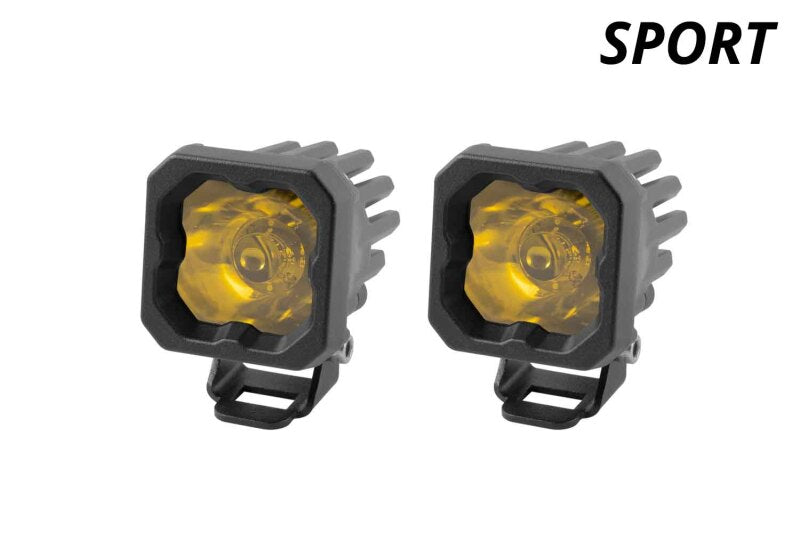

Diode Dynamics DD6443P SSC1 Yellow Sport LED Pod Wide Beam 1305 Lumens Pair

Vehicle Fitment

• Universal Fit - Compatible with cars, trucks, motorcycles, and UTVs

Fitment Notes

• Universal mount; no vehicle-specific bracket included - verify mounting location before installation
• Amber backlit function requires DD4092 wiring harness (sold separately)
• Polarity sensitive - ensure correct wiring orientation during installation

Features

• Ultra-compact single-LED form factor fits where larger pods cannot
• High-intensity 10-watt LED chip producing 1,305 lumens per pod
• Custom-engineered TIR optics for maximum light efficiency and reduced glare

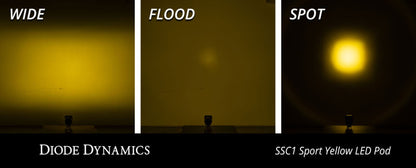

• Wide beam pattern with 50° horizontal x 20° vertical spread

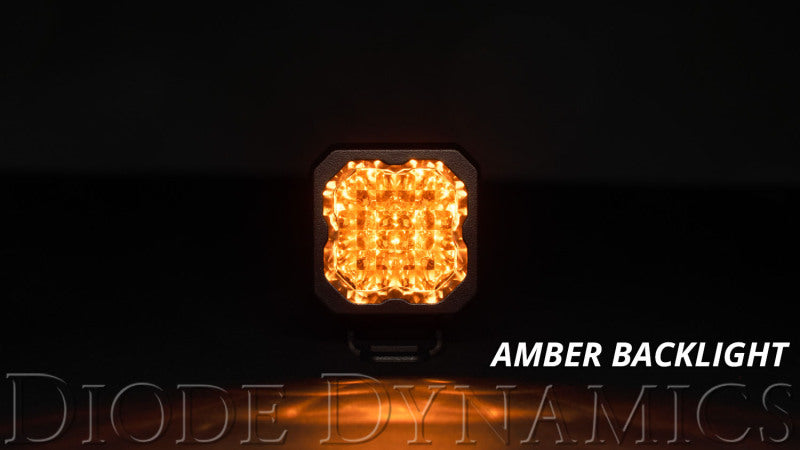

• Amber backlighting for a bold, distinctive appearance
• Pin-fin heatsink design for superior thermal management
• IP67-rated waterproof construction with SAE J575 compliance

Specifications

• Lumens: 1,305 per pod (2,610 per pair)
• Wattage: 12.8W (main LED), 0.3W (backlight)

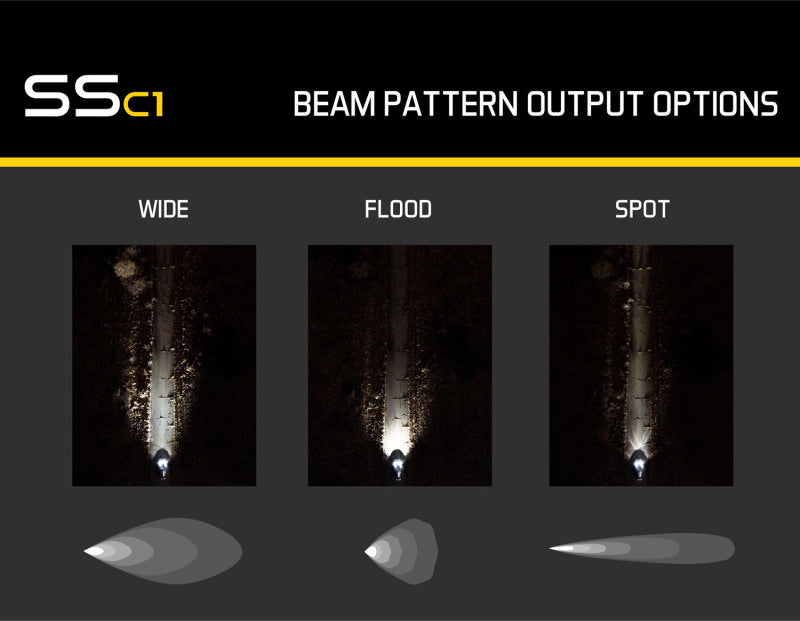

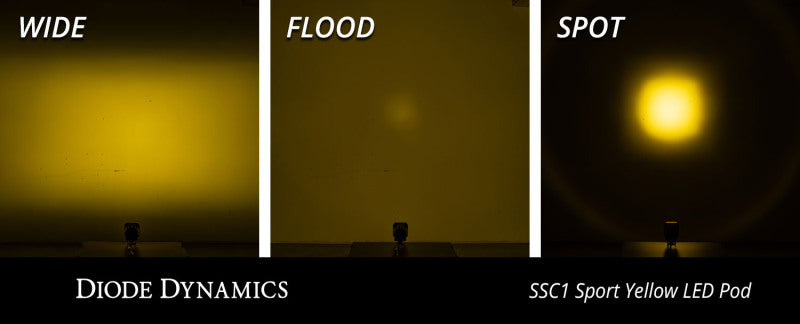

• Beam Pattern: Wide - 50° x 20°
• LED Color: Yellow | Backlight Color: Amber
• Input Voltage: 9-16 VDC | Current Draw: 1A @ 12.8 VDC
• IP Rating: IP67 | Operating Temp: -40°F to 185°F
• Housing: Aluminum | Lens: Polycarbonate | Brackets: Steel
• Length: 2 inches | Connector: DT-style Deutsch
• Certification: SAE J575 | Warranty: Lifetime

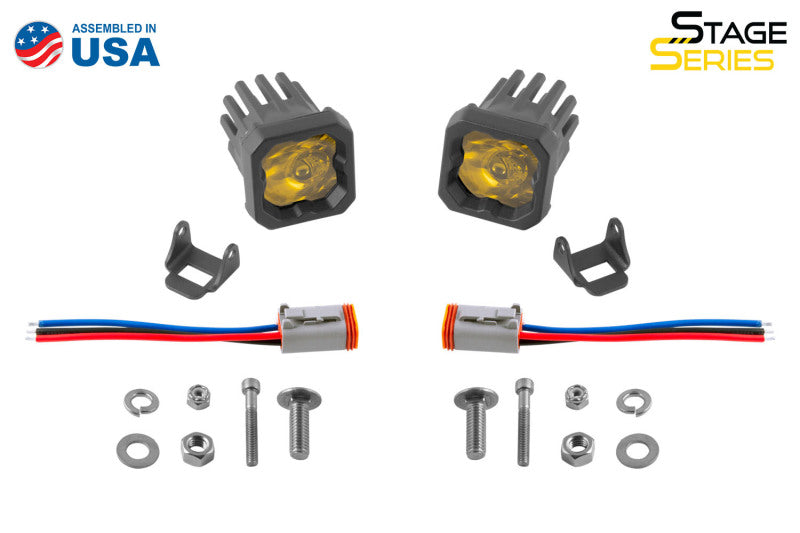

Included Components

• 2x Stage Series C1 LED Pods (Yellow/Sport)
• 2x Deutsch-style wire pigtails (6-inch bare leads)
• 2x Mounting brackets with hardware

Product Description

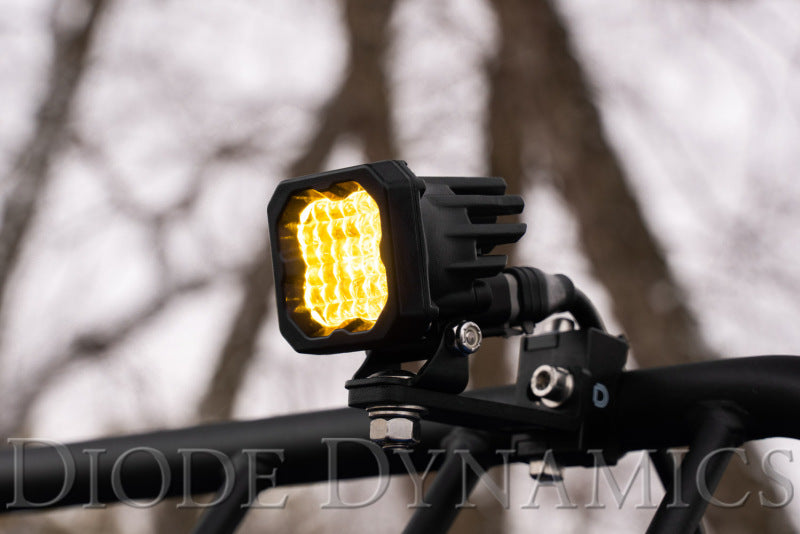

The Diode Dynamics Stage Series C1 (SSC1) Yellow Sport LED Pod pair delivers class-leading output in an ultra-compact 2-inch form factor. Powered by a single high-intensity 10-watt LED chip and precision TIR optics, each pod produces 1,305 lumens of focused yellow light with a 50°x20° wide beam - ideal for fog, trail, and auxiliary lighting where broad illumination is needed without excessive glare.

Built to last in demanding conditions, these pods carry an IP67 waterproof rating and are SAE J575 certified, with an operating range from -40°F to 185°F. The integrated Deutsch-style DT connector simplifies wiring, and the amber backlighting adds a premium aesthetic touch. Designed, stress-tested, and assembled in the USA, the DD6443P is backed by Diode Dynamics' Lifetime Warranty - making it a reliable upgrade for off-road builds, overlanding rigs, or any vehicle in need of durable auxiliary lighting.
