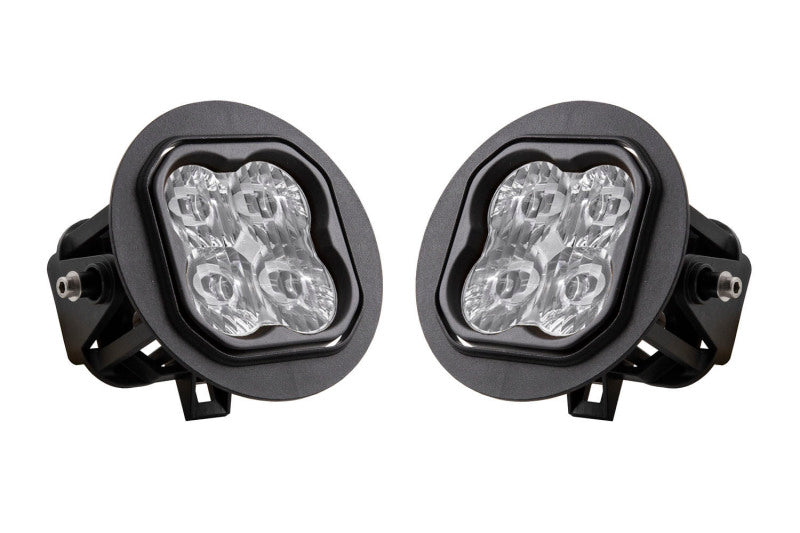

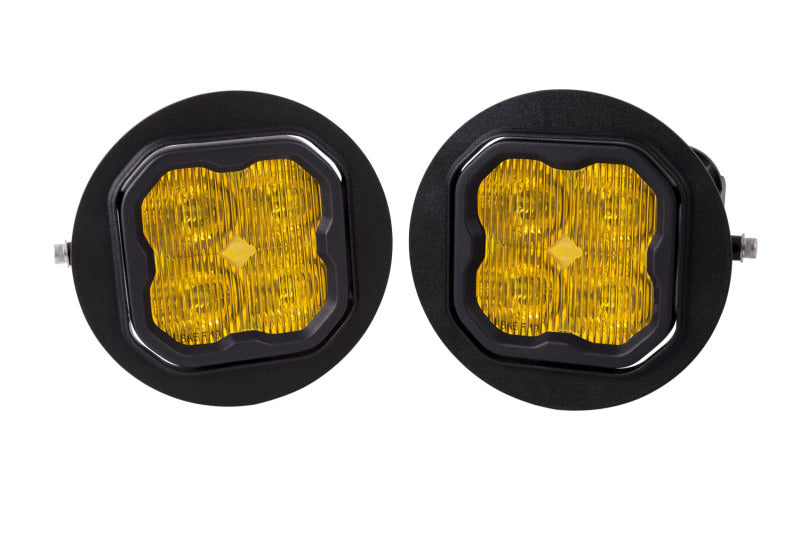

Diode Dynamics DD7021 SS3 Sport Type FT Yellow SAE Fog LED Kit ABL Tacoma Tundra

Vehicle Fitment

• 1996-2010 Dodge Viper (All Trims)
• 2011-2014 Ford F-150 (All Trims)
• 2008-2013 Toyota Sequoia (All Trims)
• 2004-2006 Toyota Solara (All Trims)
• 2005-2011 Toyota Tacoma (All Trims)
• 2007-2013 Toyota Tundra (All Trims)

Fitment Notes

• Direct-replacement fog light kit - mounts into the factory fog light housing location using existing mounting points. No cutting, drilling, or modification required.
• Wire adapters included (9006 DT 2-Pin for main beam, 9006 DT 4-Pin backlight tap wire kit) - connects directly to factory fog light bulb sockets with no additional wiring or splicing needed.
• Sold as a Pair (Left + Right side, one complete kit).
• SAE J583 compliant when installed and aimed in accordance with your state's regulations - legal for on-road use as a fog lamp.
• The amber backlight circuit connects to the factory tap wire kit - it can be wired to a separate vehicle signal for independent accent operation while the main fog beam is off.

Features

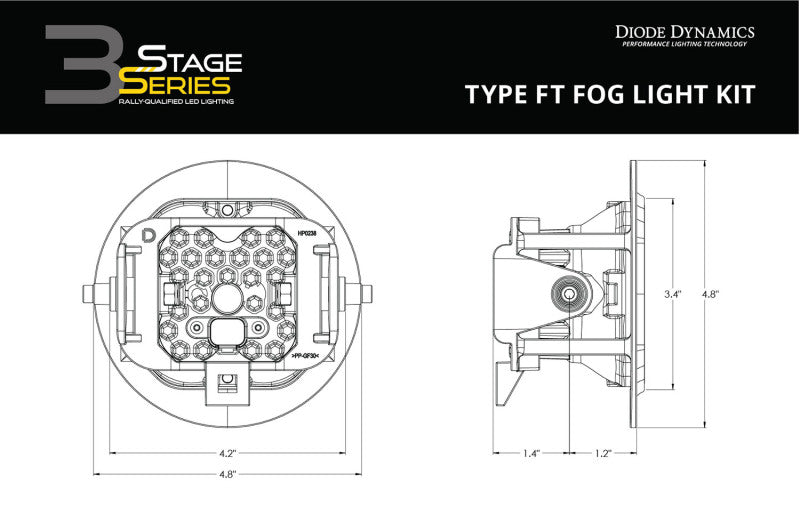

• Direct factory-replacement fit - the Type FT bracket was CAD-designed specifically for the listed Ford, Toyota, and Dodge vehicles to bolt directly into the OEM fog light housing opening using the factory mounting points, providing a factory-style appearance with no modification required.
• SAE J583-compliant yellow fog beam output - legal for on-road use as a fog lamp when installed and aimed per local regulations. Yellow light cuts through fog, rain, and low-visibility conditions more effectively than white, with less backscatter toward the driver.

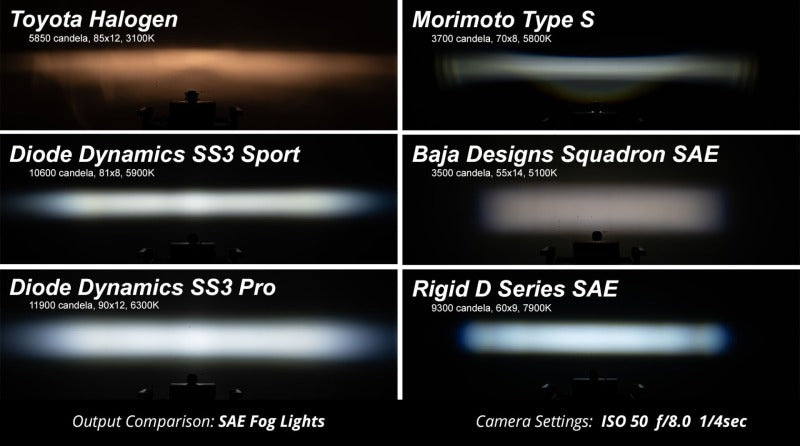

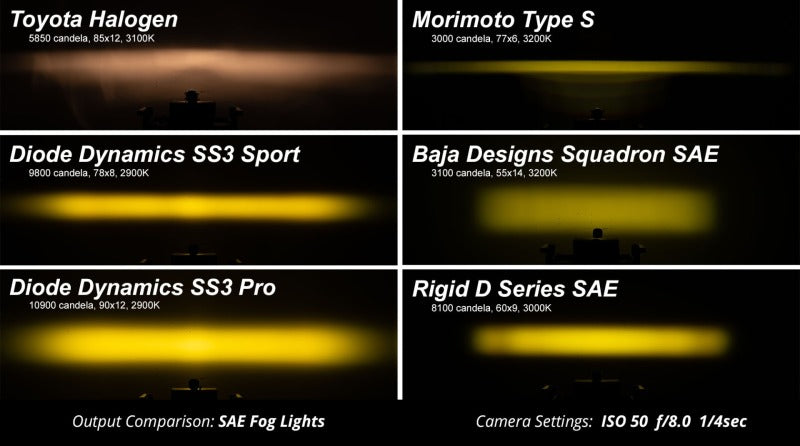

• Custom-engineered TIR (Total Internal Reflection) optic delivers higher output intensity than any other 3-inch LED pod on the market, concentrating all LED output into the fog beam pattern without wasted light or glare to oncoming traffic.
• Sport tier - 14.5 watts per pod with nine high-intensity LEDs, delivering meaningful improvement over stock fog lights in both output and color quality.

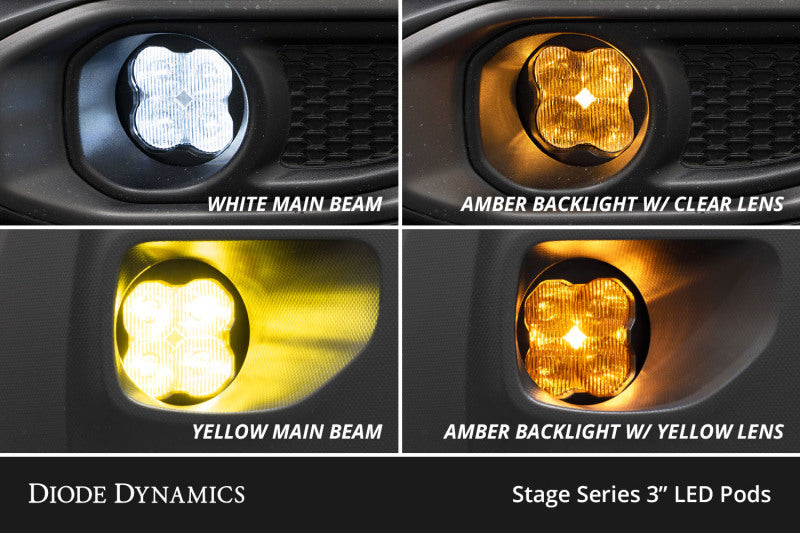

• Amber backlight illuminates the entire TIR optic face in a brilliant amber glow as a distinctive accent - activates independently of the main fog beam, wirable to running lights or parking lights for an always-on presence light when the fogs are off.

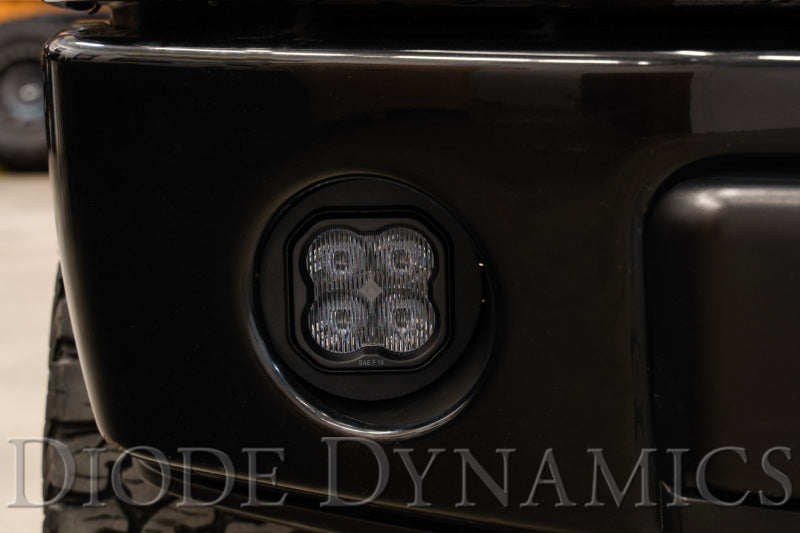

• Custom bracket with integrated bezel provides a clean, factory-style finished appearance once installed - the SS3 pod sits within the bezel for an OEM-like look that matches the surrounding bumper styling.
• Plug-and-play installation using included wire adapters - connects to factory bulb sockets with no cutting, splicing, or additional wiring required.
• Durable powdercoated aluminum housing with pin-fin heatsink for long-term thermal management and corrosion resistance.
• Engineered and assembled in the USA by Diode Dynamics.
• Backed by Diode Dynamics' 8-year limited warranty (Stage Series products receive an extended 8-year warranty - 3 years replacement, plus 5 additional years coverage for manufacturing defects).

Specifications

• Part Number: DD7021
• Brand: Diode Dynamics
• Series: Stage Series SS3 (3-inch)
• Bracket Type: Type FT
• Tier: Sport
• Color: Yellow (Selective Amber)
• Beam Pattern: SAE Fog (SAE J583 compliant)
• Backlight: Amber (ABL)
• Quantity: Pair (2 pods + 2 brackets)
• Power per Pod: 14.5 watts
• LEDs per Pod: 9
• Operating Voltage: 9-16V
• Current: 1.1A
• Optic: Custom TIR (Total Internal Reflection)
• Housing: Powdercoated Aluminum
• Wire Adapters: 9006 DT 2-Pin (main beam) + 9006 DT 4-Pin backlight tap wire kit (included)
• Installation: Plug-and-play, no modification required
• SAE Compliance: SAE J583 (fog lamp) when properly installed and aimed
• Warranty: 8 Years (Diode Dynamics Stage Series Limited Warranty)

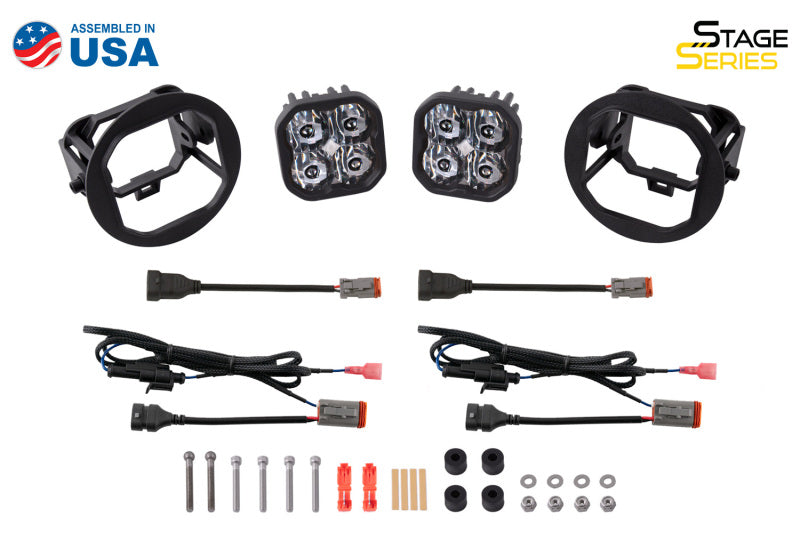

Included Components

• 2x SS3 Sport Yellow SAE Fog LED Pods (with Amber Backlight)

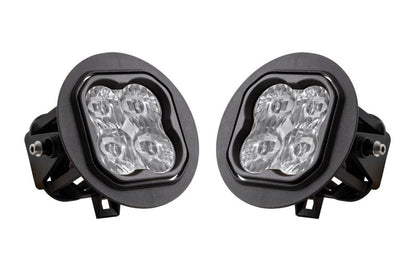

• 2x Type FT Mounting Brackets (with integrated bezel)
• 2x 9006 DT 2-Pin Wire Adapters (main beam)
• 2x 9006 DT 4-Pin Backlight Tap Wire Kits
• Mounting Hardware
• Mounting Guide

Product Description

The Diode Dynamics DD7021 is an SS3 Sport Type FT Yellow SAE Fog Light Kit with Amber Backlight - a direct-fit LED fog light upgrade for the Toyota Tacoma (2005-2011), Toyota Tundra (2007-2013), Toyota Sequoia (2008-2013), Toyota Solara (2004-2006), Ford F-150 (2011-2014), and Dodge Viper (1996-2010). The Type FT bracket was CAD-designed specifically for these vehicles to bolt directly into the factory fog light opening using existing mounting points, placing the SS3 3-inch pod behind a factory-matched bezel for an OEM-style finished appearance.

The yellow SAE J583-compliant fog beam output cuts through fog, rain, and adverse weather more effectively than white light, with selective amber wavelengths that reduce backscatter toward the driver in low-visibility conditions. The custom TIR optic delivers the highest output intensity available in a 3-inch pod format by directing all LED output precisely into the fog beam pattern without wasted light or glare. The included wire adapters plug directly into the factory 9006 fog light sockets - no cutting, splicing, or additional wiring is needed for installation. The amber backlight activates the full TIR optic face as a distinctive accent light, independently wirable via the included tap wire kit. Stage Series products carry Diode Dynamics' 8-year limited warranty.
