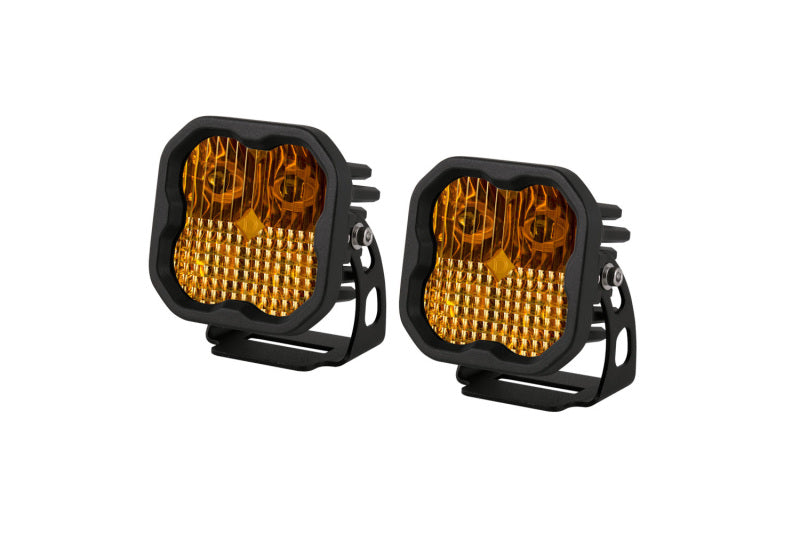

Diode Dynamics DD6970P SS3 Yellow Max Combo ABL LED Pod 3 Inch 3000K 38W Pair
- Regular price
-
$507.95 - Regular price
-
$599.95 - Sale price
-
$507.95
In Stock: 4
Orders by 1pm PST ship same business dayFree Shipping w/2-4 Day Delivery
Authorized Dealer
Fitment Guarantee
90-Day Free Returns
Couldn't load pickup availability
Product Specification:
SKU:DIODD6970P
MPN: DD6970P
UPC: 691025932669
Weight: 2.4 lb
Inventory: 4
Type: Light Accessories and Wiring
Vehicle Fitment
- Universal Fit - Compatible with cars, trucks, Jeeps, UTVs, and off-road vehicles
Fitment Notes
- Universal Standard mount - also available in Flush Mount configuration (sold separately)
- Amber backlight requires a compatible Diode Dynamics wiring harness (sold separately); Light Duty Dual Output Harness supports up to two SS3 pods
- For more than two SS3 pods, use the Heavy Duty Dual Output Harness with a Deutsch DT Splitter (sold separately)
- Due to the yellow lens, backlight is fixed amber - no color selection available
- Fog pattern meets SAE J583 standard as a road-legal Foglamp when properly aimed
- Replacement lenses available separately to swap beam pattern or color without replacing the pod
- Polarity sensitive - ensure correct wiring orientation during installation
Features
- Highest output intensity of any 3-inch LED pod ever made - up to 251,000 candela (Spot), illuminating over a kilometer away
- Selective yellow 3000K output for superior contrast in fog, rain, and dust
- Combo beam pattern - 65° x 25° focused rectangular spread combining driving and flood coverage
- Osram Boost HX cutting-edge automotive LEDs at 38.5W for extreme intensity in a 3-inch package
- Custom TIR optics serve as both the optic and main lens - eliminates up to 10% outer lens light loss

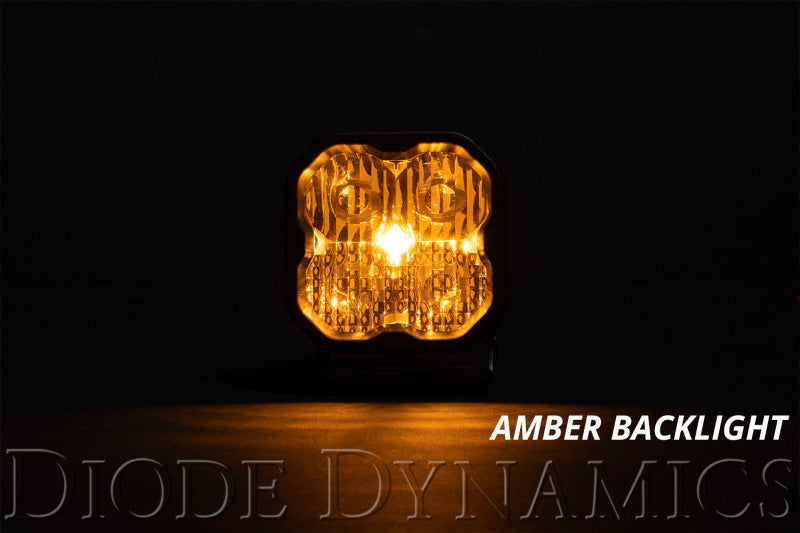

- Fixed amber backlight fully illuminates the TIR optic for a distinctive accent look
- IP69K waterproof, SAE J575-tested for vibration, moisture, and corrosion resistance
Specifications
- Wattage: 38.5W (main) | 0.4W (backlight)
- LED: Osram Boost HX automotive-grade emitters | Current: 3A @ 12.8V (main)

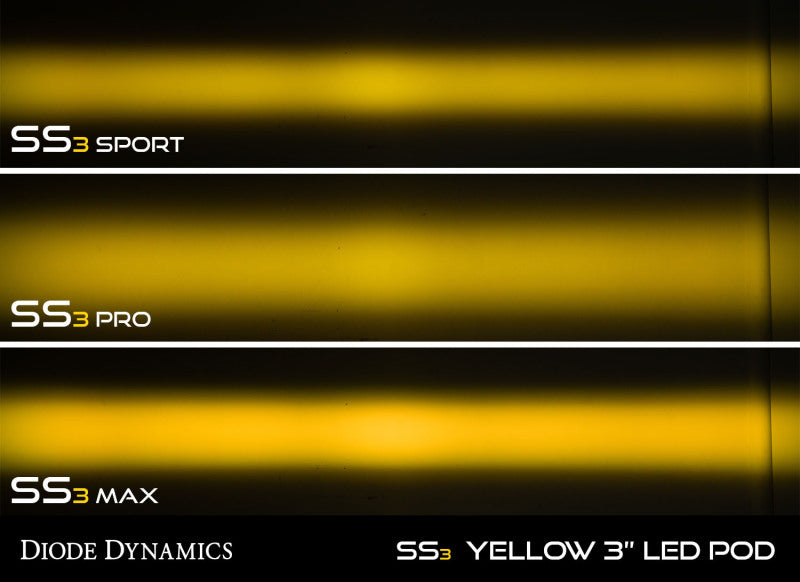

- Beam Pattern: Combo (Driving + Flood) - 65° x 25°
- Peak Intensity (Spot): 251,000 cd - shines over 1 kilometer
- LED Color: Yellow (3000K) | Backlight Color: Amber (fixed)
- Input Voltage: 9-30 VDC | Connector: Deutsch DT-style
- IP Rating: IP69K | Operating Temp: -40°F to 185°F
- Housing: Aluminum Casting | Lens: Polycarbonate | Gasket: Rubber

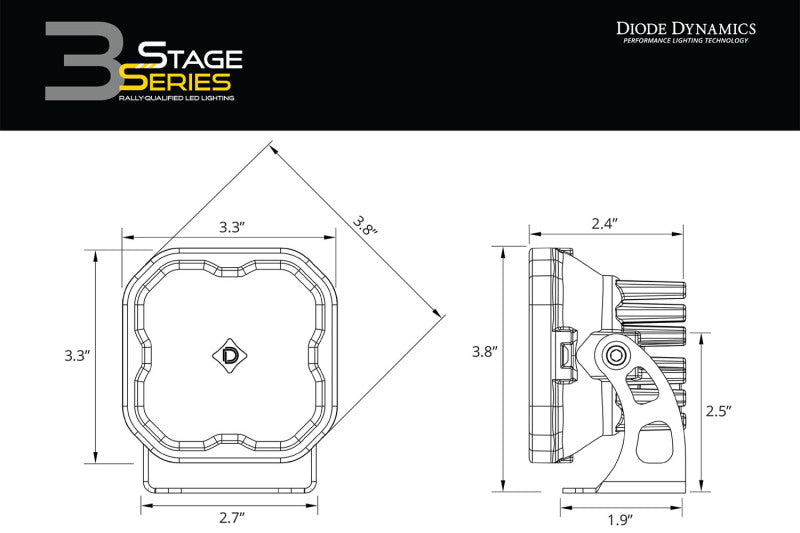

- Dimensions: 3.3" x 3.3" x 2.4" | Unit Weight: 0.75 lb
- Compliance: SAE J583 (Fog) | SAE J575 (Durability) | Warranty: 8 Years

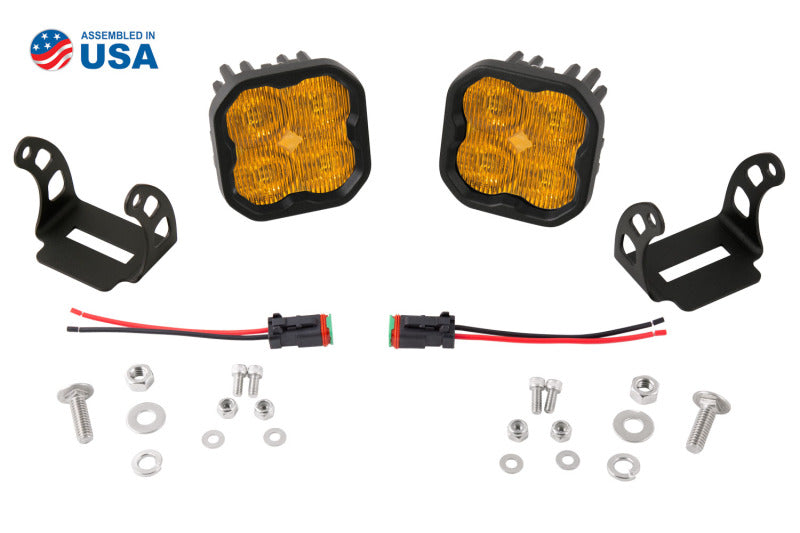

Included Components

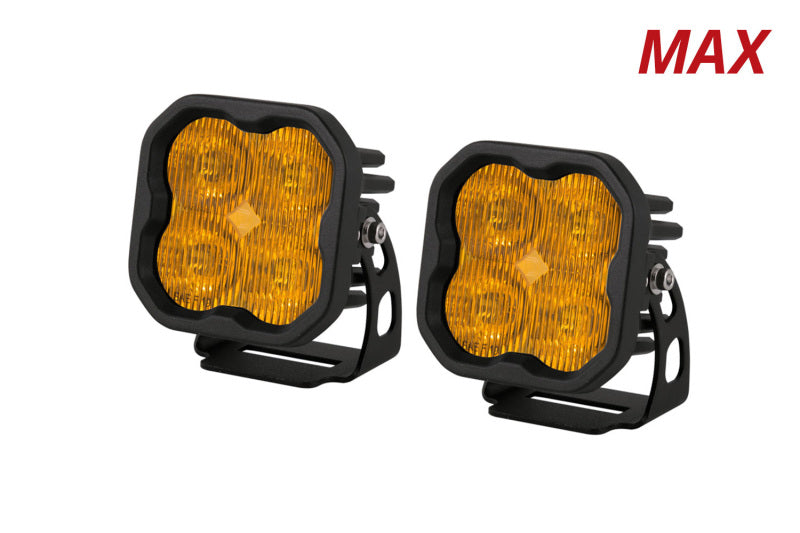

- 2x SS3 Max Yellow Combo LED Pods (3-inch, Standard Mount)
- 2x Deutsch-style wire pigtails (6-inch bare leads)
- 2x Mounting brackets with hardware
Product Description
The Diode Dynamics SS3 Max Yellow Combo LED Pod pair combines the most powerful emitters ever fitted into a 3-inch pod with the versatility of a combo beam, delivering Osram Boost HX technology at 38.5 watts for extreme output that surpasses every other 3-inch auxiliary light on the market. The combo beam blends a focused driving pattern with flood coverage in a 65° x 25° rectangular spread - giving drivers both forward reach and lateral illumination simultaneously - while the selective yellow 3000K output cuts through fog, rain, and dust with superior contrast compared to white light.
Rated IP69K and backed by an 8-year warranty (3-year replacement + 5-year limited), the DD6970P is built to perform in the most demanding off-road and adverse-weather conditions over the long term. The fixed amber backlight fully illuminates the TIR optic for a bold accent look when the main beam is off, and lenses are interchangeable for future beam pattern or color changes. The SAE J583-compliant Fog lens option makes these pods road-legal when properly aimed. Engineered and assembled in the USA, the SS3 Max Yellow Combo is the definitive 3-inch pod for builds where yellow output and absolute maximum performance are non-negotiable.
