Diode Dynamics DD8746 Stage Series Dual Color White Red Rock Light Kit 8-Pack M8

Vehicle Fitment

• Universal - Mounts on any vehicle, rack, trailer, or structure using center-mount screws or magnetic mounts. Common applications include under-vehicle rock lighting, wheel well lighting, truck bed/cargo area lighting, roof rack/bed rack scene lighting, side lighting, and trailer illumination.

Fitment Notes

• 8-Pack kit - includes 8 rock lights plus all wiring, mounting hardware, extension wires, toggle switch, and installation hardware needed for a complete 8-light installation.
• M8 waterproof barrel-style connector with 10-inch lead per light - provides secure, waterproof connection to the included plug-and-play harnesses. At 8mm in diameter, the connector is easy to route through tight spaces.
• Up to 16 rock lights can be wired together in a single system. The 8-pack kit includes 3M and 5M extension wires for routing lights around the vehicle.
• The dual-color 3-wire system uses separate circuits for white and red output - two aux switch channels are required to use both colors independently, or the included toggle switch can be used.
• Compatible with 9-16V vehicle electrical systems.
• Additional accessory mounts, extension wires, and mounting solutions are available separately from Diode Dynamics for custom configurations.

Features

• Dual-color output - each rock light switches instantly between high-power white illumination and high-power red illumination using a simple 3-wire system and the included toggle switch. White provides maximum output for rock crawling, campsite lighting, bed lighting, and scene lighting; red provides a low-glare option for preserving night vision, cab ambience, trail following, and situations where white light is too intense.
• 1,000 lumens peak output (white) from over 10 watts of true power draw per light - the single-color white output at full power is significantly more output than generic rock lights on the market, which typically run at only a few watts despite claiming higher ratings. The Diode Dynamics lights outperform generic alternatives even at low-power mode (~3 watts) on par with most competitors' maximum output.
• Optically-engineered lens - four individual optics are molded directly into the outer polycarbonate lens, providing excellent spread and even, consistent wide-angle coverage from each light. Standard cheap rock lights use plain clear covers with no optical design, resulting in poor coverage and harsh hotspots; the Diode Dynamics lens distributes light evenly across the illuminated area.
• 3-wire dual power system - the simple 3-wire setup allows selection between colors or power levels through the included toggle switch, with no complicated programming or controllers required. The two outer wires on the switch connect to aux switches for hands-free or automated control in custom builds.
• IP68 waterproof rated - sealed for full submersion resistance, engineered to handle mud, water crossings, and sustained trail use without moisture intrusion.
• Cast aluminum housing with signature Ico Bezel shape and pin-fin heatsink - manages thermal output from the high-power LED chips for sustained operation at full brightness and long-term reliability.
• UV-coated thick automotive-grade polycarbonate lens - engineered to withstand rock strikes, gravel, and trail debris without crazing or yellowing over time.
• Center-mount or magnet mount installation - multiple mounting methods available from the same housing for flexible placement options.
• Engineered and assembled in the USA by Diode Dynamics.
• Backed by Diode Dynamics' 8-year limited warranty.

Specifications

• Part Number: DD8746
• Brand: Diode Dynamics
• Series: Stage Series LED Rock Light
• Color Output: Dual-Color - White (6000K Cool White) + Red
• Quantity: 8-Pack (8 rock lights)
• Peak Output: 1,000 lumens (white, high-power mode)
• Power Draw: 10+ watts (high-power mode)
• Power Modes: Dual (white high-power / red high-power via 3-wire switching)
• Connector: M8 Waterproof Barrel-Style (10-inch lead per light)
• Lens: Automotive-Grade Polycarbonate with UV Coating (optically-engineered, 4 individual optics)
• Housing: Cast Aluminum with Pin-Fin Heatsink
• Waterproof Rating: IP68
• Mounting: Center-mount or magnet mount
• Max Daisy-Chain: Up to 16 lights per system
• Operating Voltage: 9-16V
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Warranty: 8 Years (Diode Dynamics Limited Warranty)

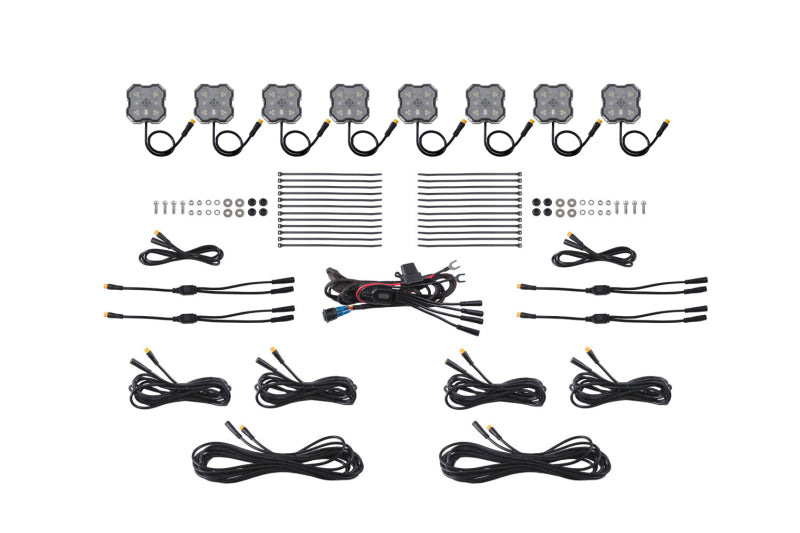

Included Components

• 8x Dual-Color Stage Series LED Rock Lights (White/Red, M8 connector, 10-inch lead each)
• Plug-and-play wiring harness
• 3M and 5M extension wires
• Toggle switch
• Center-mount and magnet mount hardware
• All necessary mounting hardware
• Installation guide

Product Description

The Diode Dynamics DD8746 is an 8-pack of Stage Series Dual-Color LED Rock Lights in White/Red configuration with M8 waterproof connectors - a complete 8-light kit with all wiring, mounting hardware, extension wires, and toggle switch included. Each light in the kit outputs up to 1,000 lumens of white at over 10 watts of true power draw, or switches to high-power red illumination, using a simple 3-wire system controlled by the included toggle switch. The dual-color capability covers the two most common use cases for trail and utility lighting: maximum-output white for rock crawling, campsite illumination, truck bed lighting, and scene lighting, and red for low-glare ambience, night vision preservation, and trail following.

The optically-engineered polycarbonate lens sets these apart from generic rock lights - four individual optics are molded directly into the lens surface, spreading light evenly across the illuminated area rather than producing the harsh hotspot and poor coverage of plain clear-cover alternatives. At over 10 watts of actual power draw, even the low-power mode (~3 watts) matches the maximum output of most competing products. The IP68-rated cast aluminum housing with pin-fin heatsink handles thermal management and weather resistance for sustained trail use. Up to 16 lights can be daisy-chained together for expanded installations. Engineered and assembled in the USA, backed by Diode Dynamics' 8-year limited warranty.
