Diode Dynamics DD8580 SS6 Max SAE LED Fog Light Kit Yellow for 2024-2026 Tacoma

Vehicle Fitment

• 2024-2026 Toyota Tacoma (All Trims, except Trail Hunter and models equipped with Rigid Dual Color Fog Lights)

Fitment Notes

• Does NOT fit the Trail Hunter trim or any Tacoma equipped with factory Rigid Dual Color Fog Lights due to bumper opening dimensions and electrical incompatibility
• Not compatible with 2025 TRD Pro models equipped with factory OEM Dual-Color fog lights
• Single-color Rigid fog light equipped models use slimmer bumper openings that prevent full installation of this kit

Features

• Max power level uses Osram HX Boost LEDs - the same premium emitters found in the SS3 and C2 2.0 Max pods - for the highest output in the SS6 lineup
• Patented TIR (Total Internal Reflection) optics capture and focus nearly all light output, eliminating glare and wasted light for a precise, useful beam
• SAE Fog FineLine optic delivers a 90°x10° wide beam pattern, fully road-legal for on-road fog light use
• True amber backlight illuminates the TIR optic housing for distinctive accent lighting - connectable to any 12V accessory source
• Selective yellow 3000K output provides enhanced contrast in fog, rain, snow, and low-visibility conditions
• CAD-designed, application-specific brackets utilize factory mounting points - no cutting, drilling, or modification required
• Copper PCB and aluminum heatsink thermal management allows LEDs to run at full rated power without throttling
• Tested to SAE standards across temperature (-40°F to 185°F), vibration, moisture intrusion, and corrosion - rated IP69K waterproof

Specifications

• SKU: DD8580
• Power Level: Max
• Output Color: Yellow, 3000K
• Raw Output: 7,920 lumens (per pair)
• Beam Pattern: SAE Fog / Wide, 90°x10°
• Power Consumption: 40.5W per bar
• Current Draw: 3.16A @ 12.8V per bar
• LED Emitter: Osram HX Boost
• Connector: Deutsch DT Input
• Materials: Copper PCB, Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink
• Intrusion Rating: IP69K Waterproof
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Unit Weight: 1.8 lbs each / 3.6 lbs pair
• Polarity: Polarity Specific
• Installation Time: 1-2 hours
• Modification Required: Basic wiring only
• Warranty: Limited Lifetime
• Made in USA with Global Materials

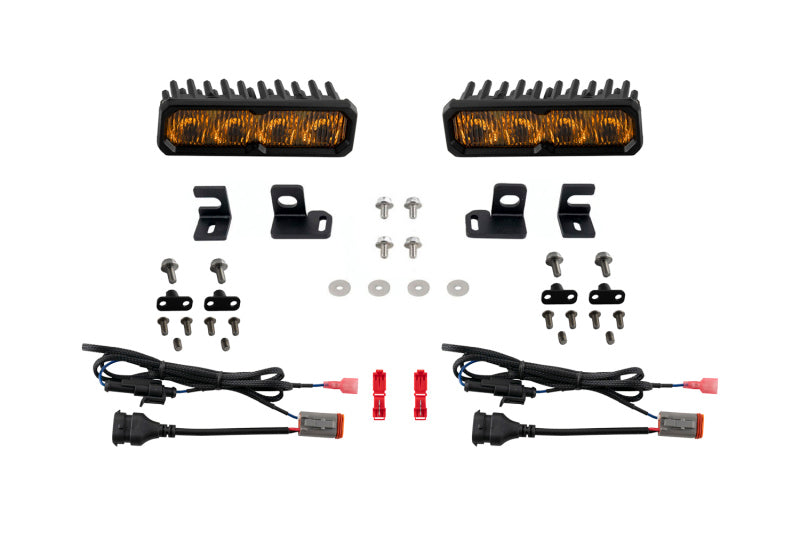

Included Components

• 2x SS6 Max Yellow SAE Fog/Wide LED Light Bars (DD8159P, sold as pair)
• 1x Tacoma 2024 SS6 Fog Bracket Kit (DD8842)
• 1x H11 DT 4-Pin Backlight Tap Wire Kit, pair (DD4106P)

Product Description

The Diode Dynamics DD8580 is the SS6 Max LED Fog Light Kit in Selective Yellow (3000K), purpose-built as a direct-fit upgrade for the 2024-2026 Toyota Tacoma. Designed and assembled in the USA, this kit replaces the factory fog light housings with a pair of 6-inch Stage Series LED light bars mounted on CAD-designed, vehicle-specific brackets that bolt directly to factory locations - no cutting or drilling required. The Max power level uses Osram HX Boost LED emitters to deliver a combined 7,920 lumens through Diode Dynamics' patented TIR optics, producing a 90°x10° SAE Fog-compliant wide beam pattern that is fully road legal for on-road use.

The 3000K selective yellow output is the standout choice for drivers frequently encountering fog, rain, or dust, as the lower color temperature reduces glare scatter and improves road surface contrast compared to white light. An integrated amber backlight illuminates the light bar housing for a unique accent effect that can be wired to a sidemarker or any 12V source using the included tap wire kit. Extensive SAE-standard testing covers vibration, thermal cycling from -40°F to 185°F, and IP69K moisture intrusion resistance - the same durability benchmarks applied to OEM components.
