Diode Dynamics DD8725 Kuat IBEX A2 Bed Rack Kit for 2020-2025 Jeep Gladiator

Vehicle Fitment

• 2020-2025 Jeep Gladiator (all trims)

Fitment Notes

• A2 configuration is application-specific to the Jeep Gladiator bed; not interchangeable with A1/C1 mid-size truck kits
• Integrates with factory bed rails for a secure, rattle-free mount

Features

• Lightweight, durable aluminum modular bed rack construction
• Integrated SS10 3-in-1 Chase Light mounted in a custom-designed enclosure
• Four Stage Series Rock Lights with swappable white and amber lenses
• Full-height or mid-height configuration right out of the box
• Adjustable telescopic crossbars with multiple T-channels for accessories
• Magnetic programming tool for chase light function setup
• SAE J1957-compliant Center High Mounted Stop Lamp (CHMSL) function
• Backed by Kuat's No Worries Limited Warranty on the rack hardware

Specifications

• Static Weight Capacity: 1,200 lbs
• Dynamic Weight Capacity: 300 lbs
• Rack Shipping Dimensions: 69.3" L x 20.3" W x 9.2" H
• Rack Weight: 74 lbs
• Color Temperature: 6000K
• Rock Light Power: 4W each
• Intensity: White 4.5 cd, Amber 4.5 cd, Red 2.0 cd
• Compliance: SAE J1957 CHMSL

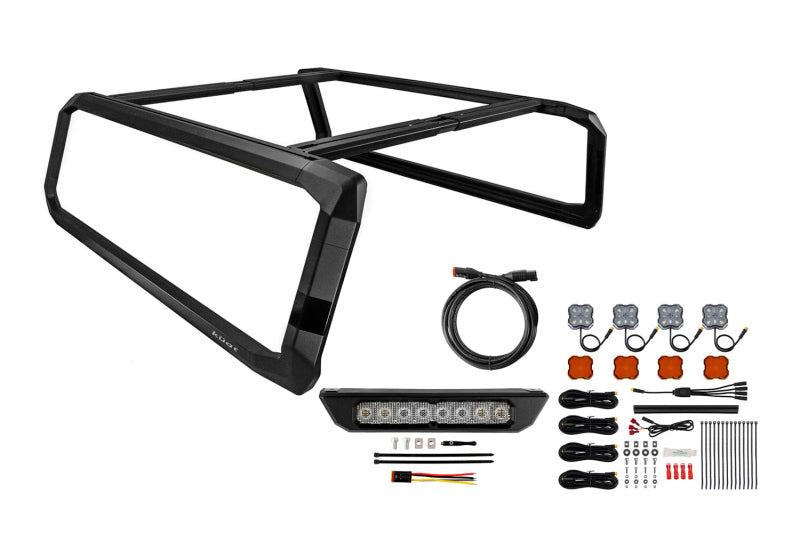

Included Components

• 1x Kuat IBEX Bed Rack (A2, Jeep Gladiator)
• 1x SS10 Chase Lightbar
• 1x Magnetic Programming Tool
• 4x Stage Series Rock Lights
• 4x White Diffused Rock Light Lenses
• 4x Amber Rock Light Lenses
• 1x DT 4-Pin 3M Extension Wire
• 4x 5M M8 Extension Wires
• 1x M8 4-Way Splitter
• 1x DT 4-Pin Pigtail
• 1x T-Tap Harness
• 4x T-Taps
• 16x Zip Ties
• 1x Wire Retention Strip
• 1x Mounting Hardware Set
• 1x Installation Guide

Product Description

The Diode Dynamics DD8725 Kuat IBEX A2 Bed Rack Kit brings a purpose-built aluminum rack platform to the 2020-2025 Jeep Gladiator, with a static weight capacity of 1,200 lbs and dynamic capacity of 300 lbs. The rack integrates with the factory bed rails for a secure, rattle-free fit, and its modular design supports full-height or mid-height configurations along with adjustable telescopic crossbars for mounting gear, a rooftop tent, or overland accessories.

Built into the rack is an integrated SS10 Chase Lightbar handling brake, reverse, and chase light functions, along with four Stage Series Rock Lights featuring swappable white and amber lenses. A magnetic programming tool lets you configure the chase light functions, and the kit includes the wiring, splitters, and hardware needed for a clean installation. The brake light function meets the SAE J1957 CHMSL standard.
