Diode Dynamics DD8756 Stage Series Dual Color White Amber Rock Light Kit 8-Pack

Vehicle Fitment

• Universal - Mounts on any vehicle, rack, trailer, or structure using center-mount screws or magnetic mounts. Common applications include under-vehicle rock lighting, wheel well lighting, truck bed/cargo area lighting, roof rack/bed rack scene lighting, side lighting, and trailer illumination.

Fitment Notes

• 8-Pack kit - includes 8 rock lights plus all wiring, mounting hardware, extension wires, toggle switch, and installation hardware needed for a complete 8-light installation.
• M8 waterproof barrel-style connector with 10-inch lead per light - provides secure, waterproof connection to the included plug-and-play harnesses. At 8mm in diameter, the connector is easy to route through tight spaces and under body panels.
• Up to 16 rock lights can be wired together in a single system. The 8-pack kit includes 3M and 5M extension wires for routing lights around the vehicle.
• The dual-color 3-wire system uses separate circuits for white and amber output - two aux switch channels are required to use both colors independently, or the included toggle switch can be used.
• Compatible with 9-16V vehicle electrical systems.
• Additional accessory mounts, extension wires, and mounting solutions are available separately from Diode Dynamics for custom configurations.

Features

• Dual-color output - each rock light switches instantly between high-power white illumination and high-power amber illumination using a simple 3-wire system and the included toggle switch. White provides maximum output for rock crawling, campsite lighting, bed lighting, and scene lighting; amber provides a warmer, lower-glare option that reduces eye strain during extended use, is effective in dust and fog conditions, and creates a distinct trail and campsite ambience.
• 1,000 lumens peak output (white) from over 10 watts of true power draw per light - significantly more output than generic rock lights on the market, which typically run at only a few watts despite higher wattage claims. The low-power mode (~3 watts) alone matches the maximum output of most competing products.
• Optically-engineered lens - four individual optics are molded directly into the outer polycarbonate lens, providing excellent spread and even, consistent wide-angle coverage from each light. Generic rock lights use plain clear covers with no optical design, resulting in harsh hotspots and uneven coverage; the Diode Dynamics lens distributes light evenly across the illuminated area in both white and amber.
• 3-wire dual-color system - the simple 3-wire setup allows switching between white and amber through the included toggle switch, with no complicated controllers or programming. The two outer wires connect to separate aux switch channels for hands-free or automated control in custom builds.
• Amber output is well-suited for dust, fog, and overland applications - amber/yellow wavelengths penetrate airborne particles better than white light and produce less backscatter, making it a preferred color for scene lighting in dusty environments and adverse weather.
• IP68 waterproof rated - sealed for full submersion resistance, engineered for mud, water crossings, and sustained trail and overland use without moisture intrusion.
• Cast aluminum housing with signature Ico Bezel shape and pin-fin heatsink - manages thermal output from the high-power LED chips for sustained operation at full brightness and long-term reliability.
• UV-coated thick automotive-grade polycarbonate lens - engineered to withstand rock strikes, gravel, and trail debris without crazing or yellowing over time.
• Center-mount or magnet mount installation - multiple mounting methods available from the same housing for flexible placement on steel surfaces, frame rails, bumpers, and rock sliders.
• Engineered and assembled in the USA by Diode Dynamics.
• Backed by Diode Dynamics' 8-year limited warranty.

Specifications

• Part Number: DD8756
• Brand: Diode Dynamics
• Series: Stage Series LED Rock Light
• Color Output: Dual-Color - White (6000K Cool White) + Amber
• Quantity: 8-Pack (8 rock lights)
• Peak Output: 1,000 lumens (white, high-power mode)
• Power Draw: 10+ watts (high-power mode)
• Power Modes: Dual (white high-power / amber high-power via 3-wire switching)
• Connector: M8 Waterproof Barrel-Style (10-inch lead per light)
• Lens: Automotive-Grade Polycarbonate with UV Coating (optically-engineered, 4 individual optics)
• Housing: Cast Aluminum with Pin-Fin Heatsink
• Waterproof Rating: IP68
• Mounting: Center-mount or magnet mount
• Max Daisy-Chain: Up to 16 lights per system
• Operating Voltage: 9-16V
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Warranty: 8 Years (Diode Dynamics Limited Warranty)

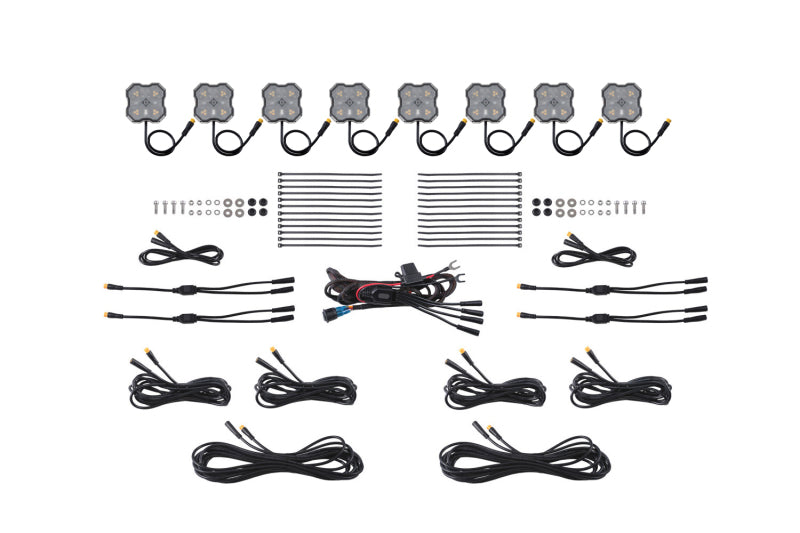

Included Components

• 8x Dual-Color Stage Series LED Rock Lights (White/Amber, M8 connector, 10-inch lead each)
• Plug-and-play wiring harness
• 3M and 5M extension wires
• Toggle switch
• Center-mount and magnet mount hardware
• All necessary mounting hardware
• Installation guide

Product Description

The Diode Dynamics DD8756 is an 8-pack of Stage Series Dual-Color LED Rock Lights in White/Amber configuration with M8 waterproof connectors - a complete 8-light kit with all wiring, mounting hardware, extension wires, and toggle switch included. Each light outputs up to 1,000 lumens of white at over 10 watts of true power draw, or switches instantly to high-power amber illumination via the simple 3-wire system and included toggle switch. The white/amber combination is particularly well-suited for overland builds, expedition vehicles, and anyone who uses auxiliary lighting frequently in camp settings - white for maximum output when needed, and amber for sustained scene lighting that is easier on the eyes and better at penetrating dust and light fog.

The optically-engineered polycarbonate lens sets these apart from generic alternatives - four individual optics are molded directly into the lens surface, spreading both white and amber light evenly across the illuminated area rather than producing the harsh central hotspot of plain clear-cover designs. At over 10 watts of actual power draw, the high-power mode delivers genuine high-output illumination; even the low-power mode (~3 watts) matches the maximum output of most competing rock lights. The IP68-rated cast aluminum housing with pin-fin heatsink handles thermal management and weather resistance for extended use. Up to 16 lights can be daisy-chained in one system. Engineered and assembled in the USA, backed by Diode Dynamics' 8-year limited warranty.
