DeatschWerks 9-439-1000 DW430 430LPH Universal Compact Fuel Pump w/Clips Gas/E85

Vehicle Fitment

• Universal fitment for any vehicle with compatible in-tank fuel pump module

Fitment Notes

• Universal application -- fits 39mm pump bore housings
• Confirm fuel pump module dimensions before ordering
• For vehicle-specific drop-in fitment, use 9-439-xxxx application-specific SKU
• Race-use only in California, New York, Maine
• Mounting clips included for secure installation
• Universal install kit includes wiring upgrade hardware
• Compatible with surge tank and lift pump configurations
• Recommended for cars over 10 years old or making 400+ WHP

Features

• 430 LPH flow rate at 40 PSI
• Supports 800+ horsepower builds
• Compact 123mm x 39mm body
• Brushless-style turbine impeller
• Quiet operation
• E85 ethanol compatible
• Methanol and flex-fuel compatible
• Carbon matrix commutators
• Encapsulated armature
• Digitally balanced armature
• Pulse-Width Modulation (PWM) compatible
• Eliminated turbulence engineering
• Reduced internal restrictions
• Optimum impeller blade count and angle
• Extended bearing life
• Includes mounting clips
• Includes universal install kit
• 36-month no-fault warranty
• Made in USA

Specifications

• Series: DW430C
• Type: In-tank compact fuel pump
• Flow rate: 430 lph (113 gph)
• Test pressure: 40 PSI (2.7 bar)
• Horsepower support: 800+ WHP (gasoline) / 600+ WHP (E85)
• Body diameter: 39mm
• Body length: 123mm
• Inlet: Bottom feed
• Outlet: Top, OEM connector
• Voltage: 12V
• Fuel compatibility: Gasoline, E85, methanol, race fuels
• Commutator material: Carbon matrix
• PWM compatible: Yes
• Warranty: 36-month no-fault

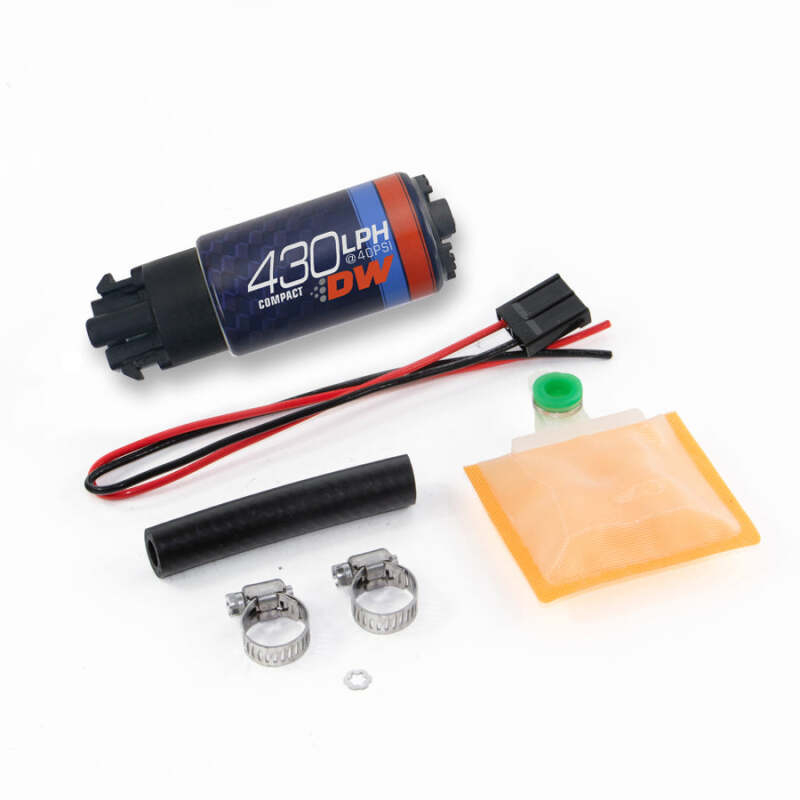

Included Components

• 1x DW430c 430lph compact fuel pump
• 1x Mounting clip set
• 1x Universal install kit (12 ga power cable, 12 ga ground cable, 30A in-line fuse, 40A relay, relay socket with pigtails)
• 1x Installation instructions

Product Description

The DeatschWerks 9-439-1000 is the universal-fit DW430c 430 LPH compact in-tank fuel pump with clips and universal install kit, engineered as a drop-in upgrade for fuel pump modules with a 39mm pump bore. The DW430c delivers 430 liters per hour at 40 PSI -- enough fuel volume to support 800+ horsepower on gasoline or 600+ horsepower on E85 -- in a 123mm x 39mm compact body that fits where standard-size fuel pumps don't. The advanced turbine impeller design provides quiet operation while carbon matrix commutators and an encapsulated armature deliver long-term durability with ethanol, methanol, and race fuels.

Fluid dynamics engineered to eliminate turbulence and reduce internal restrictions allow the DW430c to outflow competitors like the Walbro 255 and AEM 340 by a wide margin, with PWM compatibility for stable performance on modern ECU-controlled fuel systems. The universal install kit includes 12-gauge SLX-spec power and ground cables, a 30A in-line fuse, a 40A relay, and a relay socket with pigtails to wire the pump directly to the battery -- especially important for vehicles over 10 years old or builds making 400+ WHP where original wiring may limit voltage. Designed and manufactured in Oklahoma City, USA, and backed by DeatschWerks' industry-leading 36-month no-fault warranty.
