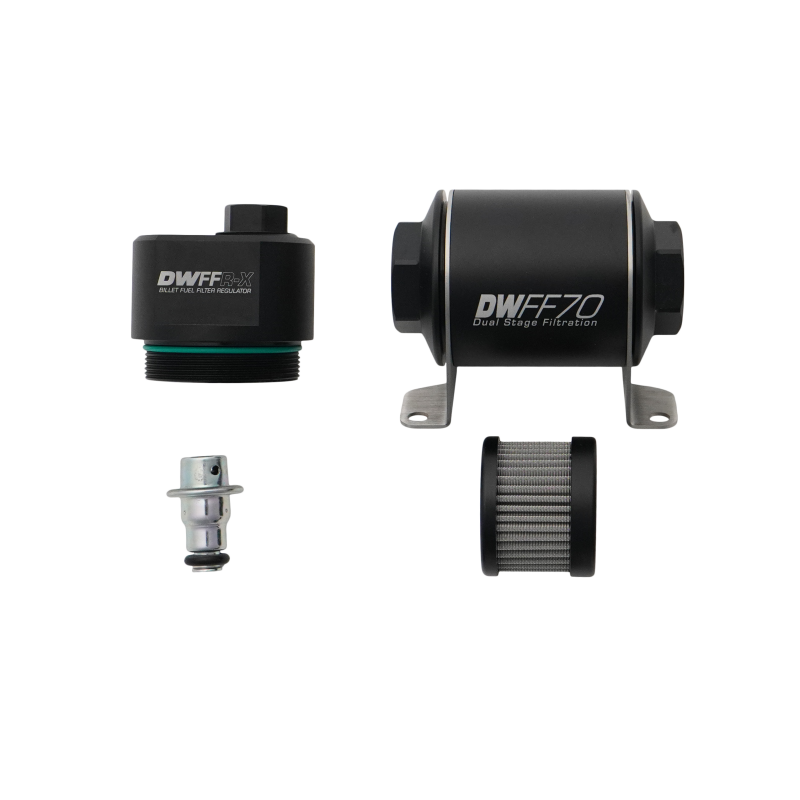

DeatschWerks 8-FFR-070-010K DWFFR-X 70mm Billet Fuel Filter Regulator 10 Micron

Vehicle Fitment

• Universal Fitment - Compatible with any EFI performance fuel system

Fitment Notes

• Universal part - not vehicle-specific; fittings sold separately (available in -6AN, -8AN, -10AN, 3/8 in, and 5/16 in barb configurations)
• This listing (8-FFR-070-010K) is the filter/regulator body only - no fittings included; select the appropriate fitting-included variant for a complete kit
• Compatible with gasoline, E85, and ethanol blends

Features

• Dual-stage filtration - combines 304 stainless steel mechanical mesh with a 35mm neodymium magnetic ring to capture both particulate and ferrous debris
• 10-micron filtration rating for fine fuel system protection
• Flow rate exceeds 1000 LPH - no restriction on high-demand builds
• Billet T6061 aluminum housing - lightweight, corrosion-resistant, and anodized for E85 compatibility
• Compact 70mm body fits in tight engine bay or chassis locations
• Serviceable design - filter element can be replaced without replacing the housing
• Functions as both a fuel filter and a fuel pressure regulator in one unit
• Backed by a Limited Lifetime Warranty

Specifications

• Product Name: DWFFR-X Billet Fuel Filter Regulator
• Micron Rating: 10 Micron
• Flow Rate: 1000+ LPH
• Housing Length: 70mm
• Mechanical Filtration: 304 Stainless Steel Mesh
• Magnetic Filtration: 35mm Neodymium Ring
• External Material: T6061 Aluminum
• Fitting Included: No (sold separately)
• Fitment: Universal

Included Components

• 1x DeatschWerks DWFFR-X 70mm Billet Fuel Filter Regulator Body (10 Micron)

Product Description

The DeatschWerks 8-FFR-070-010K is the DWFFR-X billet fuel filter regulator - a compact, dual-function unit that combines fine 10-micron mechanical filtration with a 35mm neodymium magnetic ring to protect injectors and fuel system components from both particulate and ferrous contamination. Built from anodized T6061 aluminum, the 70mm housing is rated for over 1000 LPH of flow, making it a capable choice for high-horsepower EFI builds running gasoline or E85.

The serviceable element design allows filter replacement without swapping out the housing, keeping long-term maintenance costs low. Fittings are sold separately in a range of AN and barb configurations, allowing the builder to match the unit to their specific fuel line setup. This listing is for the regulator/filter body only - select a fitting-specific kit variant for a complete, ready-to-install package.
