DeatschWerks 16U-00-0090-8 950cc 90 lb/hr Injectors Set/8 LS3 LS7 L99 LSA

Vehicle Fitment

• 2010-2015 Chevrolet Camaro SS - LS3 (6.2L) and L99 (6.2L) Engines
• 2008-2013 Chevrolet Corvette - LS3 (6.2L) Engine
• 2008-2013 Chevrolet Corvette Z06 - LS7 (7.0L) Engine
• 2009-2014 Chevrolet Corvette ZR-1 - LS9 (6.2L Supercharged) Engine
• 2008-2010 Pontiac G8 / G8 GXP - LS3 (6.2L) Engine
• 2009-2015 Cadillac CTS-V - LSA (6.2L Supercharged) Engine

Fitment Notes

• Direct drop-in fitment for all listed LS3/LS7/L99/LS9/LSA applications - designed to fit the OEM fuel rail and manifold without modification
• USCAR/EV6 connector - plugs directly into the factory LS injector wiring harness with no adapter required
• High impedance (12.4 ohm) - compatible with factory ECU without requiring a resistor box or driver modification
• O-rings included - no additional sealing hardware required for installation
• Wiring harness adapter not included - factory connectors are directly compatible
• Not legal for sale or use in California on emissions-controlled vehicles (not CARB compliant)
• Professional ECU tuning is required after installation to account for the increased flow rate

Features

• 950 cc/min (90 lb/hr) flow rate - substantial headroom over factory LS injectors for supporting forced induction and naturally aspirated high-power builds
• Pico body style with USCAR/EV6 connector for direct OEM-style fitment into all listed LS applications
• Multi-point dynamic flow matching system - each set balanced to within ±2% across low, transitional, and linear pulse width ranges for consistent cylinder-to-cylinder fueling
• High impedance design eliminates the need for a resistor ballast, simplifying installation on stock ECU systems
• Application-specific fitment reduces installation complexity and tuning time vs. universal injectors
• Flow report included - documents matched injector data for tuner reference

Specifications

• Flow Rate: 950 cc/min (90 lb/hr)
• Injector Body Style: Pico
• Connector: USCAR / EV6
• Impedance: 12.4 ohm (High Impedance)
• Quantity: Set of 8
• Flow Matching Tolerance: ±2%
• Fuel Compatibility: Gasoline
• O-Rings: Included
• Wiring Harness Adapter: Not Included
• Applications: LS3 / LS7 / L99 / LS9 / LSA (see fitment list above)
• Warranty: 3 Years

Included Components

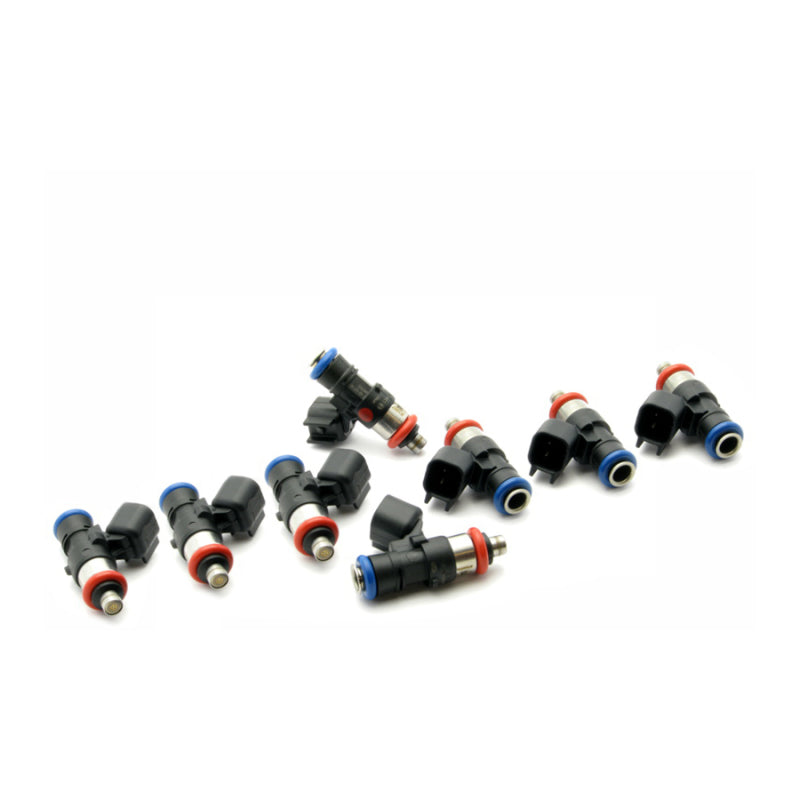

• 8x DeatschWerks 950cc/90 lb/hr Pico Body Fuel Injectors
• O-ring sealing hardware
• Flow report documenting matched injector data

Product Description

The DeatschWerks 16U-00-0090-8 is a matched set of eight 950cc (90 lb/hr) fuel injectors engineered as a direct drop-in upgrade for LS3, LS7, L99, LS9, and LSA-powered GM vehicles. Using the Pico body style with a USCAR/EV6 connector, these injectors slot directly into the factory fuel rail and plug into the OEM wiring harness with no adapter hardware needed. At 12.4 ohms, the high-impedance design is fully compatible with factory ECU systems without requiring any driver modifications or resistor ballasts - a significant advantage for builds that want a clean, reliable fuel system upgrade without added complexity.

Every set is processed through DeatschWerks' multi-point dynamic flow testing system, which replicates the real-world frequencies and pulse widths an injector experiences in a high-performance engine. The result is a set balanced to within ±2% flow variation across the entire operating range - from idle to wide-open throttle - for consistent, predictable cylinder fueling and a smooth idle after tuning. A flow report documenting each injector's matched data is included for tuner reference. Backed by DeatschWerks' 3-year warranty, the 16U-00-0090-8 is the benchmark LS injector upgrade for builds that have maxed out the factory fuel system.
