DeatschWerks 9-651-1010 DW65C 265LPH Fuel Pump Kit for 13-21 BRZ/FR-S/86/WRX

Vehicle Fitment

• 2013-2016 Scion FR-S (FA20, all trims)
• 2013-2020 Subaru BRZ (FA20, all trims)
• 2017-2020 Toyota 86 (FA20, all trims)
• 2015-2021 Subaru WRX (FA20DIT 2.0L Turbo, VA platform)

Fitment Notes

• 1st generation BRZ/FR-S/86 (ZN6/ZC6) and VA-platform WRX only
• Does NOT fit WRX STI (different fuel pump module)
• Compact 65mm form factor -- fits where standard-size pumps (DW100/DW200/DW300) cannot
• Direct plug-and-play with vehicle-specific install kit included
• Compatible with pulse width modulated (PWM) fuel pump controllers
• Ethanol compatible (E85/gasoline)
• Sold individually

Features

• DW65C series -- industry's first compact fitment high-flow fuel pump
• 265 LPH flow rate at 40 PSI
• Quiet, reliable turbine impeller
• Carbon commutator and fully encapsulated armature for ethanol compatibility
• High-torque motor maintains flow at higher pressures

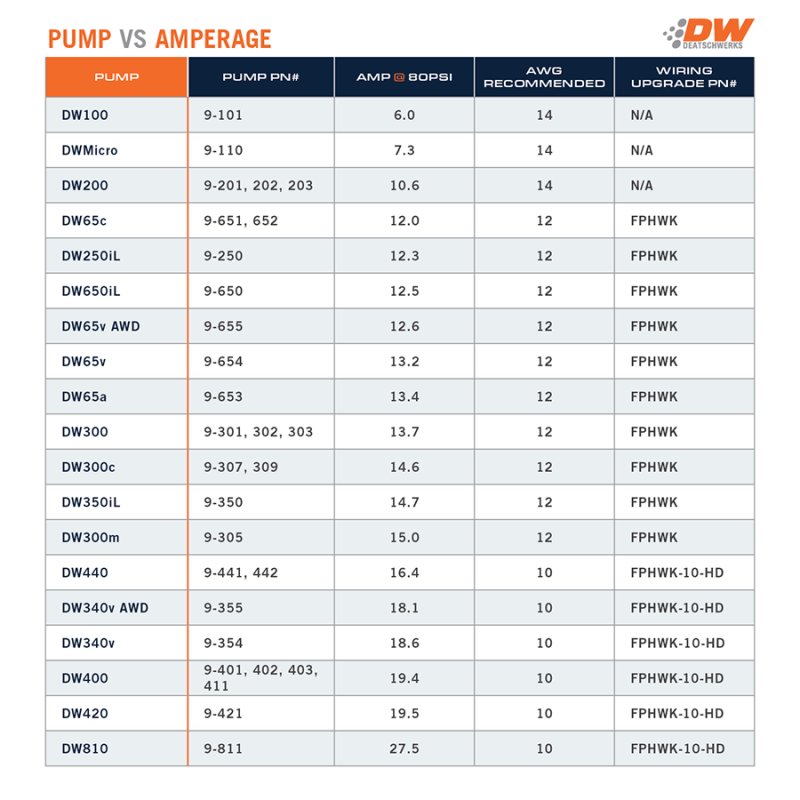

• Low amperage draw -- reduces pump temps, maximizes life, minimizes stress on OE wiring
• Designed to support DeatschWerks BRZ/FR-S 450cc, 700cc, and 900cc injectors
• Supports up to approximately 500 HP (combined with DW injectors)

Specifications

• Series: DeatschWerks DW65C
• Type: In-tank compact fuel pump
• Flow Rate: 265 LPH at 40 PSI
• Impeller: Turbine
• Armature: Fully encapsulated (ethanol safe)
• Commutator: Carbon
• Fuel Compatibility: Gasoline and ethanol (E85)
• PWM Compatible: Yes
• Warranty: 3-year no-fault

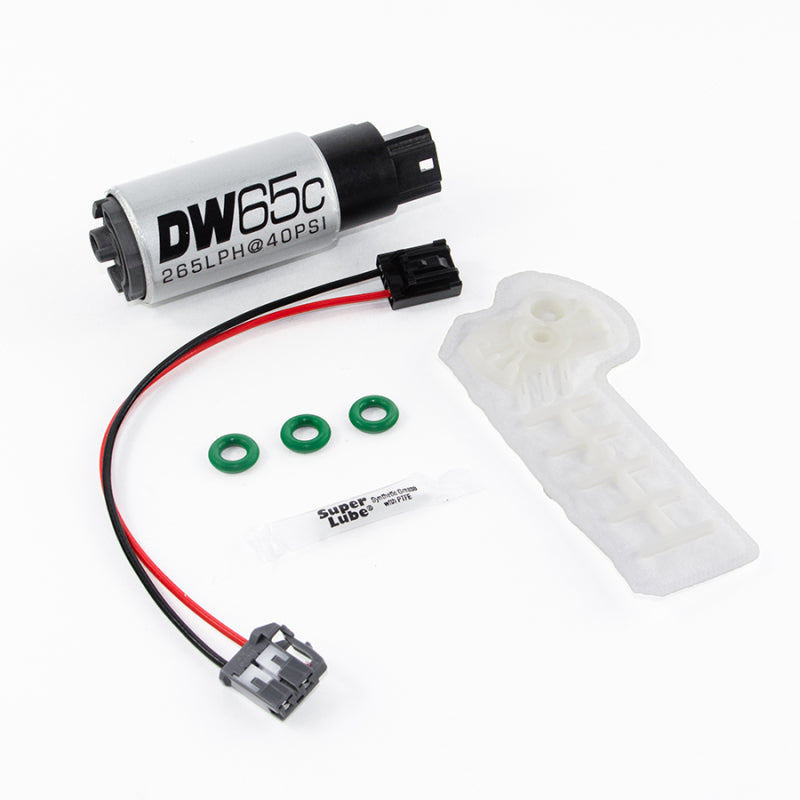

Included Components

• 1x DeatschWerks DW65C compact in-tank fuel pump (265 LPH)
• Vehicle-specific install kit (1010) with all necessary fittings, wiring, and hardware

Product Description

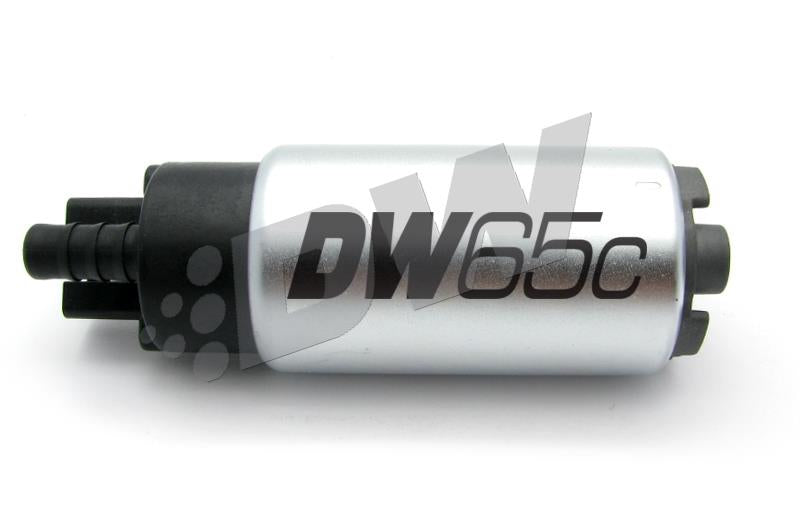

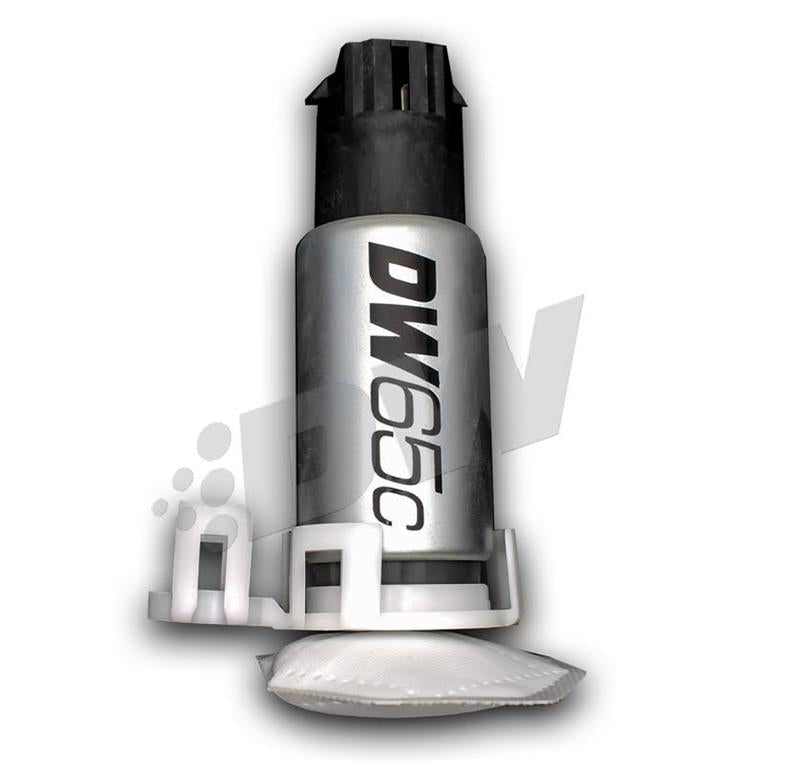

The DeatschWerks 9-651-1010 is a DW65C series 265 LPH compact in-tank fuel pump with vehicle-specific install kit for the 2013-2020 Subaru BRZ, 2013-2016 Scion FR-S, 2017-2020 Toyota 86, and 2015-2021 Subaru WRX (VA platform). The DW65C was the industry's first compact fitment high-flow fuel pump -- its 65mm form factor fits into modern fuel pump modules where standard-sized pumps cannot, making it the only aftermarket pump that allows proper fitment in the 1st gen BRZ/FR-S/86 fuel tank. Flowing 265 LPH at 40 PSI, this pump is designed to support DeatschWerks BRZ/FR-S 450cc, 700cc, and 900cc injectors for builds up to approximately 500 HP.

The quiet turbine impeller is compatible with pulse width modulated fuel pump controllers, and the carbon commutator with fully encapsulated armature ensures full ethanol compatibility for E85 and flex fuel builds. The high-torque motor maintains consistent flow at elevated pressures while the low amperage draw minimizes pump operating temperatures and reduces stress on OE wiring. The included vehicle-specific install kit provides all necessary fittings and hardware for a direct plug-and-play installation. Does not fit the 2nd generation 2022+ BRZ, GR86, or VB WRX -- those platforms require the DeatschWerks DW300C (9-307-1069) with a separate install kit. Backed by DeatschWerks' 3-year no-fault warranty.
