DeatschWerks 9-437-7071 X2 Dual DW430 860lph Pump Module 2006-2013 BMW E9X/E8X

Vehicle Fitment

• 2011 BMW 1 Series M (E82, S65 4.0L V8, RWD)
• 2008-2013 BMW 135i (E82 Coupe / E88 Convertible, N54/N55 3.0L Turbo I6, RWD)
• 2013 BMW 135is (E82 Coupe, N55 3.0L Turbo I6, RWD)
• 2006 BMW 325i (E90 Sedan, N52 3.0L I6, RWD)
• 2007-2013 BMW 328i (E90 Sedan / E92 Coupe / E93 Convertible, N52/N51 3.0L I6, RWD)
• 2009-2013 BMW 328i xDrive (E90 Sedan / E91 Wagon, N52 3.0L I6, AWD)
• 2006 BMW 330i (E90 Sedan, N52 3.0L I6, RWD)
• 2006 BMW 330xi (E90 Sedan, N52 3.0L I6, AWD)
• 2007-2013 BMW 335i (E90 Sedan / E92 Coupe / E93 Convertible, N54/N55 3.0L Turbo I6, RWD)
• 2009-2011 BMW 335i xDrive (E90 Sedan / E91 Wagon, N54/N55 3.0L Turbo I6, AWD)

Fitment Notes

• This kit includes the X2 Dual Pump Module housing pre-fitted with two DW430 430lph compact fuel pumps - a complete, ready-to-install assembly.
• Requires a regulated return-style fuel system. The OEM returnless system must be converted during or prior to installation.
• Fits both RWD and xDrive (AWD) E9X/E8X variants where listed above.
• A 10-gauge hardwire kit (DeatschWerks PN# FPHWK-10-HD) is strongly recommended to maximize voltage at the pumps for full performance output.

Features

• Dual DW430 pump configuration delivers a combined 860lph of fuel flow - dramatically exceeding the OEM single-pump output and supporting high-horsepower forced induction builds.
• Direct drop-in replacement for the OEM BMW E9X/E8X fuel pump module - fits the factory tank without cutting, drilling, or fabrication.
• Retains the OEM fuel level sender and wiring harness connections for seamless integration with the factory instrument cluster and fuel management system.
• DW430 compact pump design allows dual-pump fitment within the OEM module envelope - no external surge tank required for most high-output applications.
• DW430 pumps feature carbon commutators and encapsulated armatures for full E85 and ethanol blend compatibility.
• Turbine impeller design provides quiet, efficient low-NVH operation compatible with pulse width modulated pump drivers.
• Scalable performance - module housing also accepts DW810 Brushless pumps (see 9-811-7071) for even higher flow demands.
• Backed by DeatschWerks' 3-year no-fault warranty covering all pumps and module hardware.

Specifications

• Part Number: 9-437-7071
• Series: X2 Pump Modules
• Pump Configuration: Dual DW430 Compact (2x Brushed In-Tank)
• Per-Pump Flow Rate: 430lph
• Combined Flow Rate: 860lph
• Compatible Platforms: BMW E9X (E90/E91/E92/E93), BMW E8X (E82/E88)
• Fuel System Type: Regulated Return-Style (conversion from OEM returnless required)
• Fuel Compatibility: Gasoline, Race Fuel, E85, Ethanol Blends
• Drivetrain: RWD and xDrive AWD (where applicable per fitment list)
• Voltage: 12V (10-gauge hardwire kit strongly recommended)
• Warranty: 3-Year No-Fault

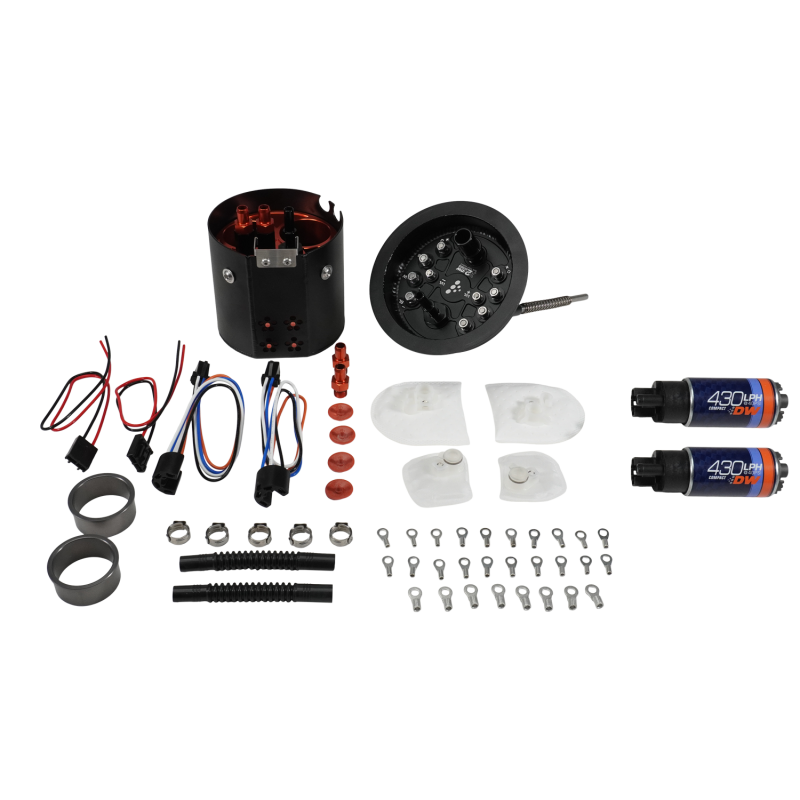

Included Components

• 1x X2 Dual Pump Module Housing (top-hat, center section, lower bucket)
• 2x DW430 430lph Compact In-Tank Fuel Pumps (pre-installed)
• 1x Installation Hardware Kit

Product Description

The DeatschWerks 9-437-7071 is the X2 Dual Pump Module for 2006-2013 BMW E9X and E8X chassis, pre-fitted with two DW430 compact 430lph fuel pumps for a combined output of 860lph. Designed to replace the factory OEM fuel pump module with a direct drop-in fit, this kit brings the dual-pump capability of the X2 module platform to E9X/E8X builds that have exceeded what a single in-tank pump can supply. The assembly fits the factory fuel tank without modification and retains the OEM wiring harness and fuel level sender, keeping the factory instrument cluster and fuel management system fully functional.

The DW430 compact pump format was chosen specifically to allow dual-pump fitment within the OEM module envelope - eliminating the need for an external surge tank in most high-output builds. Both pumps feature carbon commutators and fully encapsulated armatures for E85 and ethanol compatibility, making the 9-437-7071 a complete fuel delivery solution for boosted N54, N55, and S65-powered BMWs on pump gas or ethanol. For builders who want even more flow headroom, the same X2 module housing is also available paired with DW810 Brushless pumps (9-811-7071).
