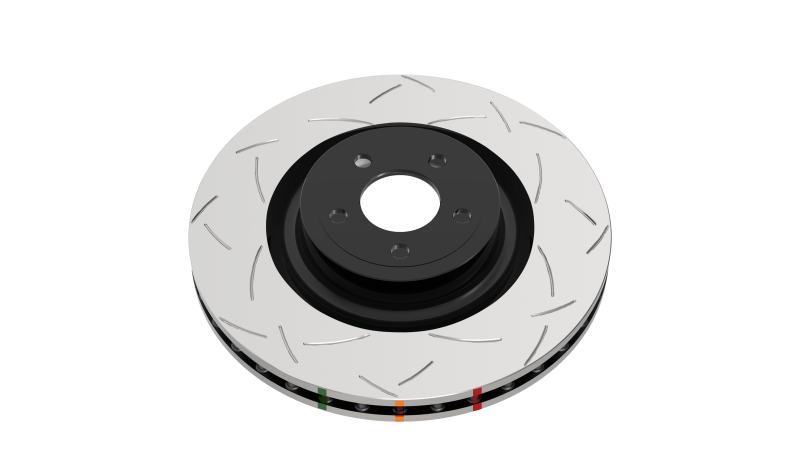

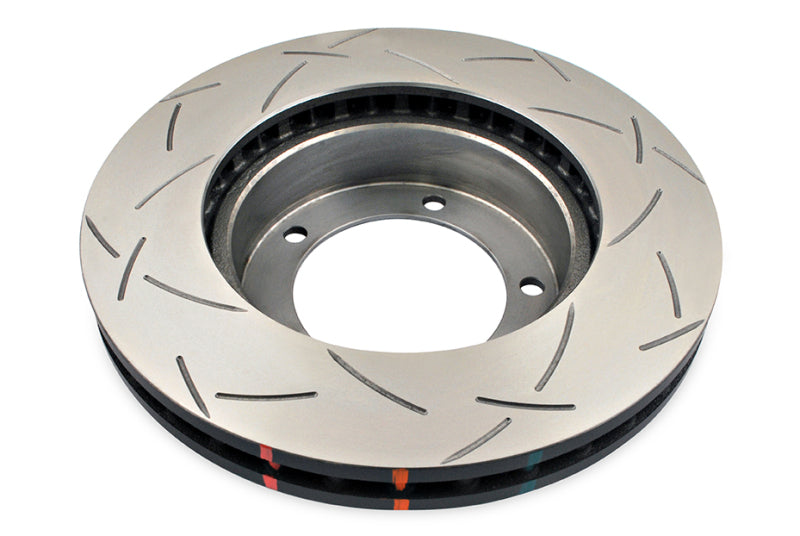

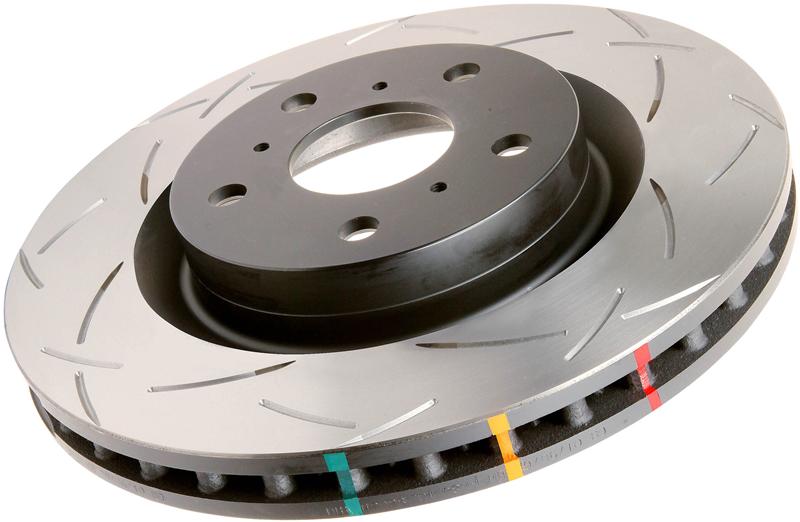

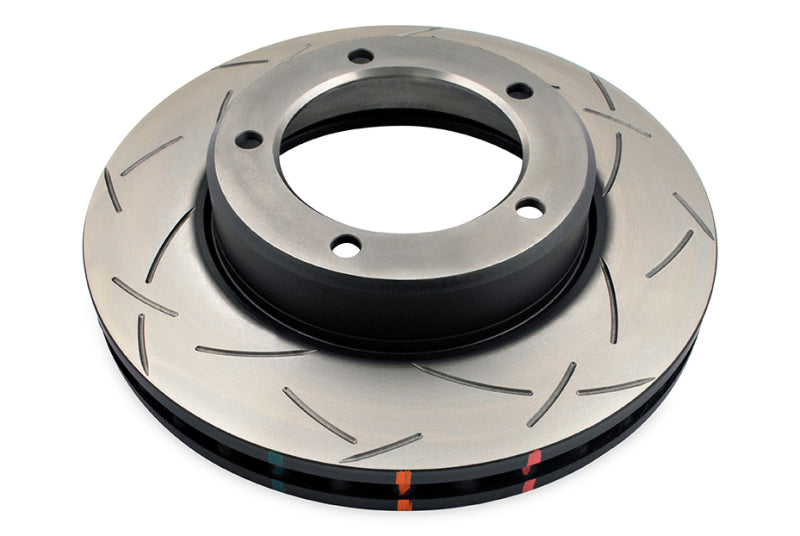

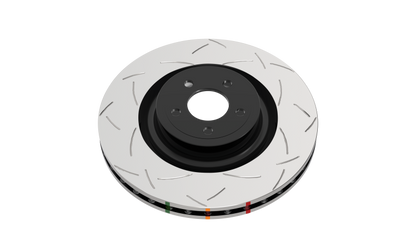

DBA 4788S 4000 T3 Slotted Front Rotor for 98-07 Toyota Land Cruiser/LX470

Vehicle Fitment

• 1998-2007 Toyota Land Cruiser 100 Series (Front, 4WD, Various engines)
• 1998-2005 Lexus LX470 (Front, 4WD, 4.7L V8)

Features

• DBA 4000 Series T3 tri-symmetrical slotted rotor design for improved brake pad bite
• Kangaroo Paw ventilation with 144 internal pillars for enhanced cooling efficiency
• High carbon alloyed iron construction for strength and reduced heat warping
• Thermal Stability Profiling (TSP) for resistance to repeated heavy braking heat stress
• Thermo-graphic heat paint marks for visual temperature monitoring
• Symmetrical slot pattern allows universal left/right use
• Anti-rust coating on non-friction surfaces for corrosion protection
• Direct bolt-on replacement for OEM front brake rotors

Specifications

• Position: Front axle
• Material: High carbon alloyed iron
• Rotor Diameter: 312 mm
• Nominal Thickness: 32 mm
• Minimum Thickness: 30 mm
• Overall Height: 71 mm
• Hole Count: 5 lug pattern
• Center Bore Diameter: 115 mm

Included Components

• 1x DBA 4000 Series T3 Slotted Front Brake Rotor (DBA4788S)

Product Description

The DBA 4788S 4000 Series T3 Slotted Front Brake Rotor is a high-performance direct replacement rotor engineered for 1998-2007 Toyota Land Cruiser 100 Series vehicles and 1998-2005 Lexus LX470 SUVs. Designed with DBA's advanced T3 tri-symmetrical slot pattern and Kangaroo Paw ventilation system, this rotor maximizes brake pad contact and efficiently evacuates heat, brake dust, and gases, resulting in improved stopping performance and consistent pedal feel during heavy use such as towing, off-road driving, or daily aggressive driving.

Constructed from high carbon alloyed iron and processed through DBA's Thermal Stability Profiling (TSP) heat treatment, the DBA4788S rotor resists thermal distortion and maintains strength under repeated hard braking. Thermo-graphic paint markings provide a visual indication of operating temperatures to help you monitor brake system stress over time. Sold individually, this front rotor installs as a direct bolt-on replacement for compatible Toyota and Lexus models and pairs well with performance brake pads for enhanced street and off-road braking performance.
