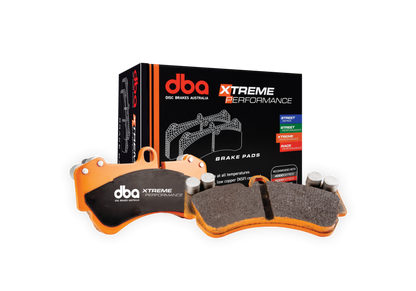

DBA DB1199XP XP Front Brake Pads for 1993-1997 Toyota Land Cruiser/Lexus LX450

Vehicle Fitment

• 1993-1997 Toyota Land Cruiser 80 Series (FJ80 4.5L I6, FZJ80 4.5L I6, HZJ80 4.2L Diesel, HDJ80 4.2L Diesel), 4WD
• 1996-1997 Lexus LX 450 (4.5L I6), 4WD

Fitment Notes

• Replaces DBA part number DB1199 - DB1199XP is the current Xtreme Performance upgrade of the same pad shape
• Front axle application only - 1 kit (4 pads) required per front axle set
• Compatible with DBA T2, T3, X, and XS performance front rotors for the 80 Series platform
• Best paired with DBA T3 slotted 4000 Series or 5000 Series rotors for maximum braking performance
• Wear sensors are not included with this pad set
• Ideal for stock or lifted Land Cruisers running oversized tires or used for heavy towing

Features

• Xtreme Performance (XP) semi-metallic carbon-fibre compound delivers high initial bite from cold, with consistent friction output maintained all the way to 550°C (1,022°F)
• G-G Class friction rating with an average coefficient of friction of 0.45 across the full operating temperature range - from low street temps to sustained heavy braking
• Copper-free ceramic technology reduces brake dust and environmental impact, with no heavy metals harmful to waterways or marine life
• Thermal Stability Profiling (TSP) - a DBA-exclusive process - improves cold friction effectiveness and significantly shortens the pad bedding-in period
• All friction surfaces factory scorched prior to dispatch to pre-condition the compound and minimise the risk of green fade with new pads
• Application-specific centre slot facilitates continuous heat dissipation and temperature stability under sustained braking loads
• High-quality steel backing plates resist flex, heat deformation, and long-term wear under heavy-duty 4WD braking conditions
• European-made multi-layer shims included to suppress brake noise, vibration, and harshness across all operating conditions

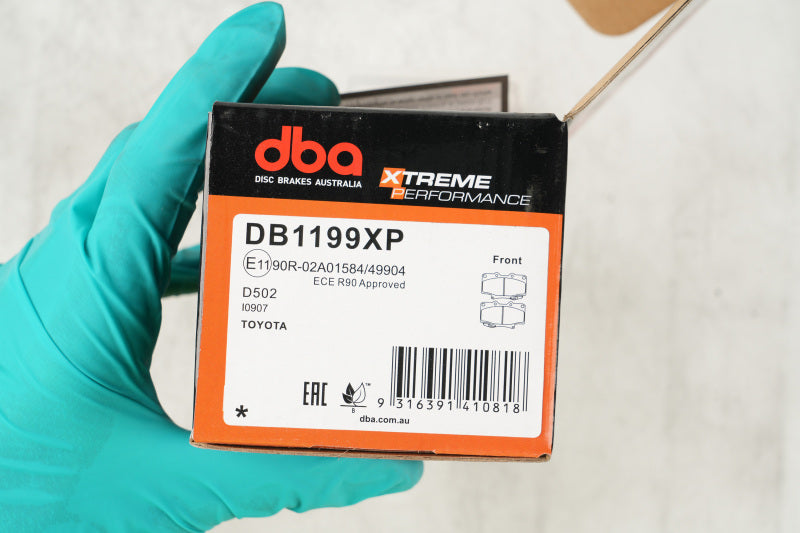

• ECE-R90 certified - meets international braking safety and performance standards

Specifications

• Position: Front Axle
• Pad Quantity: 4 (1 set per front axle)

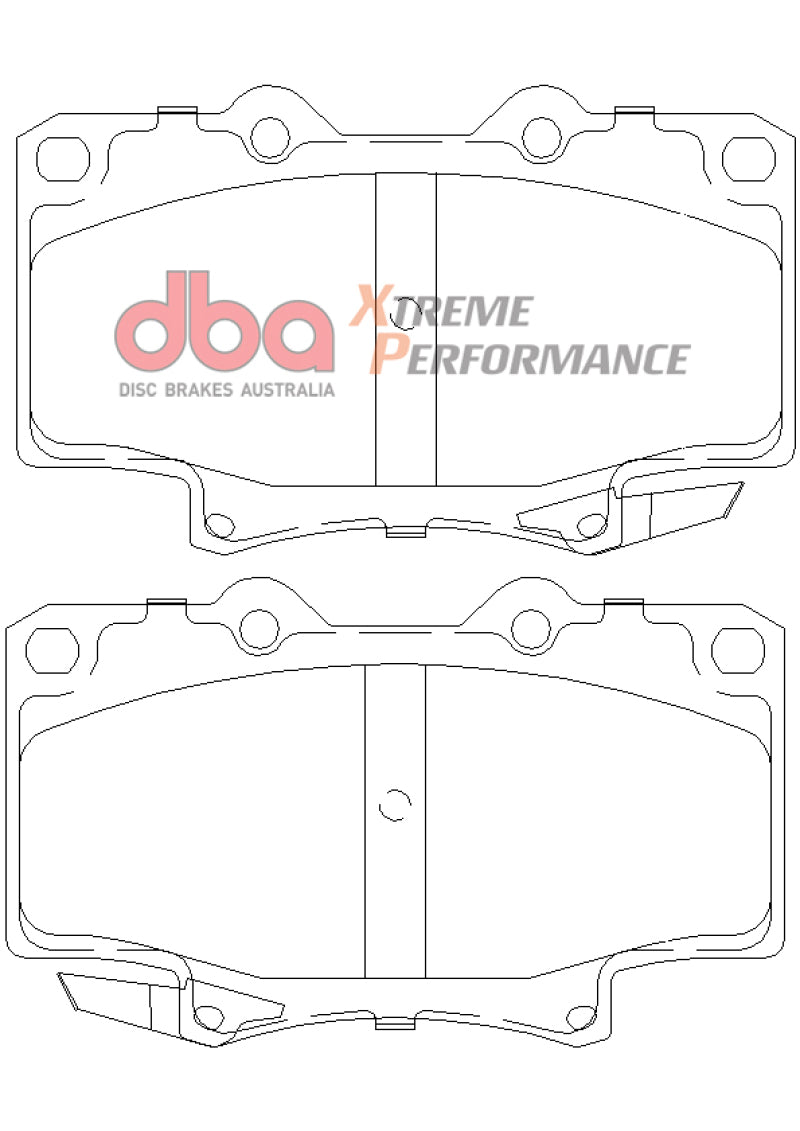

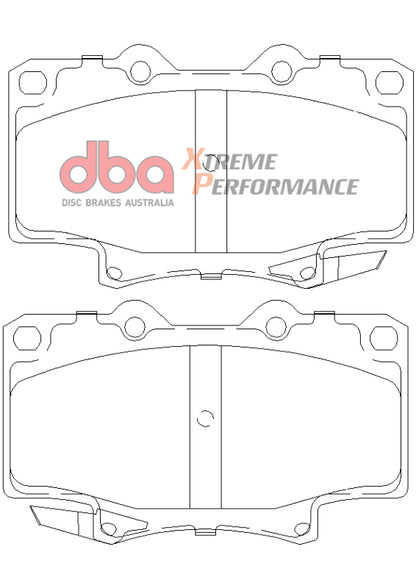

• Inner Pad Dimensions: 119.3mm (W) x 71.9mm (H) x 15mm (Thickness)
• Outer Pad Dimensions: 119.3mm (W) x 71.9mm (H) x 15mm (Thickness)
• Friction Material: Semi-Metallic Carbon Fibre
• Friction Class: G-G (0.45 average mu)
• Maximum Operating Temperature: 550°C (1,022°F)
• Slotted: Yes (temperature stability slot)
• Pad Shims Included: Yes
• ECE-R90 Certified: Yes
• Wear Sensor: Not included
• Replaces: DB1199

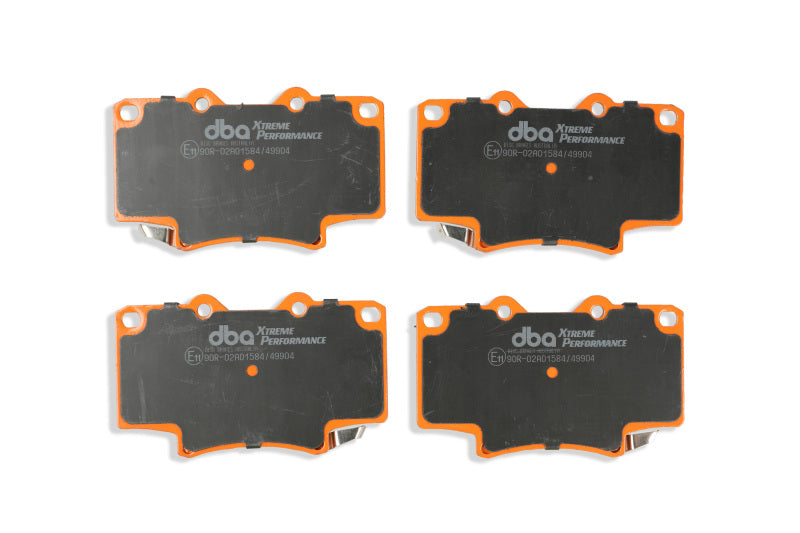

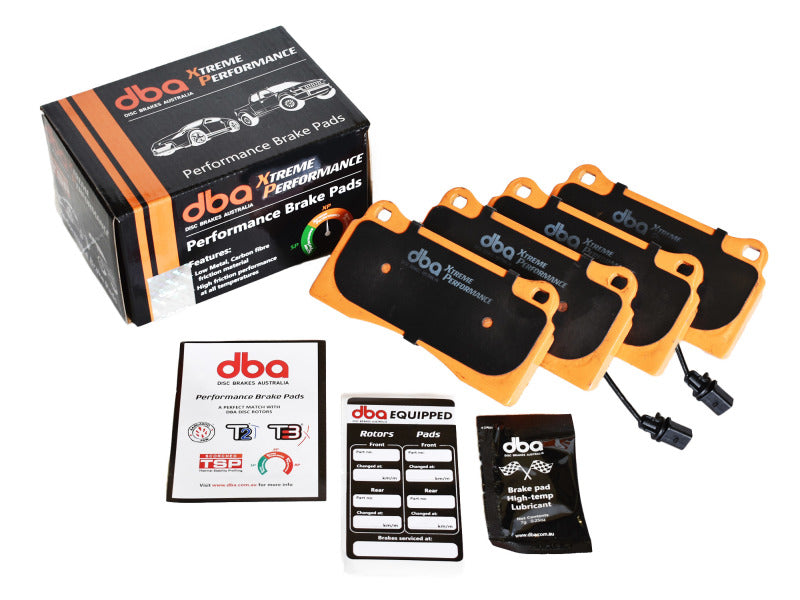

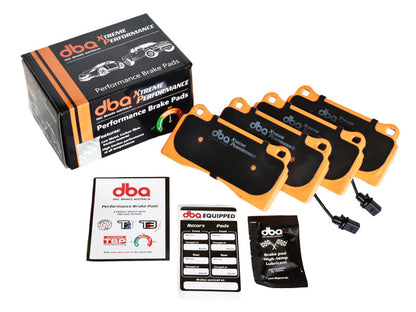

Included Components

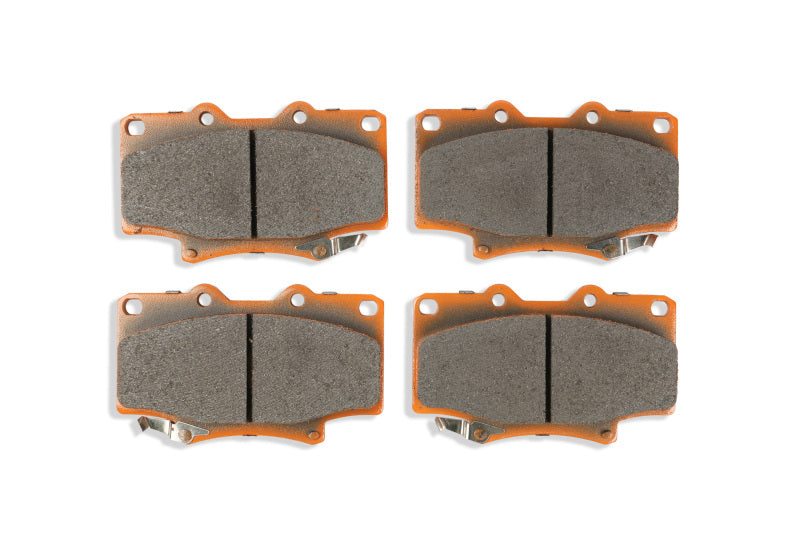

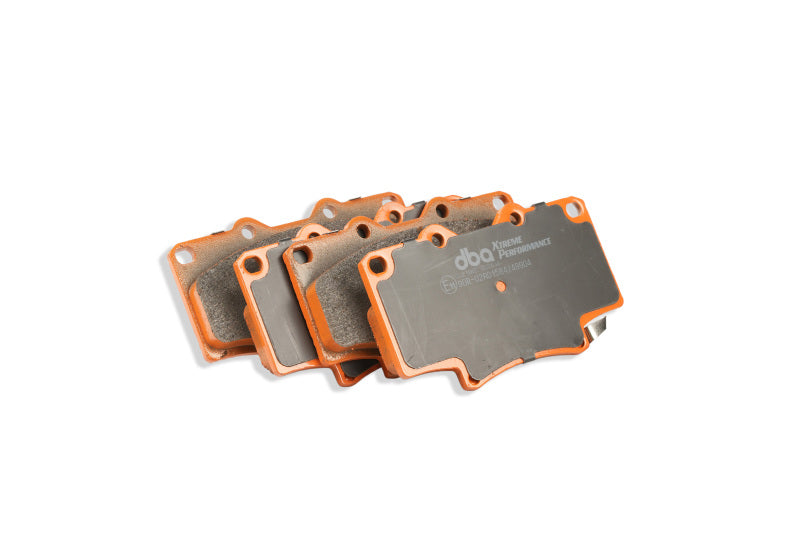

• 2x Front Inner Brake Pads
• 2x Front Outer Brake Pads
• 4x Multi-layer noise-dampening shims (factory fitted to pads)

Product Description

The DBA DB1199XP is a front axle Xtreme Performance brake pad set engineered specifically for the Toyota Land Cruiser 80 Series (1993-1997) and Lexus LX 450 (1996-1997) - one of the most respected 4WD platforms ever produced. Whether your 80 Series is a daily driver, a fully loaded touring rig, a towing vehicle, or running oversized tyres off-road, the DB1199XP delivers the kind of high-initial-bite, high-temperature braking performance that stock OE pads simply cannot match. The XP compound is rated to an operating ceiling of 550°C (1,022°F) with a G-G class friction rating and an average mu of 0.45, meaning braking performance remains consistent and predictable whether the pads are cold or fully heat-soaked under sustained mountain or loaded downhill driving.

DBA's Thermal Stability Profiling (TSP) process ensures the compound reaches its working friction level quickly from cold, dramatically reducing the period of reduced performance that new pads normally exhibit. The factory-scorched friction surface further shortens this bedding window, meaning the DB1199XP is ready to deliver strong, fade-resistant braking almost immediately after installation. The copper-free ceramic formulation keeps dust levels low, protects wheel finishes, and meets modern environmental standards. Each pad arrives with multi-layer noise-dampening shims factory-fitted, an application-specific temperature-stability slot machined into the friction surface, and steel backing plates that resist heat deformation even under repeated heavy stops.

The DB1199XP is the current production replacement for the discontinued DBA DB1199, sharing the same pad geometry (119.3mm x 71.9mm x 15mm, inner and outer). For the best possible braking system upgrade on the 80 Series platform, DBA recommends pairing this pad set with their T3 slotted 4000 Series or 5000 Series front rotors. This pad is also confirmed compatible with T2, X, and XS rotor variants. One set of four pads covers a complete front axle replacement. Note that wear sensors are not included. The DB1199XP is ECE-R90 certified, confirming it meets international safety and performance benchmarks for replacement brake pads.
