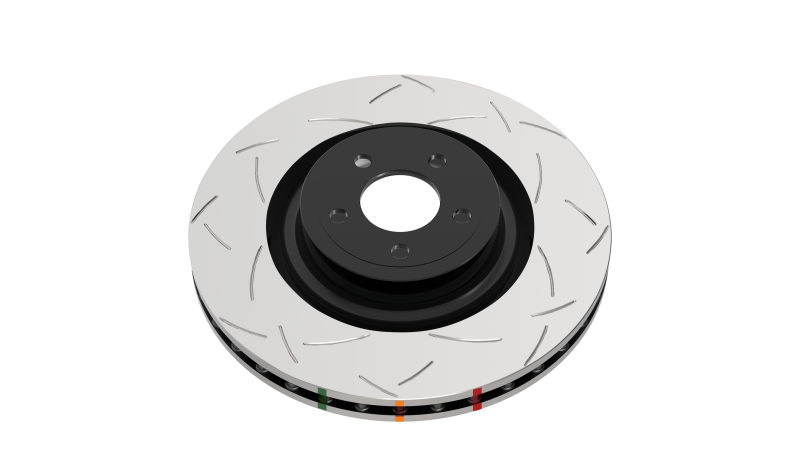

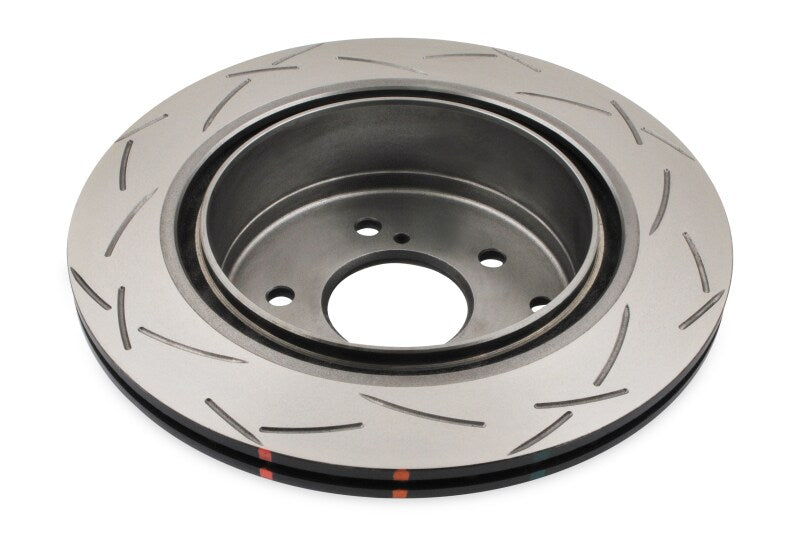

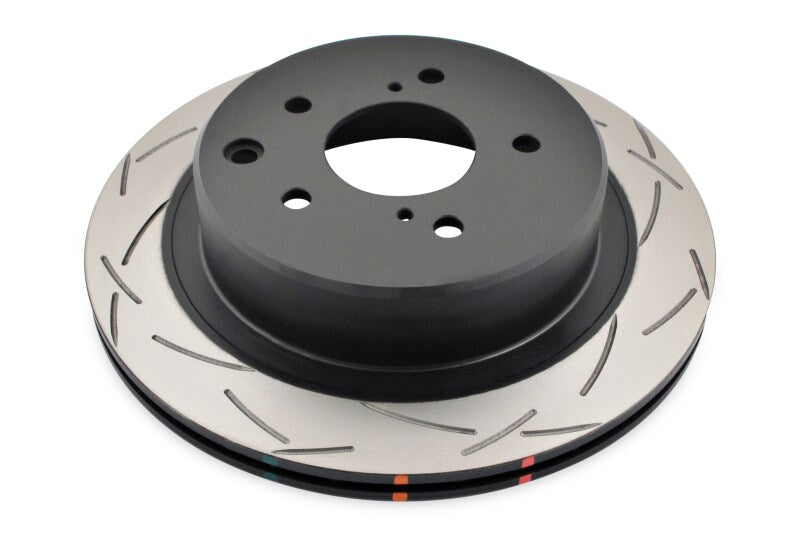

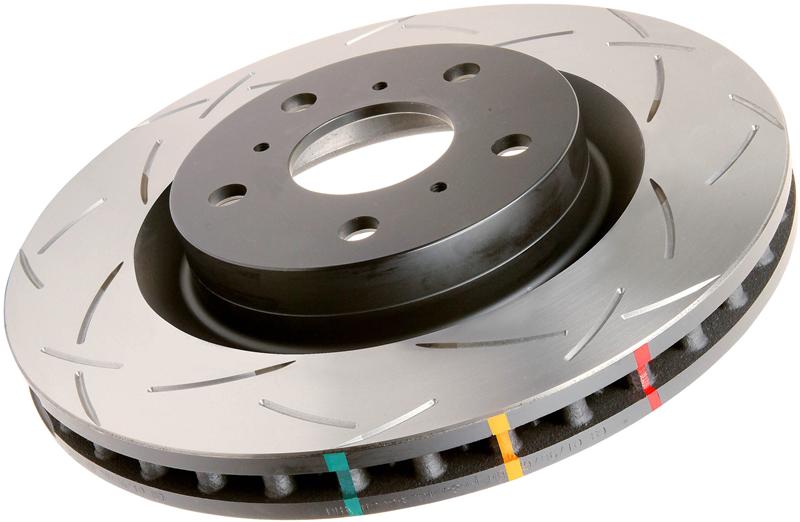

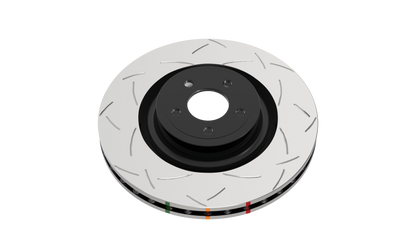

DBA 4908S 4000 Series T3 Slotted Rear Rotor for Nissan 300ZX/Skyline R32/R33/R34

Vehicle Fitment

• 1989-1993 Nissan Skyline R32 GT-R (BNR32) - RB26DETT 2.6L Twin Turbo I6
• 1989-1993 Nissan Skyline R32 GTS-T (HCR32) - RB20DET 2.0L Turbo I6
• 1989-1993 Nissan Skyline R32 GTS-4 (HNR32) - RB20DET 2.0L Turbo I6
• 1993-1998 Nissan Skyline R33 GTS25t (ECR33) - RB25DET 2.5L Turbo I6
• 1998-2002 Nissan Skyline R34 25GT-T (ER34) - RB25DET 2.5L Turbo I6
• 1998-2002 Nissan Skyline R34 25GT (ER34) - RB25DE 2.5L I6
• 1990-1996 Nissan 300ZX Twin Turbo (Z32) - VG30DETT 3.0L Twin Turbo V6
• 1990-1996 Nissan 300ZX NA (Z32) - VG30DE 3.0L V6

Fitment Notes

• Fits all R32 Skyline rear calipers including GT-R, GTS-T, and GTS-4
• Fits R33 GTS25t and R34 GT/GT-T rear calipers (non-GT-R)
• Does NOT fit R33/R34 GT-R (BCNR33/BNR34) rear calipers; see DBA 4929S
• Fits all Z32 300ZX models (turbo and non-turbo)
• Matching front rotors by application:
• -- R32 GT-R (non-Brembo): DBA 4926S (296mm x 32mm)
• -- R32 GT-R V-Spec (Brembo): DBA 4928S (324mm)
• -- R32 GTS-T / GTS-4 / Z32 300ZX: DBA 4909S (280mm x 30mm)
• -- R34 GT / GT-T: DBA 42304S (310mm x 30mm)
• Uni-directional T3 slot pattern; not side-specific
• Sold individually; two required per axle
• Bolt pattern: 5x114.3mm

Features

• DBA 4000 Series T3 uni-directional slotted design
• XG150 high-carbon alloyed iron construction
• Thermal Stability Profiling (TSP) heat treatment
• Patented Kangaroo Paw ventilation (144 diamond/teardrop pillars)
• Up to 30% increase in vane surface area vs. straight vane
• Up to 20% improvement in cooling efficiency vs. straight vane
• CNC-machined tri-symmetrical T3 slots for quiet, responsive pedal feel
• Thermal Graphic Heat Paint (TGHP) for temperature monitoring
• Painted non-friction surfaces for corrosion protection

Specifications

• Part Number: 4908S
• Product Line: DBA 4000 Series T3
• Type: Slotted 1-Piece Replacement Brake Rotor
• Position: Rear
• Rotor Diameter: 297mm (11.69")
• Rotor Thickness: 18mm
• Minimum Thickness: 16mm
• Hat Height: 63mm
• Center Bore: 68mm
• Bolt Pattern: 5x114.3mm
• Rotor Type: Vented
• Quantity: Sold Individually

Included Components

• One (1) DBA 4000 Series T3 slotted rear brake rotor

Product Description

The DBA 4908S is a 4000 Series T3 slotted rear brake rotor engineered for the Nissan Skyline R32, R33 GTS25t, R34 GT/GT-T, and 300ZX Z32 platforms. Cast from DBA's proprietary XG150 high-carbon alloyed iron and heat treated through Thermal Stability Profiling, this rotor handles extreme braking temperatures without fade or distortion. The patented Kangaroo Paw internal ventilation system uses 144 diamond and teardrop-shaped pillars to increase cooling vane surface area by up to 30% and improve airflow efficiency by up to 20% over conventional straight vane designs. DBA's CNC-machined tri-symmetrical T3 slot pattern provides multiple exit points for brake dust and gases, delivering quieter operation, smoother pedal feel, and consistent pad contact under all driving conditions. Thermal Graphic Heat Paint on the rotor face changes color at specific temperature thresholds to help monitor braking temperatures. A direct bolt-on replacement for the factory rear rotor with no modifications required. Sold individually.
